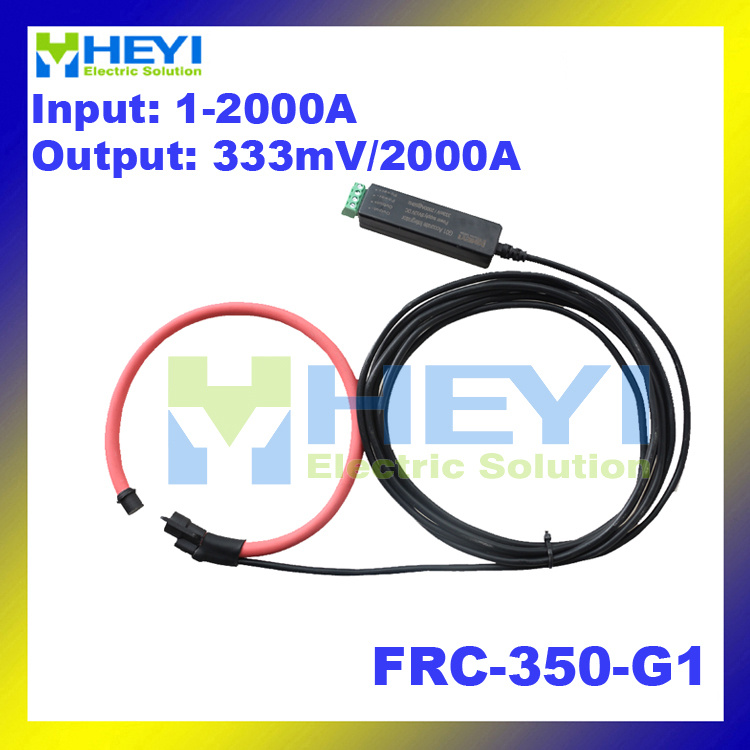

| Prod Model: |
FRC-350-G1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rpgpwski Coil Model: |
Frc-350-G1 |
| Integrator Model: |
G1(Miniature, Transfer to 333mv) |
| Input Current Range: |
1-2000A |
| Output: |
333mv |
| Other Output: |
Could Make 1-3V Output |
| Inner Diameter: |
100mm |
| Perimeter: |
350mm |
| Accuracy: |
1.0 |
| Phase Shift: |
90 Degrees |
| Could Be Customize: |
Yes |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

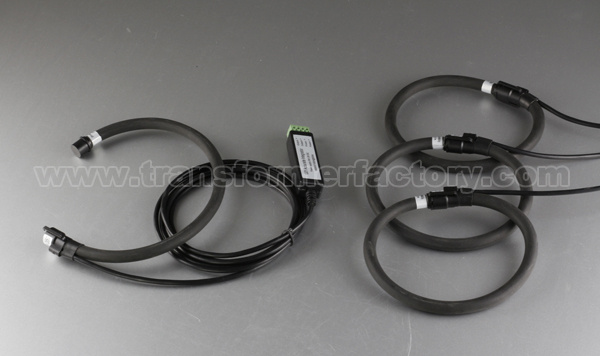

Clamp-on Flexible Rogowski coil Current Transformer is an AC current transducer for permanent installation. They combine the benefits of a thin, flexible, clip-around Rogowski (sense) coil with a signal conditioner providing accurate, true rms measurement, of voltage or current.
Features:1) AC current probe utility by the Rogowski principle
2) Flexible and lightweight
3) Coil length from 20cm to 100cm
4) Suitable to measure currents from mA to 100kA
5) Easy & quick installation in uninterruptible power line
6) Simple to install in applications where space is limited
7) The size of the Rogowski coil can be specified independently of the primary current
8) Does not suffer from magnetic saturation
Applications:1) Very high current monitoring
2) DC ripple measurement
3) Harmonics and transients monitoring
4) Power monitoring & control systems
5) Applicable in eletronic Watt-hour meter
6) Power quality monitoring
7) Electric furnace
8) Harmonic management
9) Relay Protection
Specification:| Rogowski coil Model | FRC-210 | FRC-350 | FRC-420 | FRC-510 | FRC-600 | FRC-800 |
| Integrator Model | G1 | G1 | G1 | G1 | G1 | G1 |
| Current Range | 1-1000A | 1-2000A | 1-3000A | 1-4000A | 1-5000A | 1-10000A |
| Output Voltage | 333mV | 333mV | 333mV | 333mV | 333mV | 333mV |
| Accuracy | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Phase Shift | 90 degree | 90 degree | 90 degree | 90 degree | 90 degree | 90 degree |
| Frequency Range | 10Hz to 10MHz | 10Hz to 10MHz | 10Hz to 10MHz | 10Hz to 10MHz | 10Hz to 10MHz | 10Hz to 10MHz |
| Bandwidth (-3dB) | 2Hz to 100kHz | 2Hz to 100kHz | 2Hz to 100kHz | 2Hz to 100kHz | 2Hz to 100kHz | 2Hz to 100kHz |
| Operating temperature | -20ºC to 70ºC | -20ºC to 70ºC | -20ºC to 70ºC | -20ºC to 70ºC | -20ºC to 70ºC | -20ºC to 70ºC |

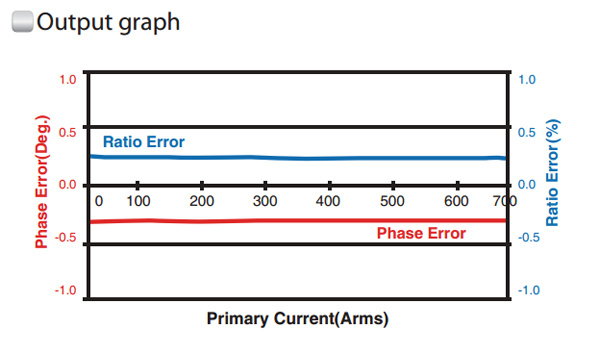

Output graph:
Custom Design:1.Coil size design;
2.Coil Thickness design;
3.Color optional;
4.Output voltage design;How to Order? 1. Please let us know what kind of model, color, poles and rated current etc.
2. Proforma invoice (PI) will be sent to you.
3. Please check and confirm the PI.
4. Once we confirmed the order, please pay it soon.
5. After full payment, all goods will be sent to you in 3-5 days as usual.
6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders.
Shipping: 1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door).
2. We Provide Drop shipping Service.
3. 5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products.
4. In order to ensure you receive your order tax free upon import, we declare lower value.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.
Payment: 1. We accept Western Union and T/T
2.30% deposit and 70% before shipping
3. No payment collection. We only can deliver goods after getting full payment.
Warranty: 1. We provide 1 year warranty.
2. If the product is defective, please notify us within 3 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Our Commitment: BETTER PRICE than other suppliers for you because of Factory Direct Sale;
BETTER QUALITY than before caused by our 10+ years experience about CT;
STOCK IN TRADE awlays own to our Fast & Professional production line;
FAST DELIVERY as awlays made by our GROUP's Enthusiam;
TIMING REPLY in 24 hours all about our TEAM's Passion & Patience.
Contact us:Send your Inquiry Details in the Below, Click "Send" Now!YOUR BENEFITS IS OUR BUSINESS!!!
We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on
1. Who we are
Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer
Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss
2 why choose us
We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.
3 Heyi Mission, vision values
Heyi mission is to provide reliable, accurate and customized current transformer solution
Heyi vision is leading global split core CT manufacture and energy solution provider
Values Enthusiastic by our work, we offer a quality personal and close service to our customers
Some products have been approved by CE and IEC certificates.
