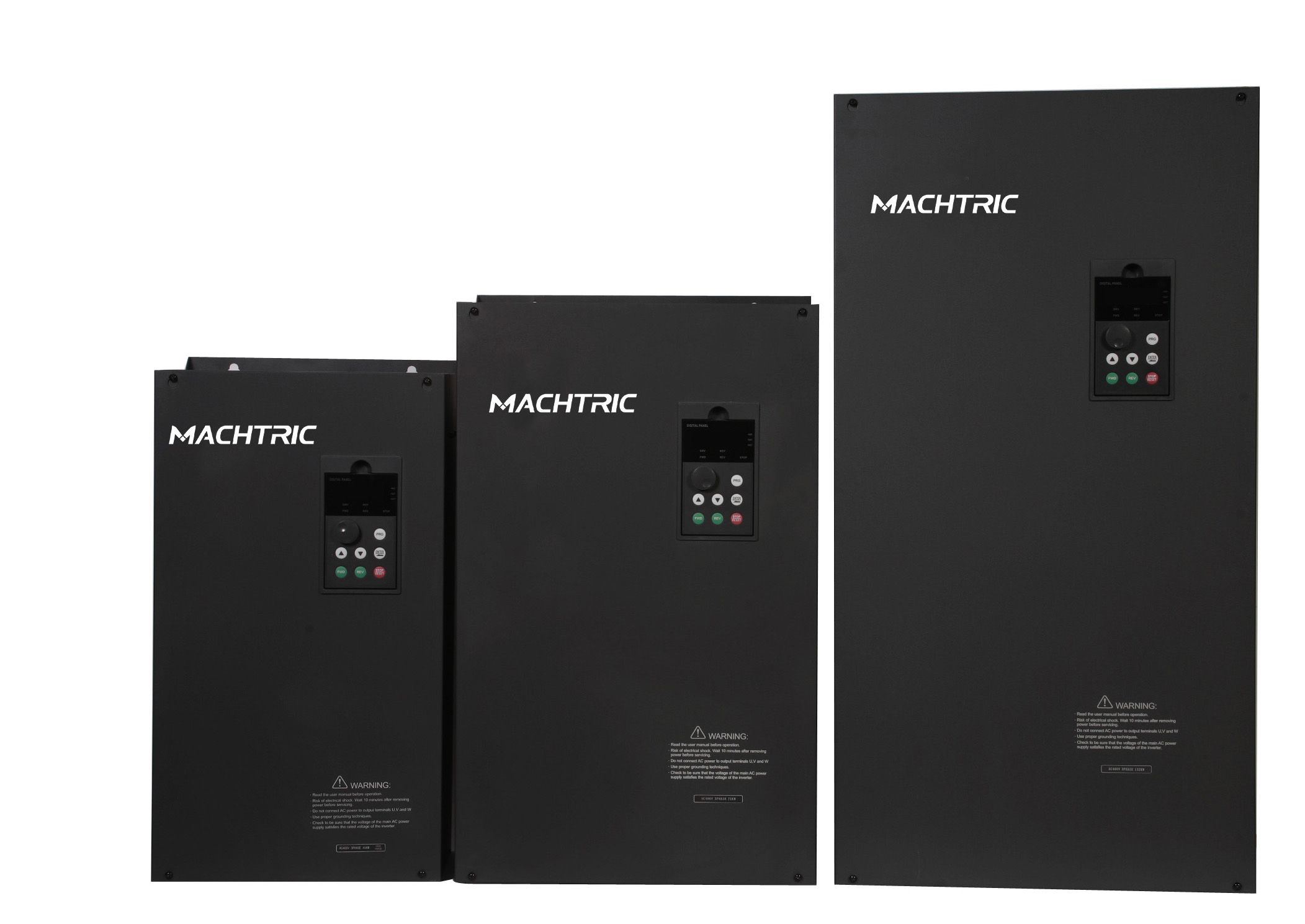

Close Loop Vector Control AC Drive S3800e

Name: Close Loop Vector Control AC Drive S3800e
Brand: all-electronics-online.com
SKU: 767037635
Availability: InStock
Rating: 4.8 (70 reviews)

Price:	US $ 125-269/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T,D/P,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	S3800E
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Different Size
Color:	Black
Output Frequency:	50/60Hz
Application Including:	Elevator, Extruder, Mill
Power:	20HP/15kw
Accessory:	Pg Card Available
Model Number:	S3800e
Application:	High Frequency Converter Transducer
Main Circuit Type:	Current
Switch Mode:	Close Loop Vector Control
Principle Of Work:	AC-DC-AC
Brand:	Machtric
Output Type:	Tripe Phase

Product Description

Welcome to Machtric Automation Equipment !

Specification S3800E

S3800E Series Closed Loop Vector Control

High Performance : Control of asynchronous motor and synchronous motor are implemented through the high performance current vector control technology .

Overload capacity 60s for 150%of the rated current ,3s for 180%(120%) of the rated current .

Ramp mode : Straight-line ramp;S-curve ramp;Four groups of acceleration/deceleration time with the range of 0.0-6500.0s

Item		S3800E
Based functions	Control mode	V/F(Voltage/Frequency) control
		Sensorless flux vector control (VC)
		Closed-loop vector control (CVC)
	Maximum frequency	Vector control: 0-320 Hz
	Maximum frequency	V/F control: 0-3200Hz
	Carrier frequency	1.0-16.0 kHz
	Carrier frequency	The carrier frequency is automatically adjusted based on the load features.
	Input frequency esolution	Dgital setting: 0.01 Hz
	Input frequency esolution	Analog setting: 0.025% of maximum frequency
	Startup torque	G type: 0.5 Hz/150% (VC); 0 Hz/180% (CVC)
	Startup torque	P type: 0.5 Hz/100%
	Speed range	1:100 (VC)
	Speed range	1:1000 (CVC)
	Speed stability accuracy	± 0.2% (VC)
	Speed stability accuracy	± 0.02% (CVC)
	Torque control accuracy	± 5% (CVC)
	Overload capacity	G type: 60s for 150% of the rated current, 3s for 180% of the rated current.
	Overload capacity	P type: 60s for 120% of the rated current, 3s for 150% of the rated current.
	Torque boost	Auto boost
	Torque boost	Customized boost 0.1%-30.0%
	V/F curve	Line V/F curve
		Multi-point V/F curve
		N-power V/F curve (1.2-power, 1.4-power, 1.6-power,1.8-power, square)
	V/F separation	two types: complete separation; half separation
	Ramp mode	Straight-line ramp
		S-curve ramp
		Four groups of acceleration/deceleration time with the range of 0.0-6500.0s
	DC braking	DC braking frequency: 0.00 Hz to maximum frequency
		Braking time: 0.0-100.0s
		Braking action current value: 0.0%-100.0%
	JOG control	JOG frequency range: 0.00-50.00 Hz
	JOG control	JOG acceleration/deceleration time: 0.0-6500.0s
	Onboard multiple preset speeds	It implements up to 16 speeds via the simple PLC function or combination of terminal states
	Onboard PID	It realizes process-controlled closed loop control system easily.
	Auto voltage	It can keep constant output voltage automatically when the mains voltage changes.
	regulation (AVR)
	Overvoltage/ Overcurrent stall control	The current and voltage are limited automatically during the running process so as to avoid frequent tripping due to overvoltage/over current.
	Torque limit and control	It can limit the torque automatically and prevent frequent over current tripping during the running process.Torque control can be implemented in the CVC mode.
Individualized functions	Support for multiple PG card	Support for rotating transformer PG card,differential input PG card, UVW differential input PG card, resolver PG card and OC input PG card
	Power dip ride through	The load feedback energy compensates the voltage
		reduction so that the AC drive can continue to run for a
		short time.
	Rapid current limit	It helps to avoid frequent over current faults of the AC drive.
	High performance	Control of asynchronous motor and synchronous motor are
		implemented through the high-performance current vector
		control technology.
	Timing control	Time range: 0.0-6500.0 minutes
	Communication methods	MODBUS-RTU,PROFIBUS-DP,CAN
	Protection mode	Motor short-circuit detection at power-on, input/output
		phase loss protection, over current protection, overvoltage
		protection, under voltage protection, overheat protection and overload protection.
Input and output	Input terminal	8 digital input terminals, one of which supports up to
		100 kHz high-speed pulse input.
		2 analog input terminals, one of which only supports
		0-10 V voltage input and the other supports 0-10 V voltage input or 4-20 mA current input.
	Frequency source	Digital setting, analog voltage setting, analog current setting, pulse setting and serial communication port setting.
	Auxiliary frequency source	There are ten auxiliary frequency sources.It can implement
	Auxiliary frequency source	fine tuning of auxiliary frequency and frequency synthesis.
	Running command source	Operation panel/Control terminals/Serial communication port
		You can perform switchover between these sources in
		various ways.
	Output terminal	1 high-speed pulse output terminal (open-collector) that
		supports 0-100 kHz square wave signal output
		1 digital output terminal
		2 relay output terminal
		2 analog output terminal :that supports 0-20 mA current output or 0-10 V voltage output
operation on the operation panel	LED display	It displays the parameters.
	Key locking and	It can lock the keys partially or completely and define the
	function selection	function range of some keys so as to prevent mis-function.
	Optional parts	Rotating transformer PG card,differential input PG card, UVW differential input PG card, resolver PG card and OC input PG card
Environment	Installation location	Indoor, free from direct sunlight, dust, corrosive gas,
	Installation location	combustible gas, oil smoke, vapour, drip or salt.
	Altitude	Lower than 1000 m
	Ambient temperature	-10°C ~40°C (de-rated if the ambient temperature is
	Ambient temperature	between 40°C and 50°C)
	Humidity	Less than 95%RH, without condensing
	Vibration	Less than 5.9 m/s2 (0.6 g)
	Storage temperature	-20°C~60°C
