Jaye Industry Co., Ltd. >> Closestool Heater Aluminum Foil Heating Element with Self-Adhevise

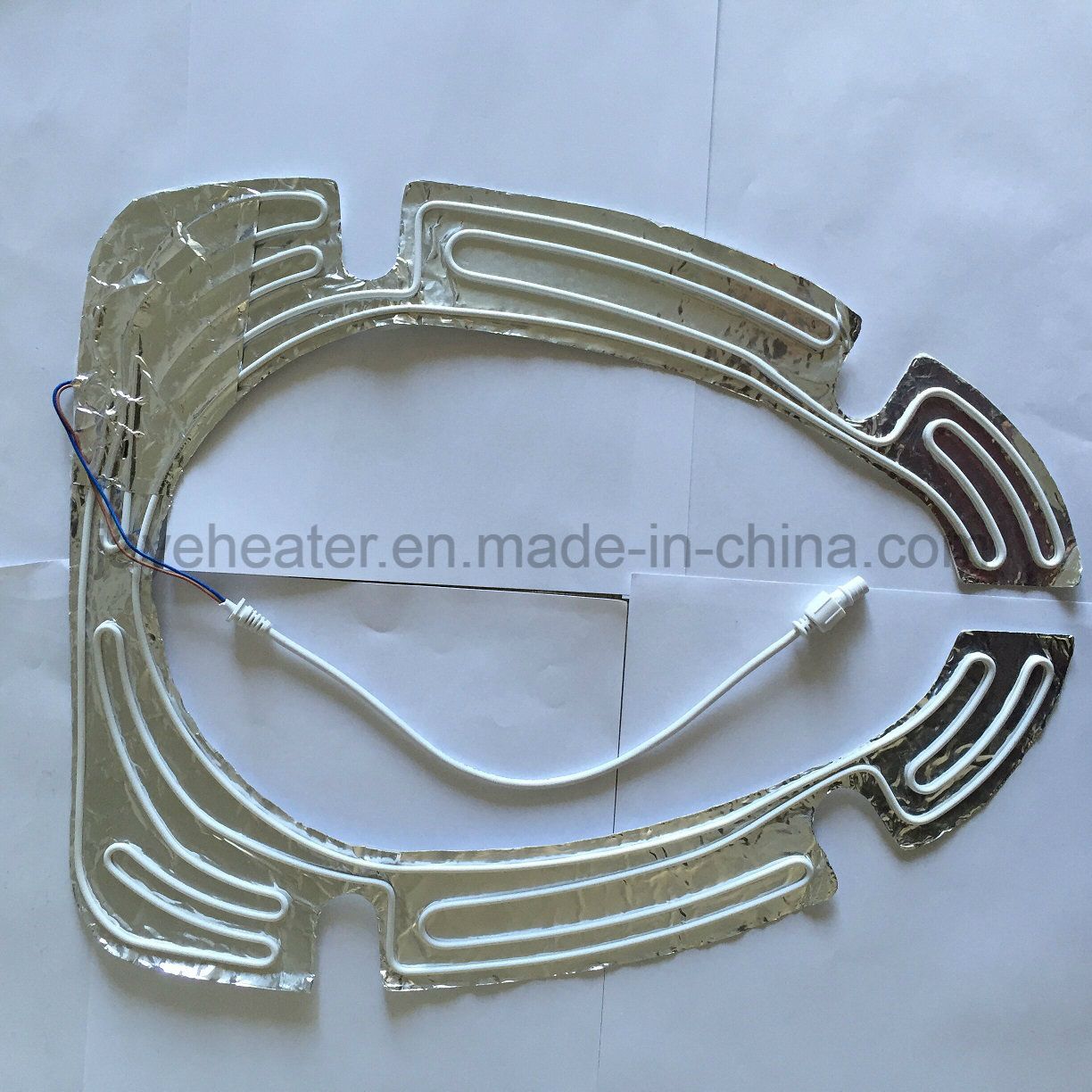

Closestool Heater Aluminum Foil Heating Element with Self-Adhevise

Closestool Heater Aluminum Foil Heating Element with Self-Adhevise
Price: US $ 1-2/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Money Gram
Prod Model: JY-AFH005
Voltage: 12V to 240V
Watt: as Request

Product Description

Electric Aluminum Foil Heater

Product details:
Usagerefrigerator parts/defrost heater/al foil heater
Output Powerup to 2.5KW/m²
Warranty1year
Electrical insulation105°C PVC or Silicone rubber
DimensionAny dimension on request
VoltageAny voltage on request
Tolerances≤±5%
Surface temperature-30°C~110°C
Aluminium foil Heaters thickness1.5mm
Customized/OEMavailable
Note:
1. Temperature controller can be attached;
2. Available to Cut the hole in aluminum foil;
3. Earthing of the aluminum foil.

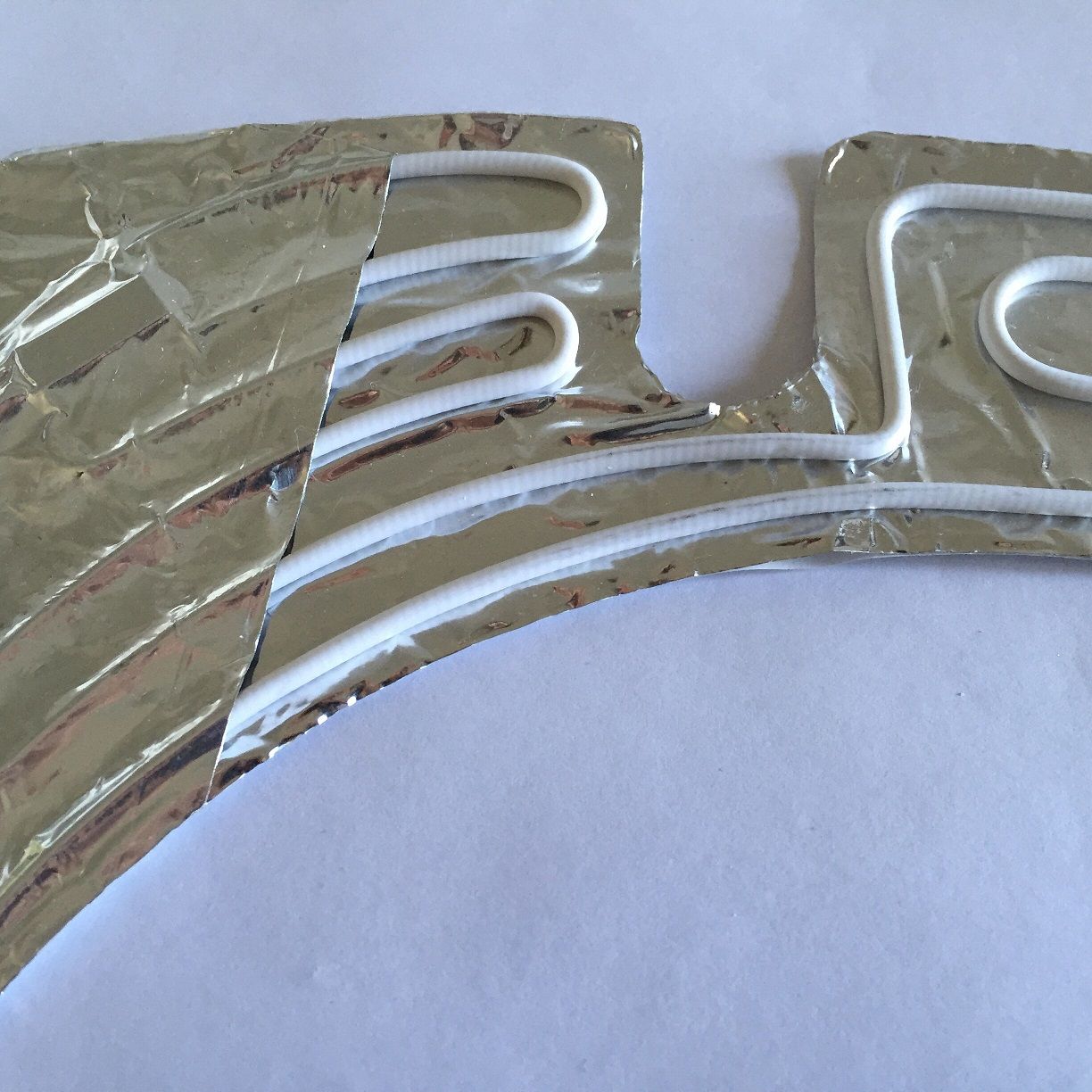

Configuration:                                                                                                                                                                                               The heating element can be high temperature PVC or silicone insulated heating cable.
This cable is placed between two aluminum sheets or Adhesive at one side only
The aluminum foil element has adhesive backing as standard for quick and easy fixing to  the area requiring temperature maintenance.
Cut outs in the materical are possible,allowing for perfect fitting to the part on which the element will be mounted.

Applications:
1. Defrost or freeze protection of refrigerator or ice box
2. Freeze protection of plate heat exchangers
3. Temperature maintenance of heated food counters in canteens
4. Anti-condensation of electronic or electric control boxes
5. Hermetic compressors heating
6. Anti-condensation of bathrooms mirrors
7. Anti-condensation of refrigerated display cabinets
8. Domestic appliances,medical...
9. Seeding, Flower or vesitable Cultivating








Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
