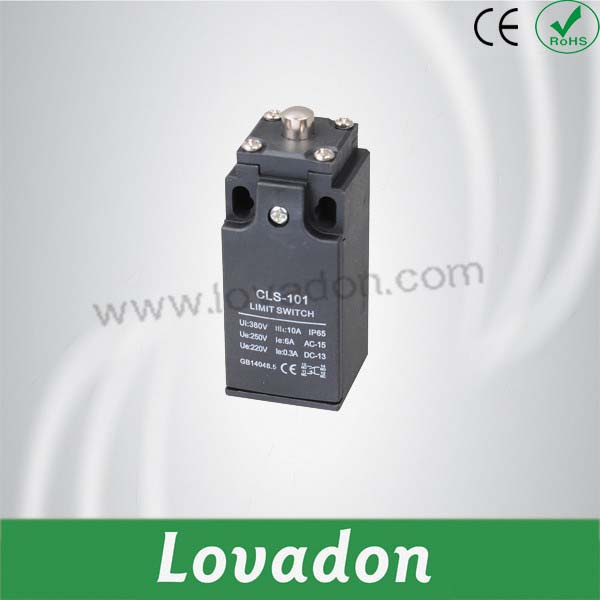

Cls-101 Economical & Plastic Type Limit Switch

Name: Cls-101 Economical & Plastic Type Limit Switch
Brand: all-electronics-online.com
SKU: 752754685
Availability: InStock
Rating: 4.9 (73 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CLS-101
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	Small-Sized
Breaking Capacity:	General Type
Breaking Form:	Multi Joint Type
Pressing Type:	Idler Wheel, Punch and Spring
Protection:	Waterproof, Dustproof
Application:	Widely Used
Brand:	Lovadon

Product Description

CLS Series Limit Switch
* Economical & plastic type.
* Stainless steel roller, punch and spring.
* Swing amplitude,extra large +-95°
* M20*1.5 cable gland that can be equipped.

Model	Operating force	Release force	Pre-travel	Tripping Position	Movement differential	Over travel	Total travel	Rotary indexing
CLS	OF(max.)	RF(min.)	Pt(max.)	Tp+-10%	Md(max.)	OT(min.)	TT(min.)
101	200g	200g	1.8mm	2.0mm	1.2mm	4.0mm	5.8mm
103	700g	200g	1.8mm	2.0mm	1.2mm	4.0mm	5.8mm
111	700g	200g	1.8mm	2.0mm	1.2mm	4.0mm	5.8mm
121	500g	100g	20°	22.5°	10°	75°	95°	22.5°
127	700g	200g	1.8mm	2.0mm	1.2mm	4.0mm	5.8mm
131	500g	100g	20°	22.5°	10°	75°	95°	22.5°
161	100g	40g	30mm	22.5°	14°	20mm	50mm
171	100g	40g	30mm	22.5°	14°	20mm	50mm
181	100g	40g	30mm	22.5°	14°	20mm	50mm
191	500g	100g	20°	22.5°	10°	75°	95°	22.5°

Characteristicw/ Application
Double Break Mechanism	INO+INC Force Break snap action
Rated Voltage/ Current	10(4)A,125,250VAC/6(2)A,380VAC For inductance Load,Cos Diameter=0.4
Contact Resistance	25mΩ max.(initial value)
Insultation Resistance	100mΩ min.(at 5000VDC)
Dielectric Strength	1000VAC,50/60 Hz for 1 minute between terminals of the same polarity
	1500VAC,50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
	1500VAC,50/60 Hz for 1 minute between each terminal and ground
Electrical Life	500,000 at 10A 250VAC Resistive
Mechanical Life	10,000,000 operations min.(under rated conditions)
Operating Speed	5mm/s to 0.5m/s
Degree of Protection	IP65
Ambient Temperature Rised	Max 30°C over ambient temperature at rated voltage/current
Conformed Standards	Cenelec EN 50041, EN 50047, IEC 337-1, VDE 0660
Operating Temperature	-5°C~+65°C(with no icing)
Storage Temperature	-5°C~+65°C(with no icing)
Ambient Operating Humdity	95% Rh Max.
Shock Resistance	Mechanical durable: 1000m/s^2 min.
Shock Resistance	Malfunction: 300m/s^2 min.
Vibration Frequency	Malfunction: 10 to 55 Hz 1.5 mm double amplitude
Terminal Screw Torsional Force	6-8 kgf-cm
Other Screw Torsional Force	Cover 12-14 kgf-cm/ Head 8-9 kgf-cm / Mounting 50-60 kgf/cm
Bare Wire Diameter	Diameter 2 Max.
Cable Diameter	Diameter 12 Max.
Note: Product with spring, its usable range of operating part is within one third of the whole spring length from the front end of spring.

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. If you are interested in any of our products, or wish to place a customized order, please contact us. We will do our best to meet your needs.

Yueqing Lovadon Electric Co., Ltd wsa founded in 2012, located in Liushi Chandong Industrial Zone where is near the national scenery area-Yandang Mountain. Our company covers an area of 500m² And has around 30 staff members. It has advanced automation equipment and testing equipment, with a number of high-education management team and staffs. The company speciallized in manufacturing low voltage and high voltage electrical product such as Circuit Breaker, Contactors, Distrubition Boxes, Automation products, Switches, Power source, Lightning arrester, Composite suspension insulator, and so on. Guaranteeing stable and timely supply, credible quality and sincere service, our products sell well in both domestic and overseas markets.
