Cm1705 Limited Micro Switch with High Quality

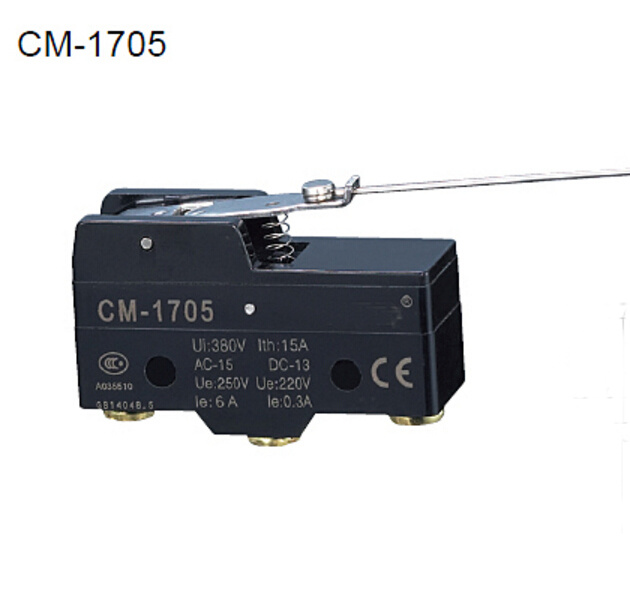

Name: Cm1705 Limited Micro Switch with High Quality
Brand: all-electronics-online.com
SKU: 799435205
Availability: InStock
Rating: 4.3 (65 reviews)

Price:	US $ 17/Piece
Min Order:	20/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CM1705
Protection:	Waterproof
Breaking Capacity:	Micro-Current
Brand:	Langir

Product Description

Features
Virous of actuators, action position is adjustable (such as CM1701)
High switch on and off capacity(15A)
High accuracy
Wide range of operation speed
Each type of CM series has solder terminal, screw terminal and tab terminal are selective
Add A for solder terminal, add C for tab terminal, blank for screw terminal

Ratings

Rated Voltage (V)	Noninductive Load (A)				Inductive Load (A)				Inrush Current
	Resistance Load		Lamp Load		Inductive Load		Motor Load
	NC	NO	NC	NO	NC	NO	NC	NO	NC	NO
125VAC 250VAC 500VAC	15 15 3		3 2.5 1.5	1.5 1.25 0.75	15 15 2.5		5 3 1.5	2.5 1.5 0.75	30 max.	15 max.
8VDC 14VDC 30VDC 125VDC 250VDC	15 15 6(2) 0.4 0.2		3 3 3 0.4 0.2	1.5 1.5 1.5 0.4 0.2	15 10 5 0.05 0.03		5 5 5 0.05 0.03	2.5 2.5 2.5 0.05 0.03

Characteristics

Operation speed	0.01mm-1m/sec
Operating frequency	Mechanical: 240 operations/min.
Operating frequency	Electrical: 20 operations/min.
Contact resistance	15mΩ max. (initial value)
Insulation resistance	100mΩ min. (at 500VDC)
Dielectric strength	1000VAC, 50/60HZ for 1 minute between terminals of the same polarity
	1500VAC, 50/60 HZ for 1 minute between currentcarrying and non-current-carrying metal parts
	1500VAC, 50/60 HZ for 1 minute between each terminal and ground
Vibration frequency	10-55HZ,1.5mm double amplitude
Shock	Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S)
Ambient temperature	General purpose type: -25ºC to +80ºC, Sealed type: -15ºC to +80ºC
Humidity	General purpose type: 85% RH max., Sealed type: 95% RH max.
Life	Mechanical: 20,000,000 operations min. Electrical: 500,000 operations min.
Weight	About 22g to 58g
Degree of protection	IP65

Operating characteristics

Models	CM1300	CM1301	CM1303	CM1305	CM1306	CM1307	CM1308	CM1309	CM1701
OF Max.	350g	300g	300g	350g	350g	350g	350g	350g	70g
RF Min.	114g	50g	50g	114g	114g	114g	114g	114g	14g
PT Max.	0.4mm	4mm	4mm	0.4mm	0.4mm	0.4mm	0.4mm	0.4mm	10mm
OT Min.	0.13mm	1.6mm	1.6mm	1.6mm	1.6mm	5.5mm	3.58mm	3.58mm	5.6mm
MD Max.	0.05mm	1.3mm	1.3mm	0.05mm	0.05mm	0.05mm	0.05mm	0.05mm	1.27mm
FP Max.		20.6mm	31.8mm						28.2mm
OP(mm)	15.9 ±0.4 mm	17.4 ±0.8 mm	28.6 ±0.8 mm	28.2 ±0.5 mm	21.5 ±0.5 mm	21.50. ±8 mm	33.4±1.2 mm	33.4±1.2 mm	19 ±0.8 mm

Models	CM1702	CM1703	CM1704	CM1705	CM1743
OF Max.	160g	100g	160g	10g	160g
RF Min.	28g	22g	42g	3g	42g
PT Max.	5mm	7.1mm	2.7mm	20mm	2.7mm
OT Min.	2mm	4mm	2.4mm	5.6mm	2.4mm
MD Max.	1mm	1.02mm	0.5mm	3mm	0.5mm
FP Max.	24.8mm	36.5mm	32.5mm		43.6mm
OP(mm)	19 ±0.4 mm	30.2 ±0.8 mm	30.2 ±0.4 mm	19±0.4 mm	43.1 ±0.8 mm

Definitions of operating characteristics:
OF: operating force
Force needed to add to the executer unit to actuate switch contact
RF: releasing force
Force needed to add to the execter unit to make the switch contact back to normal position
TF: total force
Force needed to make executer unit move from free position to limitation position
FP: free position
Primary position of executer unit without external force adding to executer unit
OP: operating position
The position of executer unit in case of the contact rapidly moving to the contact position for action
RP: releasing position
The position of executer unit in case of the contact rapidly backing to normal position to action contact position
TTP: total tavel position
The position of executer unit in case of executer unit reaching the limitation position
PT: pretravel
The distance or angle that the executer unit passes since free position to action position
OT: overtravel
The distance or angle that the executer unit surpasses action position
MD: movement differential
The distance or angle from action position to reversion position
TT: total tavel
The distance or angle represents the movement till action and the total movement after all actions.
