Yueqing Shuntong Imp. & Exp. Co., Ltd. >> Cm1l Series Moulded Case Circuit Breaker with Earth Leakage Protection ELCB

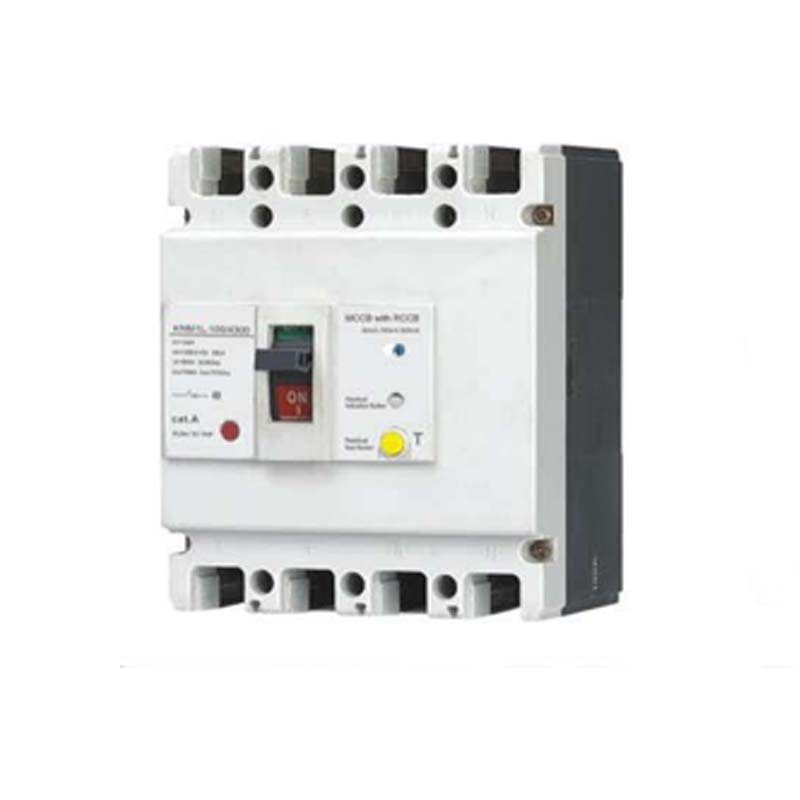

Cm1l Series Moulded Case Circuit Breaker with Earth Leakage Protection ELCB

Cm1l Series Moulded Case Circuit Breaker with Earth Leakage Protection ELCB
Price: US $ 10-500/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: CM1L
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Electric Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Air
Installation: Fixed
Structure: MCCB
Poles Number: 4
Certification: CCC

Product Description

CM1L series moulded case circuit break with residual current production. Rated insulation Voltage is 800V. It applies to circuit of AC 50Hz, rated working voltage 400V and rated working Current up to 630A, for infrequent switch over and infrequent start of motor. With overload,Short Circuit and under-voltage production,it can protect circuits and power-supply equipment from damage, can also be used for production from damage and any potential fire-hazard caused by long Existing earth fault which can not be detected byover-current production. The value of residual current is selectable.

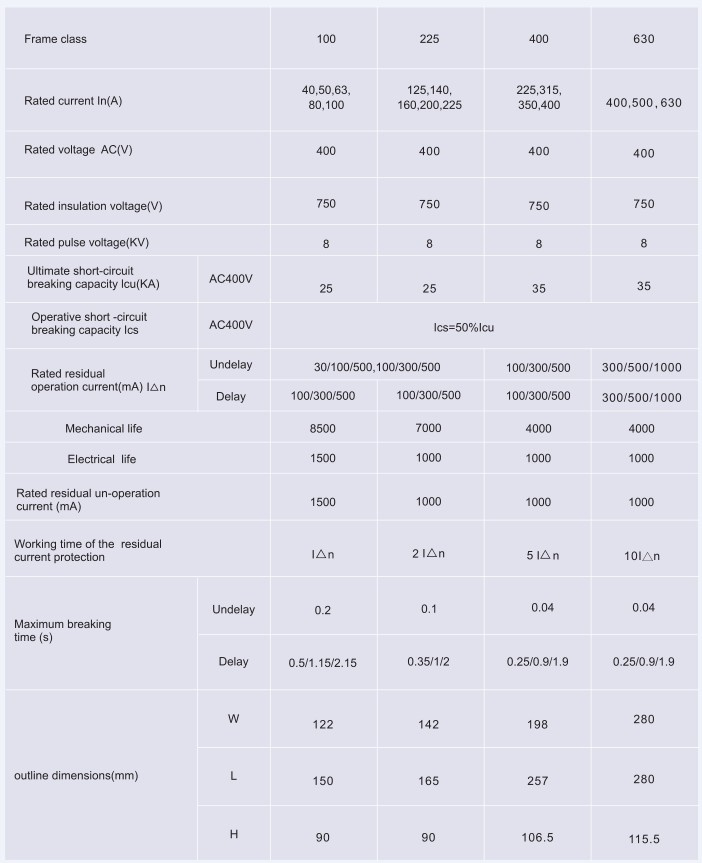

Technical parameter:
