Yueqing Winston Electric Co., Ltd. >> Cm20 Capacitance Proximity Switch with CE

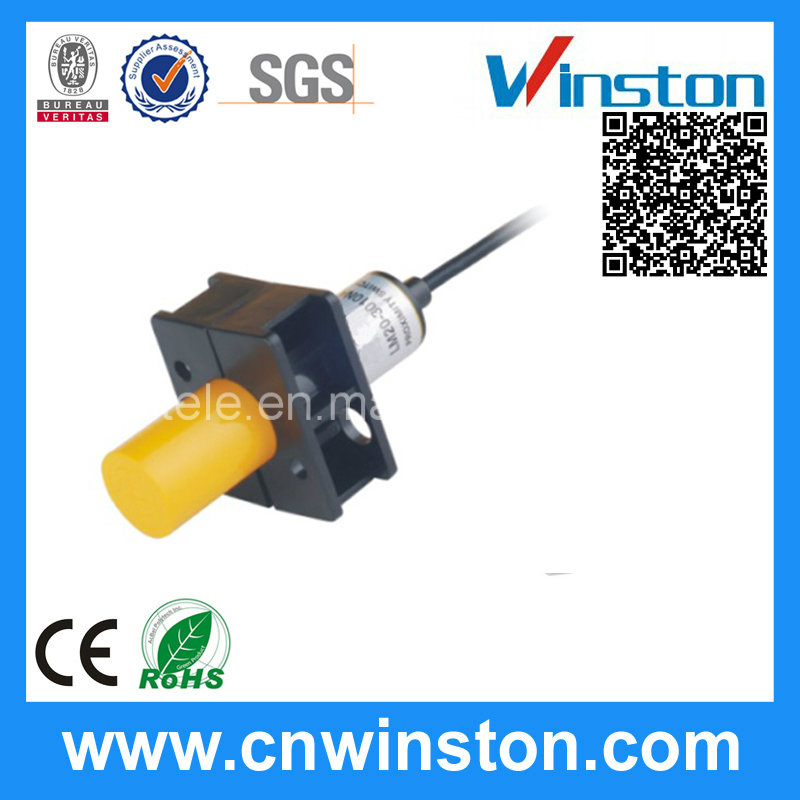

Cm20 Capacitance Proximity Switch with CE

Cm20 Capacitance Proximity Switch with CE
Price: US $ 5.5-7.04/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Prod Model: CM20
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe
Brand: Winston
Antistop: Proximity Switch
Workmanship: The Exquisite German Technology
Standard: Standard
Certification: CE
Type: Capacitance Proximity Switch
Wires: NPN PNP Two-Wires
Application: Location Detection

Product Description

Product Description:
CM20 Capacitance proximity switch

Compact volume
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life
Technique parameter:

Model explanation of proximity switch


1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)

2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)

3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)

4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)

5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)

6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)

7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;H: High temp resistance; R: Ring type)

Technical Parameters:


DETECTION DISTANCE


F
l
u
s
h


DC
6-
36
VDC




AC
90-
250
VAC

NPN

NO


NC


NO+NC


PNP

NO


NC


NO+NC


SCR
Control-
lable
silicon

NO


NC


DETECTION DISTANCE 0-10mm


F
l
u
s
h

DC
6-
36
VDC




AC
90-
250
VAC

NPN

NO

CM20-3010NA

NC

CM20-3010NB

NO+NC

CM20-3010NC

PNP

NO

CM20-3010PA

NC

CM20-3010PB

NO+NC

CM20-3010PC

SCR
Control-
lable
silicon

NO

CM20-2010A

NC

CM20-2010B

Detectable object'

conductor and dielectric body

Consumption current

DC<15mA,AC<10mA

Controloutput

DC:200mA,AC:300mA

Output voltagc drop DC/AC

DC<3V,AC<7V

DC/AC Response frequency

DC:50Hz,DC:10Hz

Shell material

ABS Resin

Working environment temperature

-25ºC~70ºC

Insulation resistance

50MΩ

Protection structure

IECstandard lp54

Altemative model at home and abroad

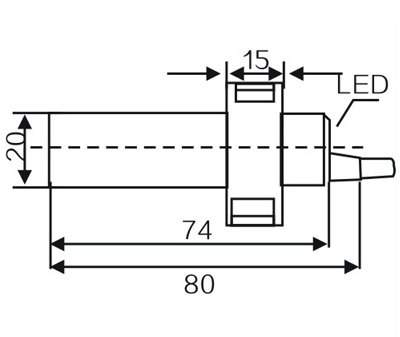

OVERALL DIMENSIONS
