| Prod Model: |
CM30-3015 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Brand: |
Winston |
| Antistop: |
Capacitance Switch |
| Workmanship: |
The Exquisite German Technology |
| Manufacturer: |
Yueqing Winston Electric Co.,Ltd |
| Shell Material: |
ABS Resin /Metal |
| Dimension: |
M30 |
| Appearence Type: |
Non-Flush |
| Detection Distance: |
15mm |
| Standard: |
Standard |
| Certification: |
CE |
| Type: |
Capacitance Proximity Switch |
| Wires: |
NPN PNP Two-Wires |
| Application: |
Location Detection |
Product Description

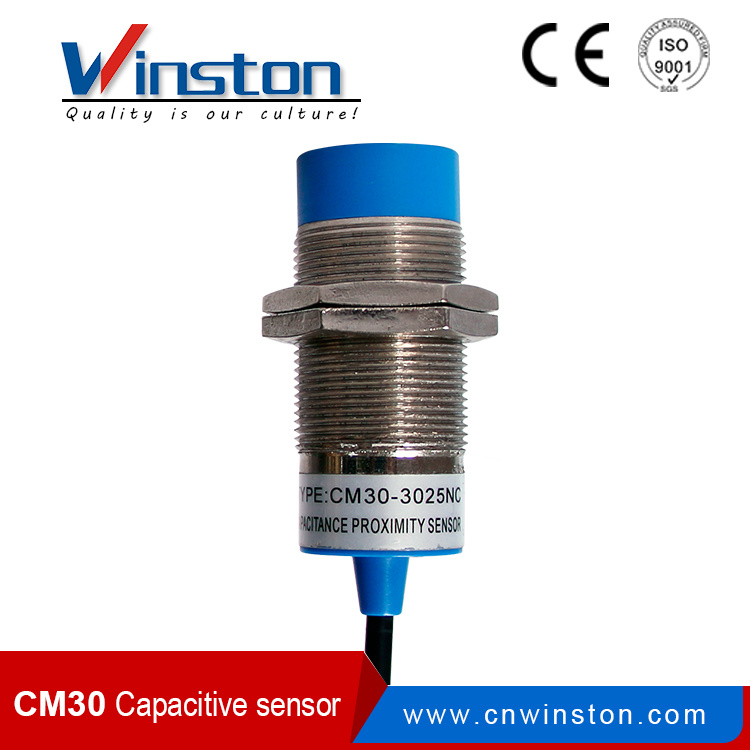

CM30 Capacitance proximity switch
high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Technique parameter:
Model explanation of proximity switch
1. Switch category(LM: inductance type; CM: capactitance type;SM:Hall type; AM:safety explosion-proof type; XM: mimic linear type)
2. Outward appearance code(C: Cylinder type; F: Angular column type and planeinstallation type)
3. Operating voltage(30: 6-36VDC; 310: 5-24VDC; 320: 12-60VDC; 20:90-250VAC; 210: 24-250VAC;220: 380VAC; 40: 12-240VDC/24-240AC; 50: Special voltage)
4. Detection distance( 01: 1mm; 05:5mm; 10:10mm)
5. Output method (N: Three-line DC NPN output;P: Three-line DC PNP output;L: Two-line DC output; AC two-wire output;J: Relay output;NP: NPN+PNP output)
6. Output status(A: NO; B: NC; C: NO+NC; MU: Mimic voltage; MI: Mimic current)
7. Auxi function code(T: With connector; Y: Water proof, oil proof; I: Special requirement;H: High temp resistance; R: Ring type)
Technical Parameters:
| Non-flush | Detection distance | 0-15mm |
| DC10-30V | NPN | NO | CM30-3015NA |
| NC | CM30-3015NB |
| NO+NC | CM30-3015NC |
| PNP | NO | CM30-3015PA |
| NC | CM30-3015PB |
| NO+NC | CM30-3015PC |
| AC90~250V | two wire system | NO | CM30-3015LA |
| NC | CM30-3015LB |
| SCR Control label silicon | NO | CM30-2015A |
| NC | CM30-2015B |
| Control output | DC | 200mA |
| SCR/Relay | 300mA |
| Output voltage drop DC/AC | DC<3V AC<10V |
| Consumption current | DC<15mA AC<10mA |
| Detected object | Conductor and Directric Body |
| Repeated precision | 0.05 |
| DC/AC Response frequency | 50Hz/10Hz |
| Working environment temperature | -25ºC~75ºC |
| Insulation resistance | 50MΩ |
| Shell material | Two type: ABS Resin and Metal |
| Protection grade | IEC standard IP54/IP67 |
| Altemative model at home and abroad | E2K-X15M... |
