Cmf37 Sn: 25mm NPN/PNP Capacitance Proximity Switch with Ce

Cmf37 Sn: 25mm NPN/PNP Capacitance Proximity Switch with Ce
Price: US $ 8.8-9.25/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 2/Piece
Pay Type: L/C,T/T,Western Union,Paypal,Money Gram
Prod Model: CMF37-3025NA CMF37-3025PC CMF37-3025LB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe
Brand: Winston
Antistop: Proximity Switch
Workmanship: The Exquisite German Technology
Protection Structure: IEC Standard IP54
Manufacturer: Yueqing Winston Electric Co.,Ltd
Output: Switch Sensor
Voltage: DC10-30V 90-250VAC
Output State: NPN PNP 2wires
Output Form: No Nc No+Nc
Detection Distance: 0-25mm
Principle: Capacitive
Standard: Standard
Certification: CE
Type: Capacitance Proximity Switch
Wires: NPN PNP Two-Wires

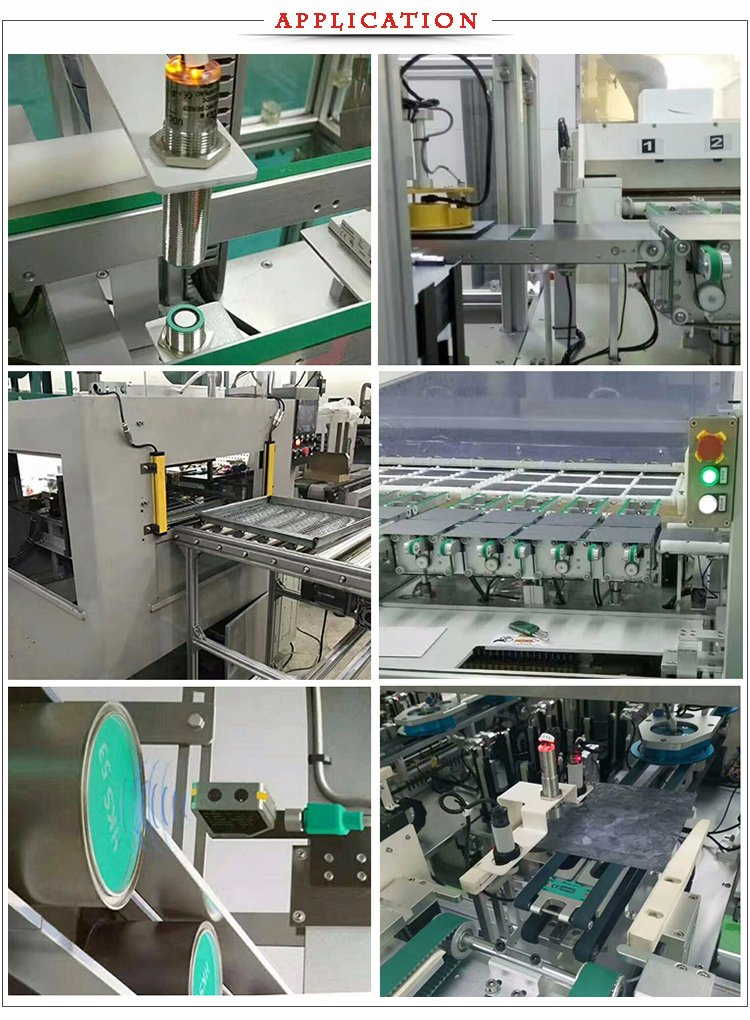

Application: Location Detection

Product Description

Product Description:

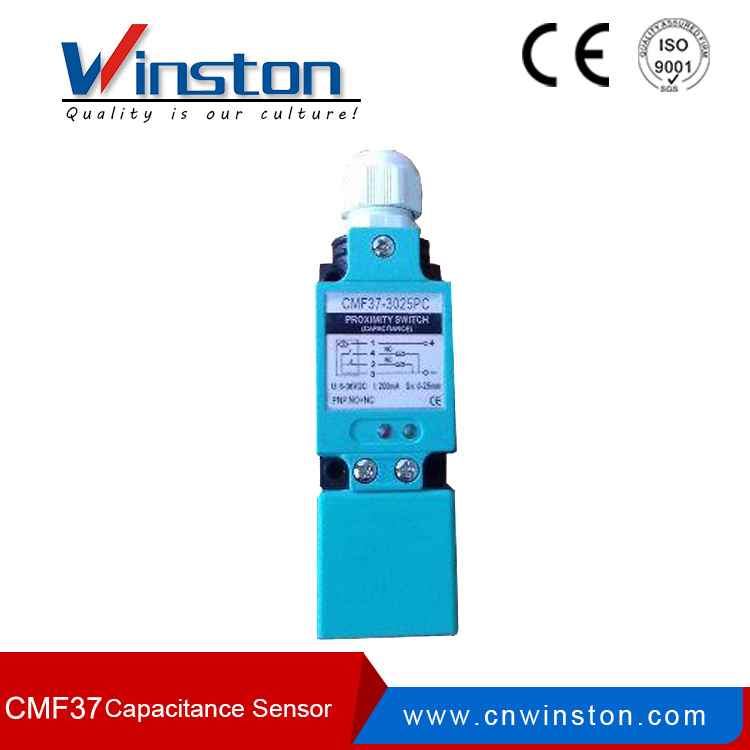

CMF37 Capacitance Proximity switch


high precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
Wide voltage range
Dust proof,vibration proof,water proof and oil proof.
With short-circuit protection and inverted connecting protection.

Technique parameter:
Non-flushDetection distance0-25mm
DC10-30VNPNNOCMF37-3025NA
NCCMF37-3025NB
NO+NCCMF37-3025NC
PNPNOCMF37-3025PA
NCCMF37-3025PB
NO+NCCMF37-3025PC
AC90~250Vtwo wire systemNOCMF37-3025LA
NCCMF37-3025LB
SCR Control label silicon NOCMF37-3025A
NCCMF37-3025B
Control outputDC200mA
AC300mA
Output voltage drop DC/ACDC<3V  AC<10V
Consumption currentDC<15mA  AC<10mA
Detected objectConductor and Directric Body
Repeated precision0.05
DC/AC Response frequency50Hz/10Hz
Working environment temperature-25ºC~75ºC
Insulation resistance50MΩ
Shell materialABS Plastic
Protection gradeIEC standard IP54
Altemative model at home and abroad

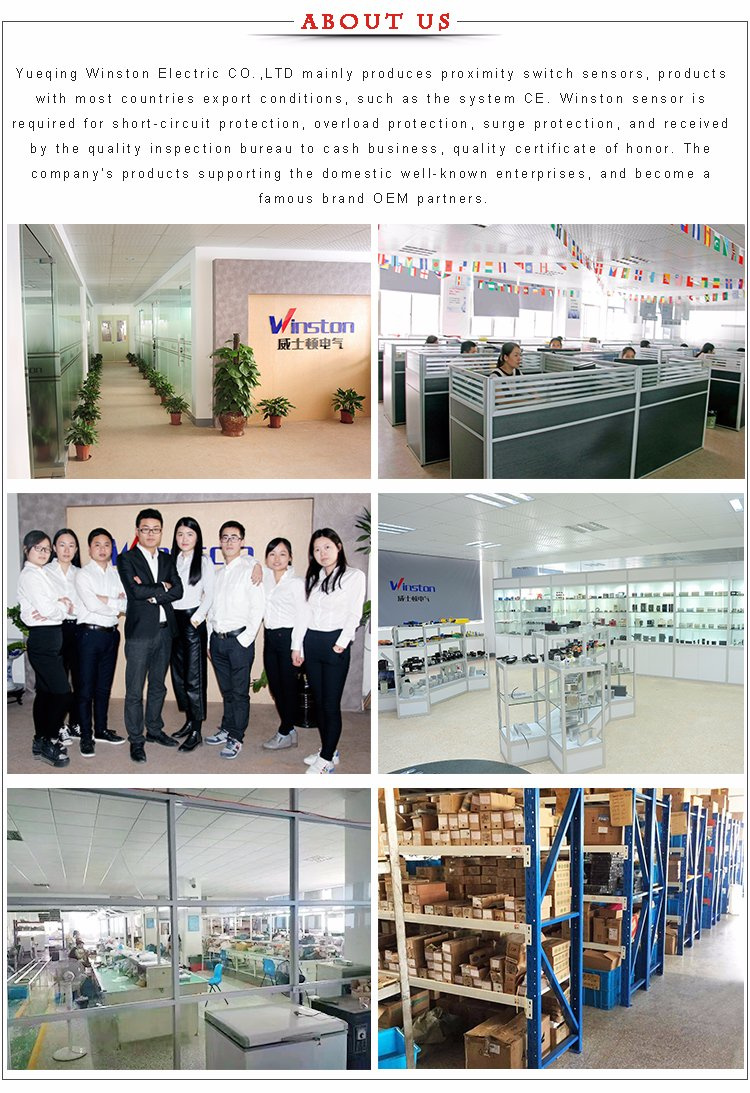

Yueqing Winston Electric Co., Ltd, established in 2010, is a rapid growing enterprise who integrate the production and marketing of Industrial electrical appliance. After seven years' effort and development, now we have become one of the leading electrical manufacturers and suppliers in China. We are always keeping very kind relationship with many strong electrical factories and Insearch institutes in China. We have been enjoying high reputation in electrical market domestically and internationally.

Our factory focus on formulating most kinds of electrical in China. Which include proximity sensor, power supply, motor soft starter, frequency inverter, relay, thermostat, heater, transformer and so on. We are capable of supplying our products in various kinds of packaging according to customers' specific requirements. Now we are producing more than 100 kinds of electrical products which are exported to about 80 countries and regions all over the world. But Winston have never stop going forward, in order to control the cost, and supply competitive price for our customers, in 2012, together with our partners, we build another factory, which producing circuit breaker, distribution box, AC contactor, etc.

Winston have an special professional registration department, who in charge of the domestic registration and oversea registration. We can help our current or potential customers to do registration work. We have a good relation with domestic famous institute who can provide us with authoritative impurity analysis and toxicological report. Quality and Service are always the top concern in Winston. We provide full set of service, including data and samples, which are available on request.

Winston's Mission is: "Focus on the industrial Electrical protection, serve the worldwide Electrical. And our tenet is: "Hold integrity, Forge Ahead, Serve the world". We are always trying our best to offer the best services and the most competitive prices with high quality goods for our customer, It's the way we win our customers and the market.

Given Chance and full space, we would show you all of our advantages and let's grow up together. I am sure we can establish long term and friendly business relationship with your esteemed company because of your trust and our excellent service.

Our advantage:

1. Quality is our culture.

2. We have our own developing and designing team, which ensure our own technological and innoative products for customers.

3. For any customers who have new idea about some products, just let us know, we can according to your idea provide a unique design of the products.

4. For any customers who send us the samples of some products, we will design and develop better ones based on the samples!

5. For every customer, we will choose the best fit material, and also innovative material for their products!

6. We can according to any customers' design to do sample of them!

7. We are manufacturer, factory, so we have the ability of mass production!

8.24*7 service, professional sales group.

Technical Support:

Most of our Winston products adopt Germany advanced technology, and the producing machine are all equipped with advance system, all our workers are experienced and skilled!

Besides, for some products material are all use imported parts.

So the quality and safety are guaranteed!

After sale service:

Our working team and sales teams can guarantee a fast and high efficiency after-sale service for our product sold to everywhere of the global.

Winston has a complete supply system for the parts, which can guarantee the company's demand of product accessories. We have stocked the common parts in the major cooperation point world widely, which can shorten the supply time largely. So if have any question, just contact us any time at your convenience!

Transportation service:

We can guarantee the fast and safe delivery to the customers' hand.
