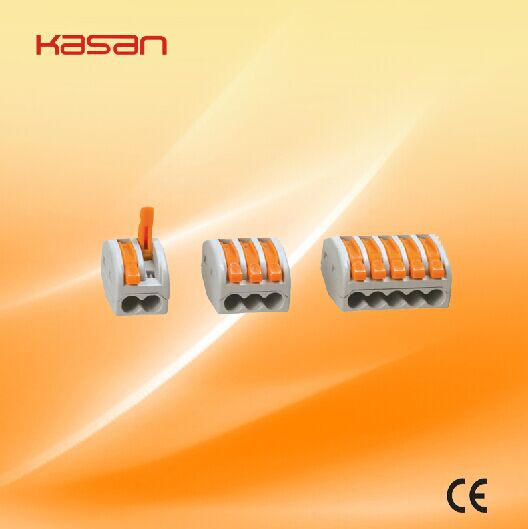

Cmk-412, 413, 415 Series Connector Terminal Block

Name: Cmk-412, 413, 415 Series Connector Terminal Block
Brand: all-electronics-online.com
SKU: 703884992
Availability: InStock
Rating: 4.6 (125 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	cmk
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color.:	Grey
Wiring Type:	Side-Entry
Type.:	Cmk412 413 415
Application:	Wer Supply
Environmental Protection:	General
Connection Mode:	In-Line Connector

Product Description

Compact connector 2-conductor terminal blocks with levers

CMK-412

Technical data

Connection method	CAGE CLAMP®CONNECTION
Number of strands	2
Cross section [mm²]	0.08 - 4 mm²
Cross section [AWG]	28 - 12 AWG
Current intensity EN	32 A
Measured voltage EN	400 V
Wiring type	Side-entry
No. of connection Points	2
Height	14.5 mm, 0.571 in
Width	12.4 mm, 0.488 in
Depth	20.5 mm, 0.807 in

Further application examples
Connect the inductive proximity switch
Actuating drive for floor heating
Intercom wiring
Temporary connections
Motor connectors
Canopy lighting
Lighting connection
Low-voltage meter
Heating system
Heating system pumps
Door control
In light strips
Machine connections
Potential connections
Chandelier connection
Fountain pump connection
Flying leads for lamp connections
Mobile connections (Site power supply)
Connecting of devices, machines
Supply line for christmas lighting
Fedd-through wiring on the lamp
Connecting of lamp combinations, roller shutters
Jalousie, loudspeaker lines in living rooms
Halogen, telephone cable, electric oven, party lights
Connecting of motor valves for floor heaters
Connecting of gas detection and fire alarm systems
Connecting of zone valves in heating installations
In see-through cabinets with pin and meter stations
Compact connector in the sensor system
Connecting of recording devices
In intermediate junction box for machines
Starry sky
