| Prod Model: |
MP16S/FJ-D |
| Installing Size: |
16mm (Other Size Is Available) |
| The Body Material: |
Stainless Steel (Chromium Plated Brass, Aluminum) |
| Operation Type: |
Momentary Push Button Switch |
| Electrical Life: |
More Than 200,000 Cycles |
| Mechanical Life: |
More Than 100,0000cycles |
| The Head Shape: |
Flat, Ball,High Push Button Switch |
| Contact Configuration: |
1no(Normally Open ) |
| Operation Travel: |
About 1.5mm |
| IP Degree: |
IP67 |
| Product Name: |
DOT LED Push Button Switch |
| Type: |
Normal Open |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
| Structure: |
1no |
| Detection Method: |
Press |
| Brand: |
CMP |
| Certification: |
TUV |

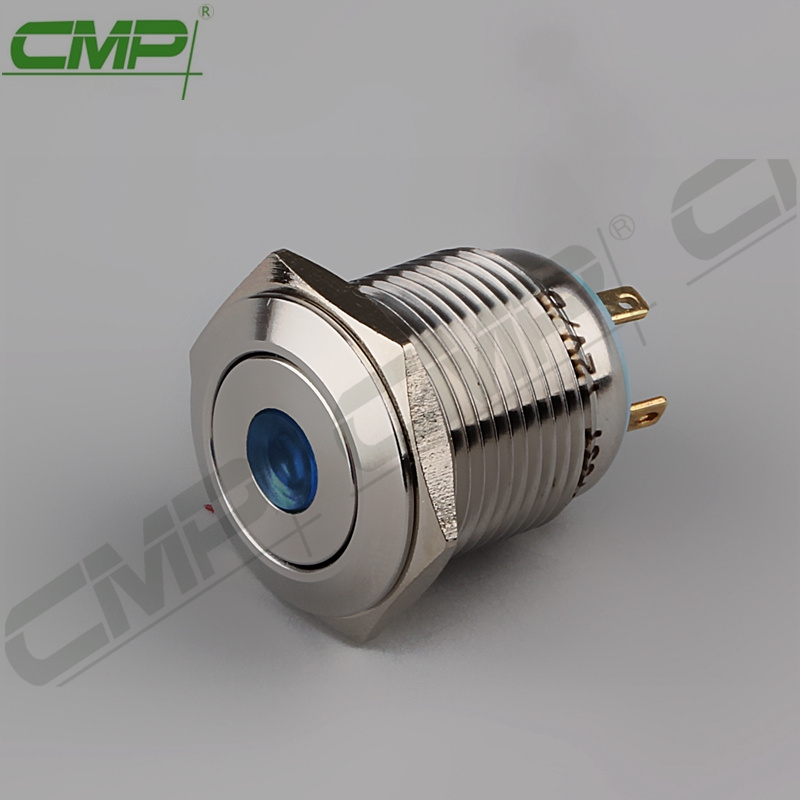

Product Description
CMP 16mm round dot led push button switches ip67 4 pin TUV CE (TUV,CE)MP016S/FJ-D: 1NO Momentary Push button Switch,4 pins terminal (2 for switch,2 for LED)1.Thread Diameter:16mm2.Operation type:Momentary (also have latching type)3.Housing material:Stainless steel (or other, contact me)4.Terminal type:Screw terminal (or soldering pin)5.Head type:High head,Flat head, Domed head with LED or not 6,LED color:red,green,white,blue,yellow,orange7.Contact configuration:1NO (spst switch)8,Switch rating: 3A/220V AC/DC9, Mechanical life: 1000000 Cycles, Electrical Life: 50000 Cycles10, Operating Temp:-20ºC~+55ºC11,IP67IK10, high quality12,have TUV,CE,ROSH, SGS | Common description for metal push button switch |
| Momentary | When you push switch and then move your finger, the actuator will back to the original position. |
| Latching | When you press the button, it keeps pressed until you press again |
| N.O. | Normally Open |
| N.C. | Normally Closed |
| SPST | Single Pole Single Throw |
| DPDT | Double Pole Double Throw |
| Silver plated gold | Wonderful material with silver plated gold |
Please feel free to contact me for more details Introduce: Companies always adhere to the "user first, quality first, reputation first" purpose, adhere to the "people-oriented strict management, meticulous, for the customer scale continuous improvement" quality policy.
Certification:
Categories: We have all kinds of push button switch. If you want it, Please contact me. We will give you the satisfactory reply.
Packaging: packaging:
inner bubble box--- inner box---carton (or by your request.)
Shipping :
DHL, EMS, TNT, Fedex, UPS and others international express
FAQ:
1. What time you can delivery?
Small Order (1-3 Days) Big Order (5-7days)
2. What transportation you can usually choose ? EMS UPS DHL or by your request.
3. What is the packaging specification?
400pcs/CTN 31cm*29cm*24cmContact us:
