| Prod Model: |
GS-TFL-6K |
| Rated Laser Output Power: |
4000W |
| Laser Wavelength: |
900-1070nm |
| Power Instability: : |
Less Than 2%; |
| Working Method: |
Continuous |
| Max. Power Consumption: |
15kw |
Product Description

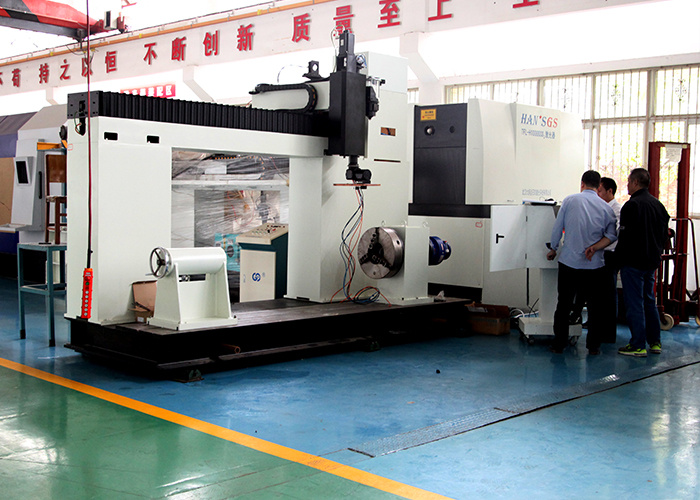

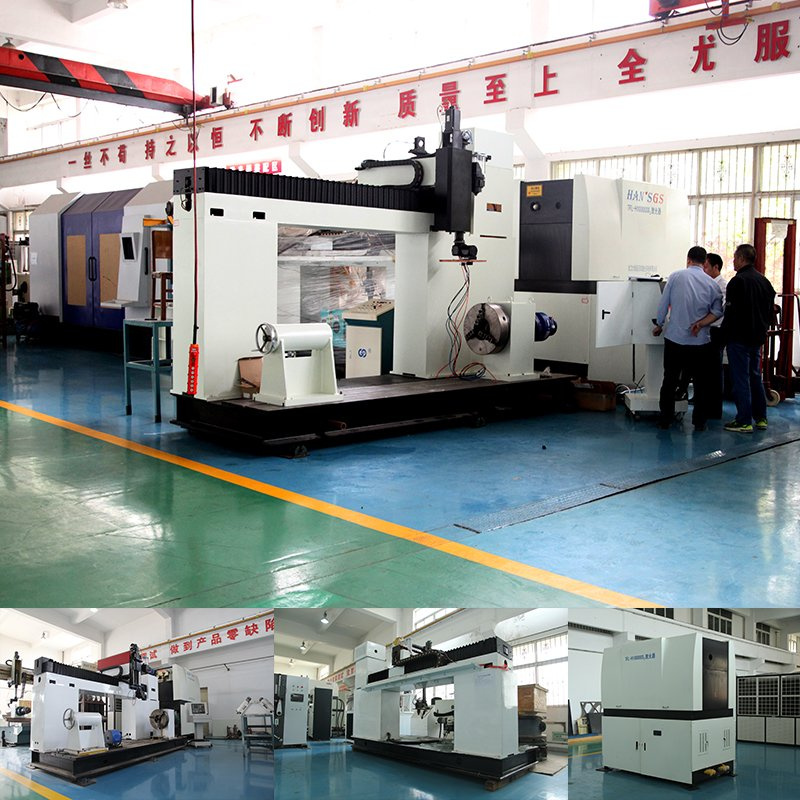

CNC control system CO2 / semiconductor laser cladding machine
Description:
light guide system
Semiconductor light coaxial indicator a: used to indicate to the processing position; red light semiconductor coaxial life indicator is more than or equal to 1 00000 hours spot, the deviation is less than or equal to 0.2mm
Laser power meter, which is used to monitor the size of the laser power, the automatic adjustment of the laser power.
Product
Technical parameter of each part
| laser source output rating | 6KW |
| Discharge mode | needle plate discharge |
| Output mode | continuous wave output |
| Output power adjustment range | 200-6000W |
| Output wavelength | 10.6μm |
| Power instability | ≤±3% |
| beam divergence angle | ≤5mrad |
| working gas | CO2,N2,He |
| Power supply | 65KW |
Numerical control machine

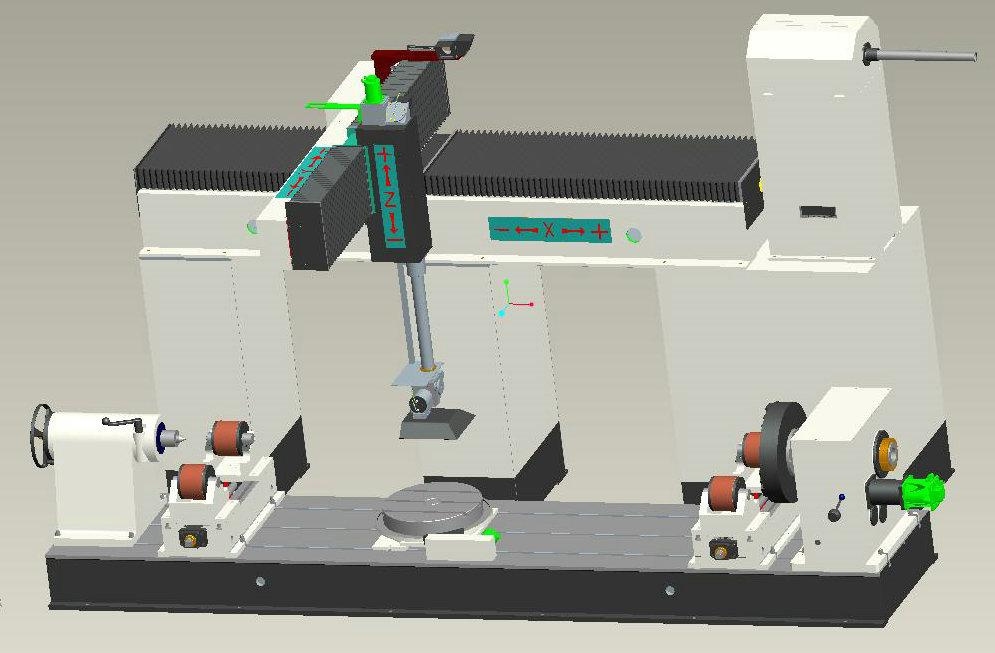

One set five axis four linkage numerical control machine tool
Adopting bracket -movement style flight path movement form,with X YZ 3 axis linear motion function and swing function ;machine tool equipped one vertical rotary worktable(A axis ) and anther horizontal rotary worktable(C axis);X,Y.Z and A or C axis form a five axis four linkage processing system
| Machine tool main part working | X×Y×Z=2500mm×1000mm×600mm |
| Speed of XYZ axis | 0~5000mm/min |
| Positioning precision | ±0.1mm/300 mm |
| Repeat positioning precision | ±0.05mm/300 mm |
| Equipped with ball screw guide rail and slide block for x y z axis |
| Laser head swing angel | -900~900 (manual) |
| Vertical rotary worktable:diameter Φ630 ,bearing weight 2T |
| Horizontal spin table | max chuck diameter Φ 630 mm (four claws) |
| Height of center | 690 mm |
| Max machining workpiece diameter | Φ 1200 mm, the largest workpiece length: 4000 mm |
| Horizontal spin station bearing | 10T |
| Horizontal rotating speed | 0.05 ~ 10rpm |
| With a machine tool base, its installation dimensions:5500mmX1000 mm×250 mm |
Application Industry:
Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings,
automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators,
household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and
other manufacturing industries.
Standard

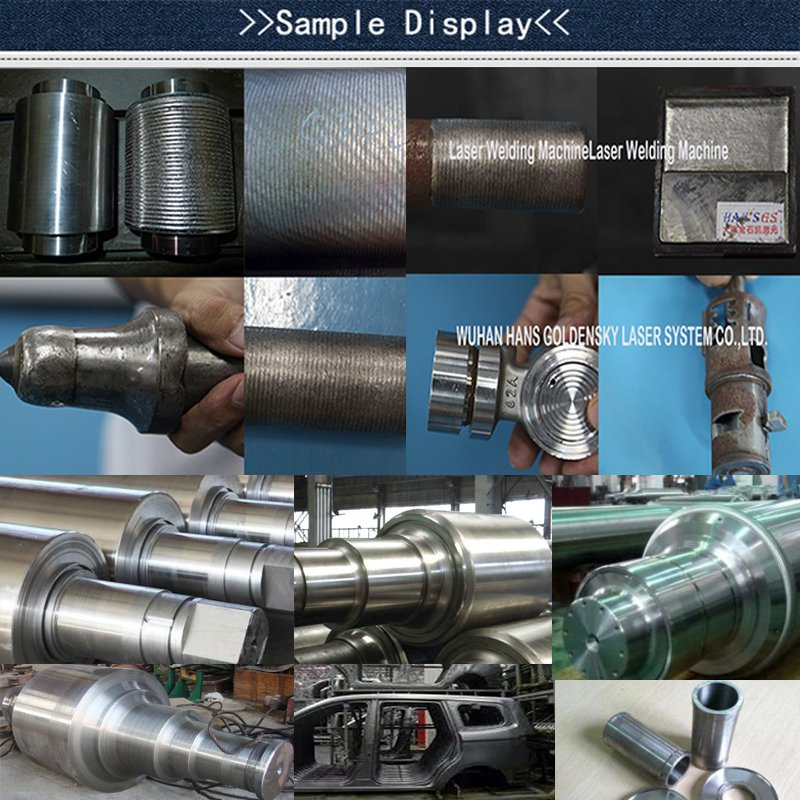

Laser Cladding Machine Sample
Our service:
Quality Guarantee System:
1.The integral design will be accomplished by us within 30 working days after the contract assignment. Procurement of components and manufacturing of casting piece will be priory to ensure the delivery time.
2.With ISO 9001 quality system request, we'll keep the coordination and restrict standard in all manufacturing process including rigid inspection for raw material selection and procurement. Also the manufacturing process is under inspection and control to prevent the unqualified product flow into next manufacturing step so as to ensure the delivery time and quality of all our products delivered.
3.Inspection of our design, manufacturing, assembly, test and installation by customer is welcome at anytime, and we will always offer our cooperation.
Save
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
