CNC Drag Chain Electrical Cable

Product Description

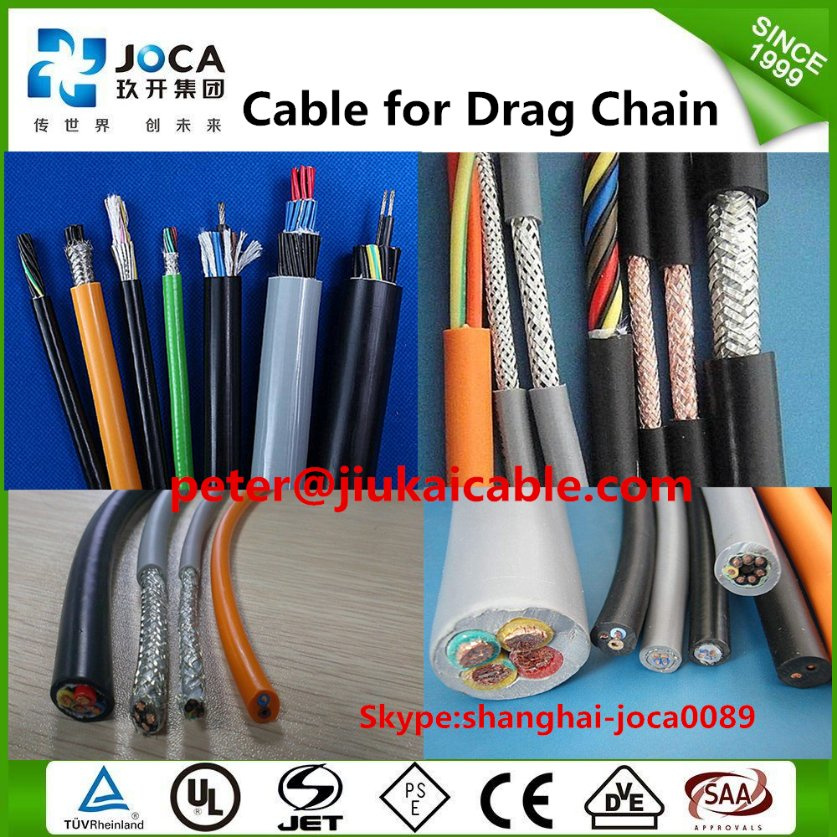

CNC Drag Chain Electrical Cable

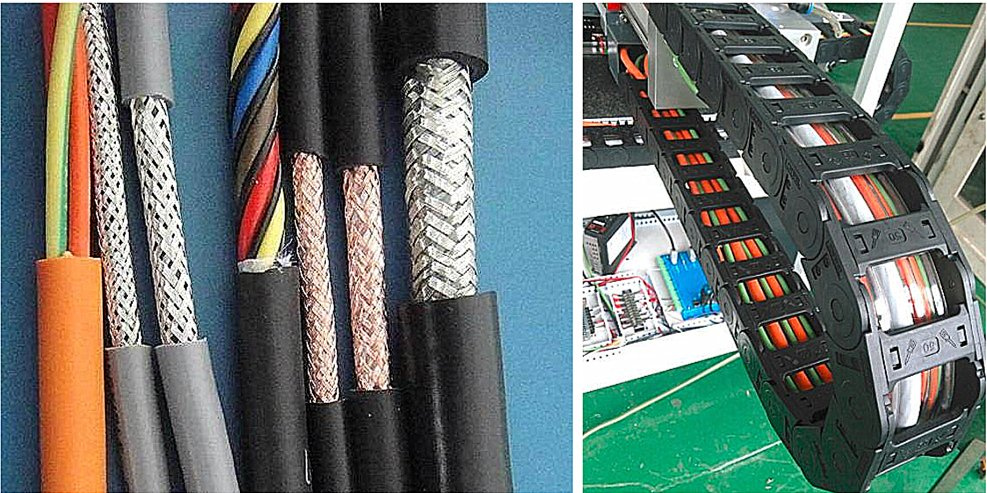

        Cable Structure

• Fine stranded copper core according to DIN VDE 0295 and IEC 60228 class 6.
• Core insulation:Special PVC/TPE Mixed.
• Cores are wrapped with soft textile tape
• Color code:Core wrapping with fleece
  • supply cores black with print and green/yellow
  • control cores (in pairs) black with print BR1, BR2
•
• Control cores are shielded in pairs of tinned copper braided screening
• Overall shield tinned copper braided screening, approx 85% coverage
• Special outer sheath:Special PVC, orange color.
• Resistant to oil according to DIN VDE 0472 part 803 test B
• Self-extinguishing and flame-retardant according to DIN VDE 0482 /IEC 60332-1
• Technical Data
• • High flexible shielded power cable for drag chains according to DIN VDE. IEC
  • Temperature range:
    • flexing from -30 °C to +80 °C
    • fixed from -50 °C to +80 °C
  • Nominal voltage:
    • supply cores:
      • Uo/U 0,6/1 kV to DIN VDE
      • 1 kV to cUL
    • control cores:
      • 250 V to DIN VDE
      • 1 kV to cUL
  • Test voltage a.c.:Insulation resistance: at 20 °C ≥ 20 MΩ x km
    • supply cores:
      • core/core 4000 V
      • core/screen 4000 V
  •
  • Minimum bending radius:Aprobation UL/CSA
    • flexing inf. 7,5 x cable diameter
    • fixed approx. 6 x cable diameter

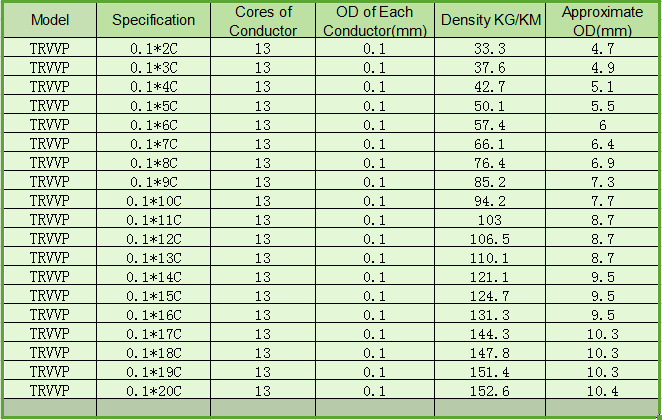

  Specification Parameters for CNC Drag Chain Electrical Cable

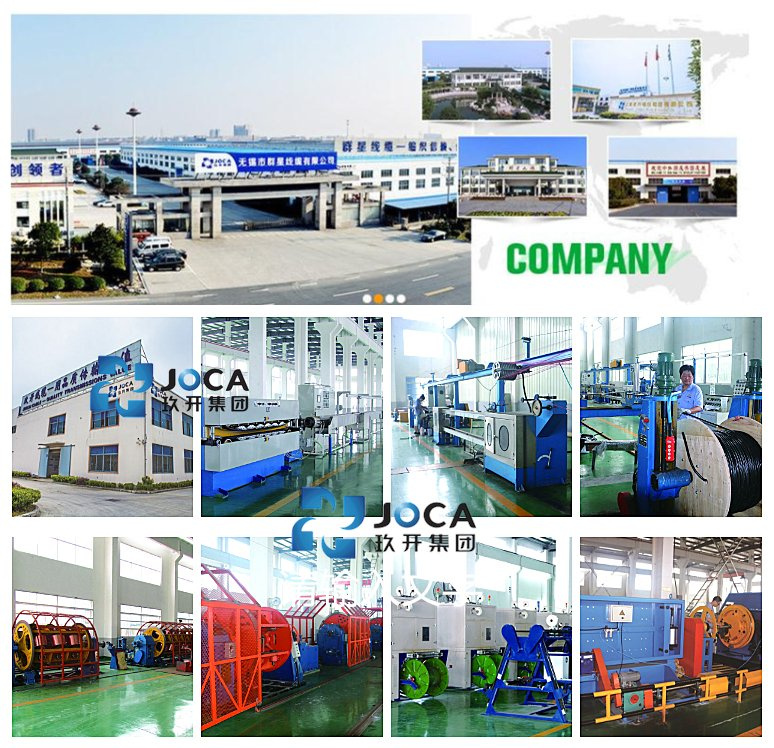

  Group Profile
  JOCA holding group is an enterprise group,integrated research,manufacture&trade. The group has he group total capital RMB 250million&o occupied area 1800 thousand sqm including building area 1000 thousand sqm. The group has more than 800 sets nowadays domestic&foreign advanced cable equipment, yearly production capacity RMB 1.6 billion, 600 employees and nearly domestic& overseas representative offices or branch companies. Subsidiary company Shanghai Jiukai Wire&Cable Co.,Ltd, Jiukai Communication Technology(Shanghai)Co.,Ltd.&Wuxi City Qunxing Wire&Cable Co.,Ltd. are fully invested Wholly owned companies by JOCA group in cable, telecommunication&integrated general wiring industry.
      We mainly produce 10 categories(thousands of kinds)cables, such as audio&video cable, elevator cable, data cables,computer cable, CAT5E LAN cable, CAT6E cable, solar PV cable, UL Wire,flexible cable and special cable.
       With so many years' manufacturing experience, our cables are well sold to America, Europe,Middle-east, Southeast Asia and Africa. And all our cables has already got the certificates of national or international professional testing organizations, such as China CCC certificate, US UL certificate, European Union CE Certificate, German TUV, Quality system certification certificate ISO9001:2000. And we get the honors of "Recontract And Trustworthy Enterprise", "Measurement Qualified Enterprises","China Top Brand" and "China Cable Manufacturer TOP100.


  Main Products
  1.Solar Cable
  2.IP67 MC4 Connector
  3.Elevator Cable
  4.TPS Cable
  5.Coxial Cable
  6.Flexible Power Cable 0.6/1kv
  7.CE Sheathed Cable
  8.UL&CE Standard Wire

  Advantages
  1.Large Scale Factory-Encolsed Company Information File.
  2.Complete Qualified Approvals.
  3.OEM, Quality is guaranteed.
  4.Wire&Cable with High Quality&Competitive Price.
  5.Import-Exported Operating Licence.
  6.Short Dlivery Time.

  Packing&Shipping for CNC Drag Chain Electrical Cable


  Our Service
  1. OEM Manufacturing welcome: Product, Package...
  2. Sample order .
  3. We will reply you for your inquiry in 24 hours.
  4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solutions for you.

  FAQ
  Q1. What is your terms of packing?
  A: Generally, we pack our goods in wooden pallet or wooden case. And we aslo can put your brand or LOGO on packaging after getting your authorization letters.
  Q2. What is your terms of payment?
  A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
  Q3. What is your terms of delivery?
  A: EXW, FOB, CFR, CIF, DDU.
  Q4. How about your delivery time?
  A: Generally, it will take about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
  Q5. Can you produce according to the samples?
  A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
  Q6. What is your sample policy?
  A: We can supply free sample if we have ready parts in stock.
  Q7. Do you test all your goods before delivery?
  A: Yes, we have 100% test before delivery
  Q8: How do you make our business long-term and good relationship?
  A:1. We keep good quality and competitive price to ensure our customers benefit ;
     2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
