CNC MCB Outlet Mini Circuit Breaker (YCBKN)

Name: CNC MCB Outlet Mini Circuit Breaker (YCBKN)
Brand: all-electronics-online.com
SKU: 682564355
Availability: InStock
Rating: 4.6 (67 reviews)

Price:	Negotiable/Piece
Trade Terms:	others
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCBKN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Circuit Breaker
Function:	Circuit-Breaker Failure Protection
Arc-extinguishing Medium:	Air
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Installation:	Insert
Speed:	Normal Type Circuit Breaker
Structure:	Moulded Case Circuit Breaker
Certification:	IEC60898

Product Description

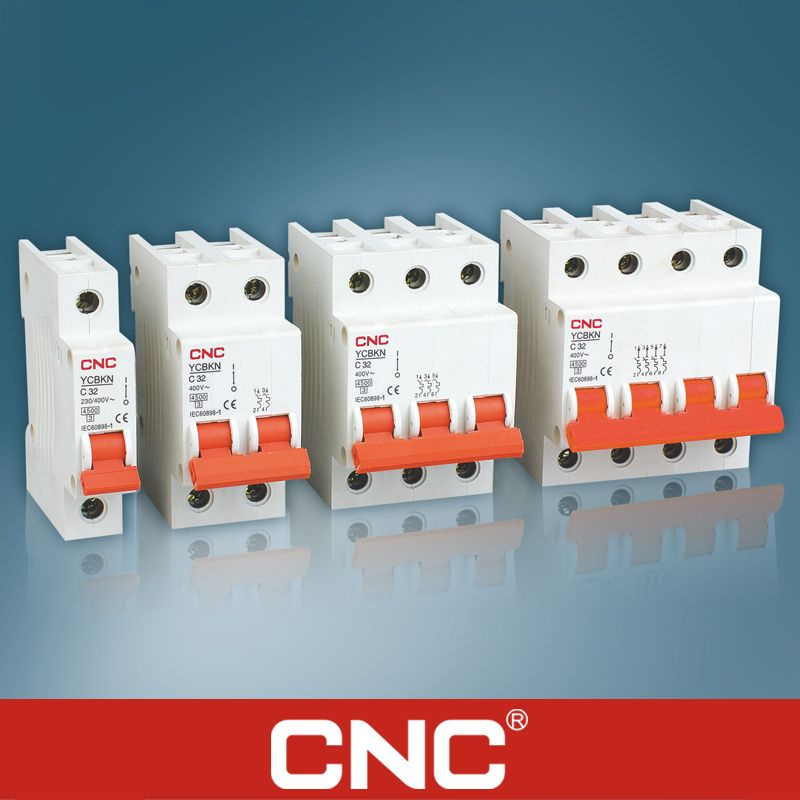

YCBKN mini circuit breaker

1. Certificate: CE
2. Standard: IEC60898-1
3. Rated capacity: 3KA, 4.5KA
4. Rated current: 1~63A

Electrical features	Rated current In	A	1.2, 6, 10, 16, 20, 25, 32, 40, 50, 63
	Poles	P	1.2, 3, 4
	Rated voltage Ue	V	230/400
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	3000, 4500
	Rated impulse withstand voltage (1.2/50) Uimp	V	4000
	Dielectric test voltage at ind. Freq. for 1 min	Kv	2
	Pollution degree		2
	Thermo-magnetic release characteristic		B, C, D
Mechanical features	Electrical life	t	4000
	Mechanical life	t	10000
	Protection degree		IP20
	Reference temperature for setting of thermal element	° C	30
	Ambient temperature (with daily average≤ 35° C)	° C	-5~+40 (special application please refer to temperature compensation correction)
	Storage temperature	° C	-25~+70
Installation	Terminal connection type		Cable / Pin-type busbar
	Terminal size top/bottom for cable	mm2	25
	Terminal size top/bottom for cable	AWG	18-3
	Terminal size top/bottom for busbar	mm2	25
	Terminal size top/bottom for busbar	AWG	18-3
	Tightening torque	N*m	2
	Tightening torque	In-Ibs.	18
	Mounting		On DIN rail EN 60715(35mm) by means of fast clip device
	Connection		from top or bottom

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
