CNC RCCB Residual Current Circuit Breaker (YCL360)

Name: CNC RCCB Residual Current Circuit Breaker (YCL360)
Brand: all-electronics-online.com
SKU: 682319275
Availability: InStock
Rating: 4.8 (128 reviews)

Price:	US $ 8.2-8.9/Piece
Trade Terms:	FOB,others
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCL360
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Arc-extinguishing Medium:	Air
Installation:	Insert

Product Description

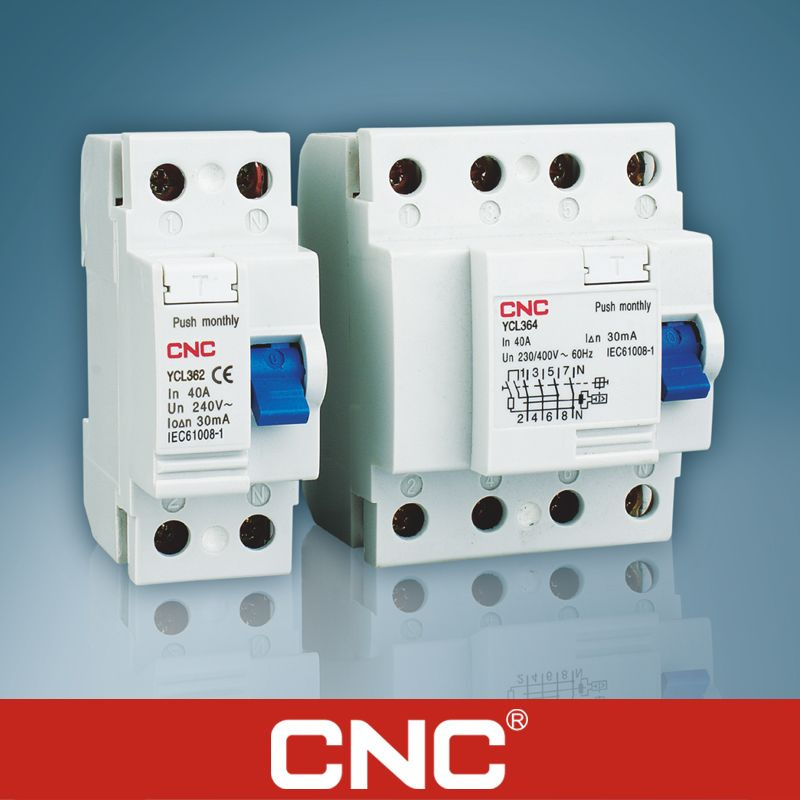

CNC RCCB YCL360 Residual Current Circuit Breaker

1. Model: YCL360
2. Standard: IEC1008-1
3. Function: Leakage protection
4. Rated voltage: 240V/415V(220V/380V)
5. Rated current: 16A/25A/32A/40A/63A
6. Frequency: 50/60Hz

The item is in company with standards of IEC61008-1, applying to the circuit of AC 50/60Hz, 230V single phase, 400V three phases or below it for industrial and mining enterprise, trade building, commerce and family. It is mainly used for preventing electric fire and personal casual accident caused by personal electric shock or leakage of electrictrified wire net, this is a current operated, fast leakage protector of pure electromagnetic type, which can break off fault circuit rapidly in order to avoid occurrence of accident.

Electrical features	Rated current In	A	16, 25, 32, 40, 63, 80.100
	Type (wave form of the earth leakage sensed)		A, AC, S
	Poles	P	2, 4
	Thermo-magnetic release characteristic		C
	Rated voltage Ue	V	230/400
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	4500, 6000
	Rated sensitivity IΔ n	A	0.01, 0.03, 0.1, 0.3
	Rated residual making and breaking capacity IΔ m	A	630
	Pollution degree		2
Mechanical features	Electrical life	t	6000
	Mechanical life	t	10000
	Protection degree		IP20
	Storage temperature	º C	-25~+70
	Ambient temperature (with daily average≤ 35º C)	º C	-5~+40
Installation	Terminal connection type		Terminal with clip
	Terminal size top/bottom for cable	mm2	25
	Terminal size top/bottom for cable	AWG	18-3
	Terminal size top/bottom for busbar	mm2	25
	Terminal size top/bottom for busbar	AWG	18-3
	Tightening torque	N*m	2.5
	Tightening torque	In-Ibs.	22
	Mounting		On DIN rail EN 60715(35mm) by means of fast clip device
	Connection		from top

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
