Product Description

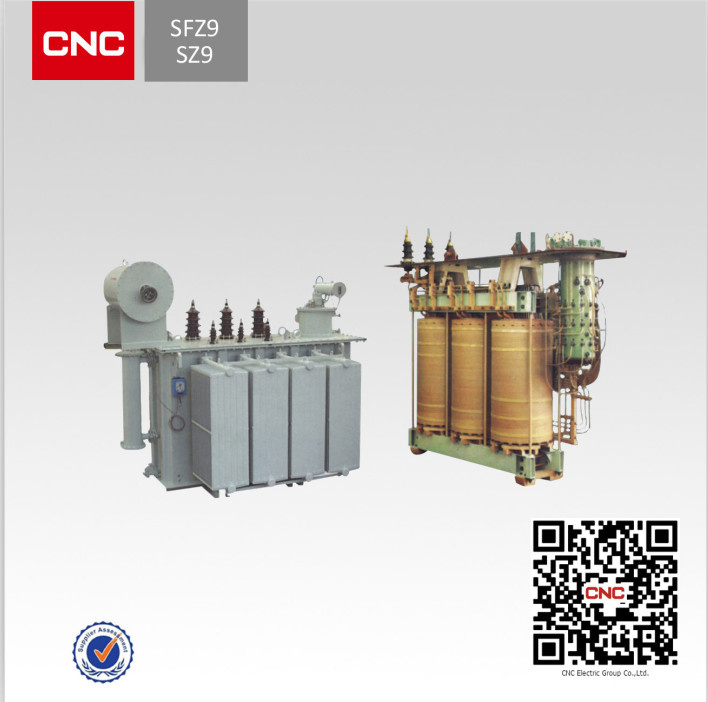

Oil Immersed On-load-tap-changing Transformer of 35kv and BelowGeneral:
This product is applied to power system of three-phase, 50Hz as well as 35kv and below. It is the main transformer equipment of medium and small-sized transformer substation; Supplies power distribution, power and illumination for the industry and agriculture.
The company introduces domestic and oversea advanced technique, and adopts the latest material and optimizes design, which enables the product structure more reasonable, and greatly improves the product electric strength, mechanical strength and heat-sinking capability. S9 series product has passed the short-circuit test prepared by Wuhan High voltage Research Institute and also the test prepared by National Center for Quality Supervision & Test of Transformer.
Altitude: ≤ 1000m
Ambient temperature: The highest temperature +40 º C, the highest monthly mean temperature +30º C; The lowest temperature -10º C, the highest yearly mean temperature +20 º C.
Installation environment inclination of installation place: <3° , no obvious dust and corrosive or flammable gas.
Accord to Standards: IEC60076
|
SZ9 and SFZ9 series three phase on-load-tap-changing transformer of 35kv |
|
Rated power kva |
Voltage |
Connection symbol |
No-load current (%) |
Impedence voltage (%) |
Loss (kw) |
Weight (t) |
|
H. V kv |
L. V kv |
No-load |
Load |
Oil |
Ovrall weight |
Oil filling and weight adding |
Transportation weight |
|
1600 |
35± 3* 2.5% 38.5± 3* 2.5% |
6.3 6.6 10.5 11 |
Ynd11 |
0.9 |
6.5 |
2.2 |
18.5 |
1.8 |
6.5 |
0.4 |
4.9 |
|
2000 |
0.9 |
6.5 |
2.9 |
20.2 |
2 |
7 |
0.6 |
6.3 |
|
2500 |
0.9 |
6.5 |
3.4 |
22.7 |
2.2 |
8.1 |
0.7 |
6.9 |
|
3150 |
0.8 |
7 |
4.1 |
26 |
2.5 |
9.3 |
0.7 |
7.6 |
|
4000 |
0.8 |
7 |
1.9 |
30.7 |
2.7 |
11.4 |
0.8 |
8.1 |
|
5000 |
0.75 |
7 |
5.8 |
36 |
3.1 |
12.9 |
0.8 |
10.5 |
|
6300 |
0.75 |
7.5 |
7 |
38.7 |
3.6 |
15.4 |
0.9 |
13 |
|
8000 |
35± 3* 2.5% 38.5± 3* 2.5% |
6.3 10.5 |
Yd11 |
0.7 |
7.5 |
9.9 |
43 |
4.5 |
17.8 |
0.9 |
15.4 |
|
10000 |
0.7 |
7.5 |
11.6 |
50.6 |
4.6 |
19.3 |
1 |
17.2 |
|
12500 |
0.7 |
8 |
13.8 |
59.9 |
5.9 |
24.7 |
1.2 |
22.5 |
|
16000 |
0.7 |
8 |
16.2 |
73 |
6.6 |
32.5 |
2 |
27 |
|
20000 |
0.7 |
8 |
19.5 |
84.6 |
7.9 |
36.7 |
2.1 |
31 |
|
25000 |
0.7 |
8 |
22.5 |
100.2 |
8.1 |
38.5 |
2.2 |
33.5 |
|
31500 |
0.6 |
8 |
26.4 |
124 |
10.5 |
40.5 |
2.3 |
38 |
|
SZ9 and SFZ9 series three phase on-load-tap-changing transformer of 10kv |
|
Rated power kva |
Voltage |
Connection symbol |
No-load current (%) |
Impedence voltage (%) |
Loss (kw) |
Weight (kg) |
|
H. V kv |
L. V kv |
No-load |
Load |
Oil |
Ovrall weight |
Transportation weight |
|
100 |
10± 4*2.5% 10.5± 4*2.5% 6.3± 4*2.5% 6± 4*2.5% |
0.4 |
Yyn |
360 |
2500 |
1.8 |
4 |
220 |
770 |
770 |
|
200 |
420 |
3100 |
1.8 |
4 |
325 |
1250 |
1250 |
|
150 |
510 |
3600 |
1.7 |
4 |
350 |
1320 |
1320 |
|
315 |
610 |
4300 |
1.6 |
4 |
390 |
1430 |
1430 |
|
400 |
10.5± 4*2.5% 6.3± 4*2.5% 6± 4*2.5% |
0.4 |
Dyn11 Yyn0 |
730 |
5200 |
1.5 |
4 |
420 |
1700 |
1700 |
|
500 |
870 |
6210 |
1.4 |
4 |
540 |
1995 |
1995 |
|
630 |
1120 |
7650 |
1.3 |
4.5 |
620 |
2620 |
2620 |
|
800 |
1360 |
9360 |
1.2 |
4.5 |
840 |
3385 |
3385 |
|
1000 |
1590 |
11000 |
1.1 |
4.5 |
905 |
4200 |
4200 |
|
1250 |
1870 |
13050 |
1 |
4.5 |
1040 |
4750 |
4750 |
|
1600 |
2390 |
15570 |
0.9 |
4.5 |
1450 |
5760 |
5760 |
|
2000 |
10± 3*2.5% 10.5± 3*2.5% |
0.4 |
Yd11 |
2850 |
18600 |
0.8 |
6.5 |
1950 |
7900 |
7900 |
|
2500 |
6.3 3.15 |
3250 |
21500 |
0.8 |
6.5 |
2270 |
8600 |
8600 |
|
3150 |
4100 |
25300 |
0.8 |
6.5 |
2950 |
9800 |
9800 |
|
4000 |
5200 |
2990 |
0.7 |
6.5 |
3200 |
10500 |
7500 |
|
5000 |
5900 |
34030 |
0.7 |
6.5 |
3660 |
11600 |
8810 |
|
6300 |
7200 |
38500 |
0.7 |
6.5 |
4560 |
13300 |
11000 |
|
8000 |
9500 |
42500 |
0.7 |
6.5 |
5120 |
16630 |
13550 |
