CNC Three-Phase High Accuracy Automatic AC Voltage Stabilizer (SVC/TNS)

Name: CNC Three-Phase High Accuracy Automatic AC Voltage Stabilizer (SVC/TNS)
Brand: all-electronics-online.com
SKU: 682706585
Availability: InStock
Rating: 4.4 (106 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIP,others
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SVC/TNS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	SVC
Phase:	Three Phase
Current Type:	AC

Product Description

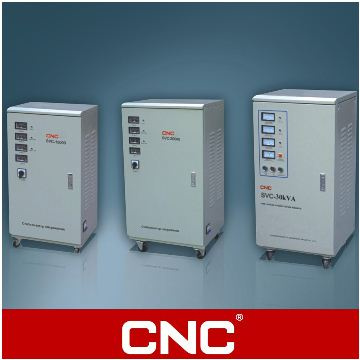

SVC/TNS Three-phase High Accuracy Automatic AC Voltage Stabilizer

1. General:
This product is constructed by connecting the three pieces of high accuracy full-automatic AC voltage stabilizers with Y connection method, with the advantage of: Wide input voltage range, high efficiency, with over (under)voltage, over-current protection function, high regulating accuracy, short adjusting time, same input and output voltage waveform, small volume, .

2. Scope Of Application:
It is available in the electric equipment and facilities in housing, factory, school, shop, office, precision instrument for scientific experiment, can long hours circulate.

Input voltage	280V~430V
Output voltage	380V± 3%
Frequency	50 / 60 Hz
Response time	< 1s (when input voltage varies 10%)
Max rated output current	1.5kva ~ 45kva
Environment temperature	' -5º C~+40º C
Temperature rise	< 60 º C
Relative humidity	less than 90%
Waveform aberration	No additional distortion
Efficiency	> 90%
Withstand voltage	1500 V/min

* for reference only *

Model	Specification & capacity (VA)	Overall size (WDL) mm	Net weight kg	Package size/set(WDL) mm	Gross weight kg
Model	Specification & capacity (VA)	Overall size (WDL) mm	Net weight kg	Package size/set(WDL) mm	Gross weight kg
Three-phase movable type TNS/SVC	TNS/SVC-1500	480300180	16	560385235	17.5
	TNS/SVC-3000	180380325	18.5	560385235	20
	TNS/SVC-4500	180380325	20.5	560385235	22
Three-phase cubicletype TNS/SVC	TNS/SVC-6000	300280670	32	430390770	38
	TNS/SVC-9000	300320760	42	430430860	50
	TNS/SVC-15000	410320830	60	540480930	65
	TNS/SVC-20000	440425870	76	6405401090	81
	TNS/SVC-30000	510425980	117	6405401090	132
	TNS/SVC-40000	8405001230	220	9806301430	240
	TNS/SVC-50000	8405001230	235	9806301430	255
	TNS/SVC-60000	8405001230	248	9806301430	268

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
