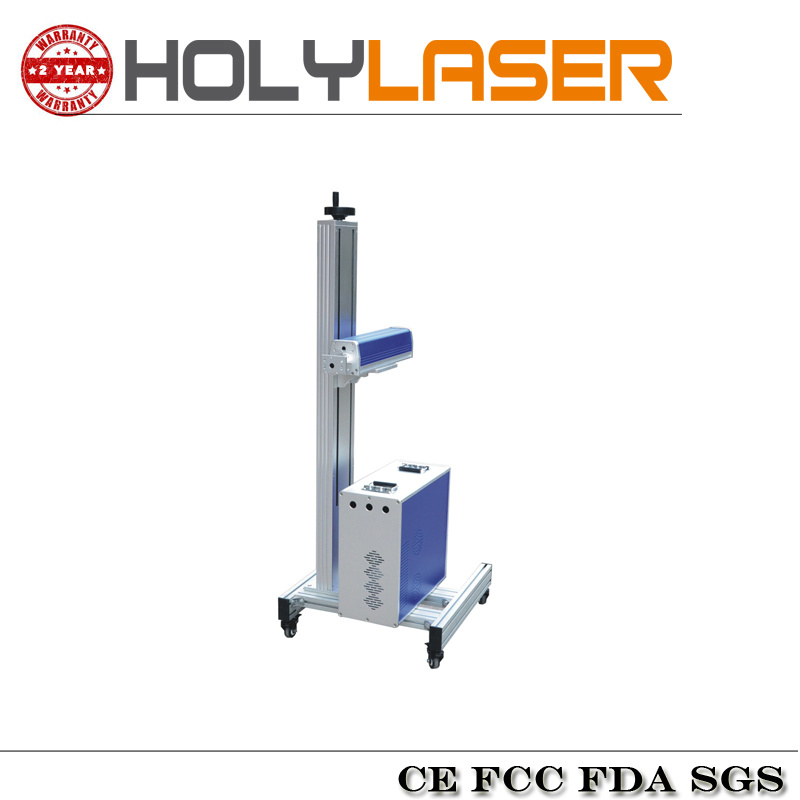

CNC YAG 10W/20W/30W/50W/100W Fiber Laser Marking Engraving Machine for Metal & Plastic

Name: CNC YAG 10W/20W/30W/50W/100W Fiber Laser Marking Engraving Machine for Metal & Plastic
Brand: all-electronics-online.com
SKU: 694590805
Availability: InStock
Rating: 4.8 (122 reviews)

Price:	NegotiableSET
Trade Terms:	FOB,CFR,CIF
Min Order:	1SET
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	HSGQ-20W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Engraving Machine Type:	Laser Engraving Machine
Usage:	Metal
Power:	10W/20W/30W/50W/100W
Drive Type:	Hybrid Servo Drive
Certification:	SGS, Ce,FDA,FCC
Laser Type:	Fiber Laser
Control:	Automatic
Current:	AC

Product Description

CNC Yag 10w/20w/30w/50w/100w Fiber Laser Marking Engraving Machine for Metal & Plastic

Model	HS GQ-20W
Output power	20W(continuation or pulse)
Wavelength	1064nm
Power adjustment range	10-100%
Repeat frequency	20-100KHz
Output beam quality	less 1.5M²
Marking depth	≥ 0.2mm
Min.line width	0.001mm
Min. character size	0.15mm
Repeat frequency	± 0.001mm
Max. Linear speed	≥ 7000mm/s
Support Format	PCX, DXF, BMP file format
Support Format	PCX, DXF, BMP file format
Max.Marking Area	110mm× 110mm, 150mm× 150mm ,175x175mm,300*300mm(customized)
Complete Power	≤ 800W
Power Supply	220V± 10%/50Hz/
Cooling	air cooling
Laser Lifetime	more than 100,000hours
Temperature	10-28
Weight:	60kg

Adavantages:

1.laser source from Germany, and master the core technology same as Germany

2.Imported high-speed scanning galvanometer from Singapore with photoelectric conversion efficiency,

3.fiber laser, long life, high marking speed, high quality output beam, high reliablity.

4.Can be integrated in the industrial mass production process.

5.Air cooling, except electricity, no other consuption

Applicable materials:
Metals, and some nonmetal, gold, silver, iron, etc.
Components of automobiles and motorcycle, packaging of goods, drink and cigarette. Nameplate, jewellery, watches. It can make all kinds of graphs, words and signals.

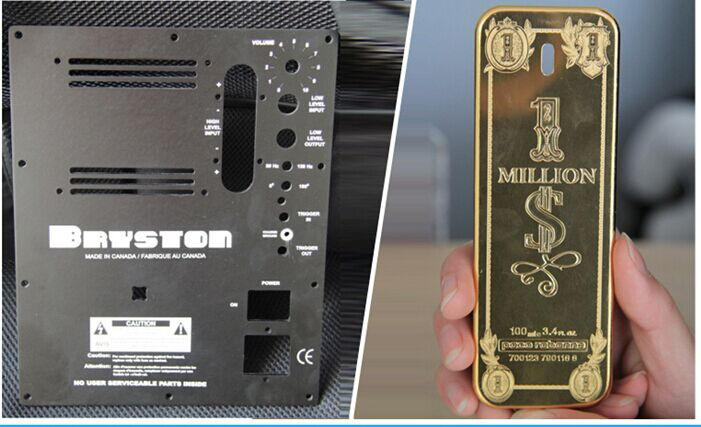

Samples marking by the Machine:

Easy to oporate:

It''s very convenient to mod Fiber marking machine ify serial No. or date, even that it can act automatically including marking the current year, month, day, hour, minute and second. During the continuous working process, it timely tracks and modifies these data. Its characteristic is high marking speed and precision marking effect.

Factory Profile:

1.Supported by the Yiwu City Government

2.Cooperate with the Zhejiang University, update for technology

3.We are the manufacturer, our price are more competitive.

4.With 17 years history on reseaching and producing all kinds of laser machine

5.Our company welcomes AGENTS all over the world

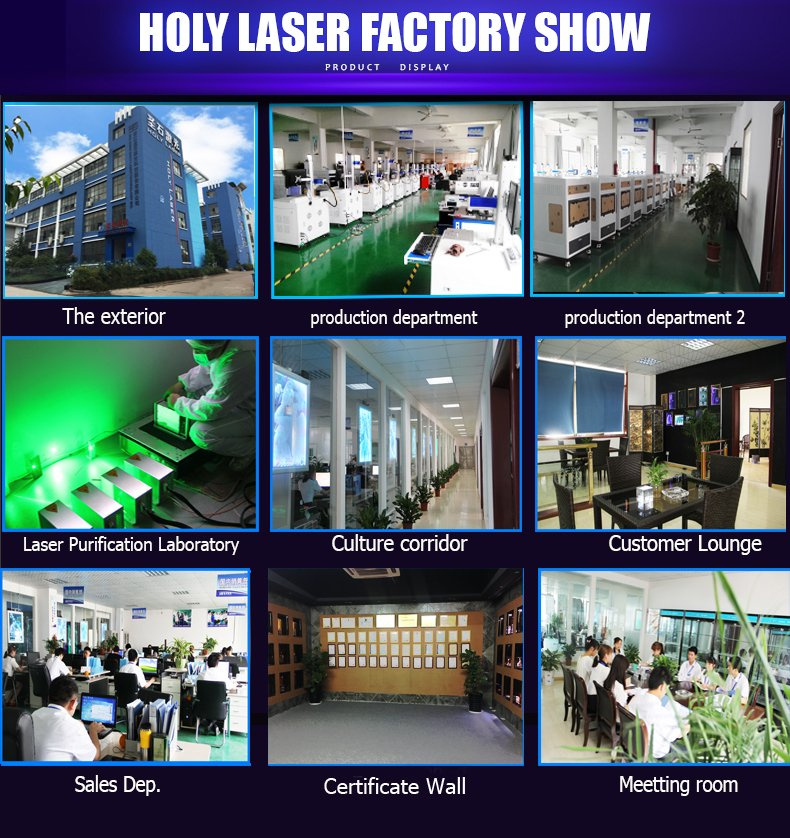

Our Factory Show!!(covering about 3000 square meter)

After-sale service:

1.Two years guarantee period for product quality. (man made damaged is negotiable).

2.Lifelong maintenance, software update and spare parts supply.

3.Free design of fixtures as customers required.

4.Free training for machines installation and operation of the staffs
5.Free samples sending to customers to have a check.

Warmly welcome you contact us directly for more information!!!
Warmly welcome you to visit our factory!!!

Zhejiang Holy Laser Technoloy Co., Ltd, is a factory Located in YiWu City, ZheJiang Province. We specialize in: 3D laser machine, Large size glass engraving machine, Laser marking machine, Laser cutting machine, etc.

We are here because we are qualified for serving you by the bellow advantages:

1, We can supply machine in 7-10days once you confrim the order.

2, We supply complete service: Machine, design, crystal and LED base factory info. Design for free, technology support for all liftime, training for free.

3, We have our own factory garden that more than 1600squre meter. Wihch suport by government in yiwu economic development zone.

4, All our productions with CE, FCC, FDA, SGS, TUV certification s. Cause suitable for all city in the world.

5, We also have our son desiner team which have more than 15 years experience. Can supply you 2D or 3D desing with your special photo or supply beautiful design in tock.

You are always welcome to visit our factory in any time, , you are here not just our customer, most important is we are friends.
