Cnlinko 9pin Terminal Plug and Panel Mount Socket Connector for Signal Equipment

Name: Cnlinko 9pin Terminal Plug and Panel Mount Socket Connector for Signal Equipment
Brand: all-electronics-online.com
SKU: 803510785
Availability: InStock
Rating: 4.6 (122 reviews)

Price:	US $ 4.8-5.6/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YM-20-C12PE-01-001&YM-20-J12SX-01-001
Certification:	Ce, CCC, ISO90012008, RoHS
Product Type:	12 Pin
Rated Current:	5 a
Protection Level:	IP67
Connecting Mode:	1/4 Bayonet
Assembly:	Soldering
Contact Resistance:	400V
Application:	Audio & Video
Gender:	Female and Male

Product Description

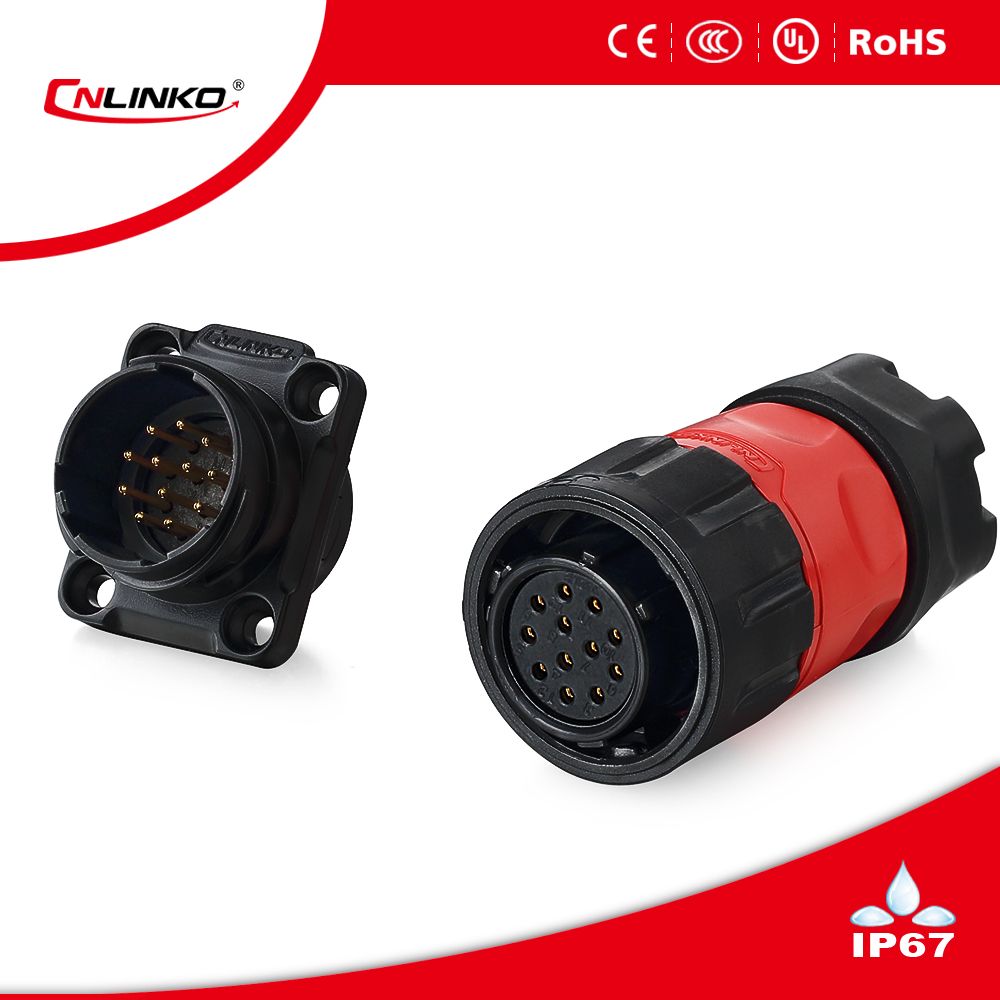

Cnlinko 9pin Terminal Plug and Panel Mount Socket Connector for Signal Equipment

YM-20 series product introduction

YM-20 series connectors, using highe-end injiection molding PBT material, ensuring stale performance, mult-core design of the product, while meeting the need of a number of power and signal equipmet , the central shell distintive logo, highlighting the lastest design cnlinko.

Data Sheet:

Cable Specification:	0.15mm2 ~ 0.2 mm2 /26~24AWG
Diameter Range:	Φ5.5mm ~Φ7mm
Contact Diameter x number:	Φ1.0×12
Rated Current (A):	5A
Operating voltage(AC.V.rms):	400V
Contact resistance:	<5mΩ
Withstanding voltage(AC.V)1minute:	1500V
Insulation resistance:	>500mΩ
Protection Level:	IP67
Durability:	≥500 times
Working Temperature:	-40°C~80°C
Connecting mode:	1/4 bayonet
Assembly wire:	Soldering
Housing&Insulation parts materials:	High-performance engineering plastics
with zinc alloy hardware and copper pins with silica gel materials waterproof cap UL94-V0 Flammability

Founded in 2004, Shenzhen Linko Electric Co., Ltd is a manufacturer in designing and manufacturing and marketing in the field of connectors.

We adhere to such principles"Integrity-base, quality-first, technological precedence&greater perfection. " After 10 years stabled developed, perfect management system was established, with creative, efficient, dedicated, rigorous R&D team, advanced production line.

Powerful product testing and quality testing laboratory and also covers dozens of professional files testing, excellent sales team and strong channels distribution net work.

Specializing in design high-performance industry connectors and approved by identification UL(E365869), CE, CCC, ISO9001-2008 and also with more than dozens of patents and international certifications.

We will always keep skills fresh and up-to data with international.

Cnlinko's products are widely used in variety of challenging enviroments, such as LED screen, LED lighting, Audio visual equipment, stage lighting, industrial automation equipment, heavy industrial equipment and the others.

Welcome to visit us and joint designing and develop new products, For the goal win-win cooperation and mutual benefit.
