Cnlinko Brand IP65 Cable Connector Modular Jack RJ45 Network Plug and Mount Socket for Signal Transmission

Name: Cnlinko Brand IP65 Cable Connector Modular Jack RJ45 Network Plug and Mount Socket for Signal Transmission
Brand: all-electronics-online.com
SKU: 803727345
Availability: InStock
Rating: 4.3 (126 reviews)

Price:	US $ 4.9-4.97/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	YT-RJ45-CPE-05-001&YT-RJ45-JSX-08-001
Certification:	Ce, CCC, ISO9001
Product Type:	RJ45
Rated Current:	1.5A
Rated Voltage:	1000V
Protection Level:	IP65
Connecting Mode:	Pull/Push
Assembly Wire:	1/4 Bayonet Connect Plug/Unplug
Durability:	>500times
Waterproof Circle:	Silica Gel
Flammability Rating:	UL94-V0
Application:	Signal
Gender:	Female and Male

Product Description

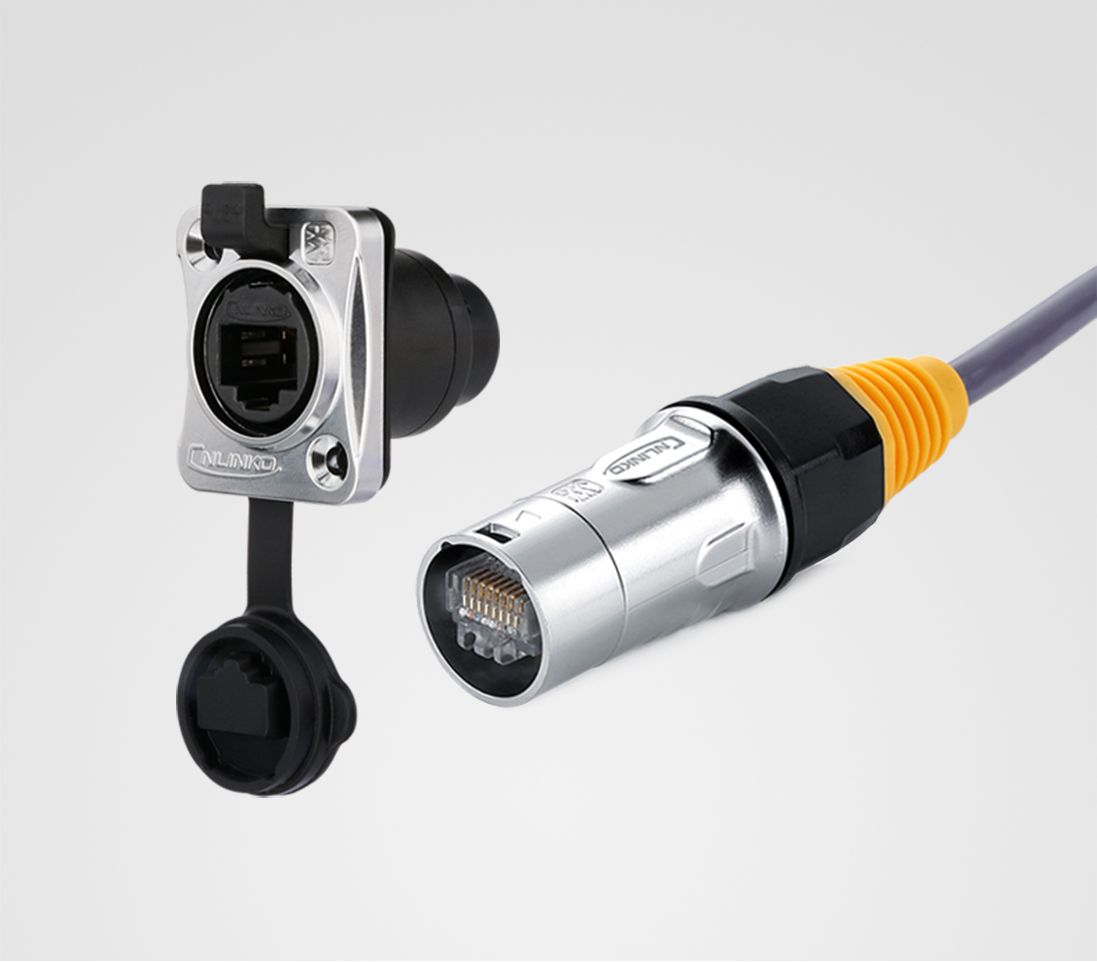

Cnlinko brand IP65 cable connector modular jack RJ45
network plug and mount socket for signal transmission

YT-RJ45 series introduction

YT-RJ45 can provide the solutions for signal transmission in harsh environments. Specially these connectors can apply for industiral ethernet in audio, buisness, amuse-ment, live stage action, DMX lighting, industrial and outdoor in network environments. YT-RJ45 series can provide cable jacket, assembly female plug, straight plug, cable coupler, protective style, it is the strongest protection for installation of the box with the protection level of IP65.

Data Sheet:
Cable Specification: 0.15 mm2 ~ 0.2 mm2 /26~24AWG
Diameter Range: Φ5.5mm ~Φ7mm
Contact Diameter x number:Φ1.0 x8
Rated Current (A): 1.5A
Operating voltage(AC.V.rms): 1000V
Contact resistance: <30mΩ
Insulation resistance:>500mΩ
Protection Level: IP65
Durability:≥500 times plug in /out
Working Temperature:-40°C~80°C
Connecting mode: pull/push
Housing&Insulation parts materials: High-performance engineering plastics
with silica gel materials waterproof circle
UL94-V0 Flammability

Packaging & Shipping
Normally, our price is based on our box packing.Customized packing is welcome , MOQ of printing customized box is 1000 pcs/modelDelivery Detail: 1-10 working days after received deposit .You may choose our shipping partner or your own partner .100% T/T in advance is required after confirming the order.

Our Services
CE,CCC,CUL,UL, ROHS, ISO9001:2008 Standard.Supply OEM service .We have professional quality control system and R&D department to strictly manufacture each product.100,000 pcs per month .National level laboratory , and have flexible production line, to make quick action to urgent customized needs.We will supply the best service to you . Anything ,please feel free to contact us at:
