| Prod Model: |
HSCO2-30W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: |
Automatic |
| Current: |
AC |
| Laser Type: |
CO2 |
| Engraving Machine Type: |
Wood, Paper, Leather, Cloth, Plexiglass, Epoxy |
| Usage: |
Wood, Paper, Leather, Cloth, Plexiglass, Epoxy |
| Brand: |
Holylaser |
| Marking Linear Speed: |
≤ 7000mm/S |
| Repeat Precision: |
± 0.001mm |
| Product Name: |
Nonmetal Marking Machine Hsco2-30W |
| Marking Style: |
2D, 3D |
Product Description

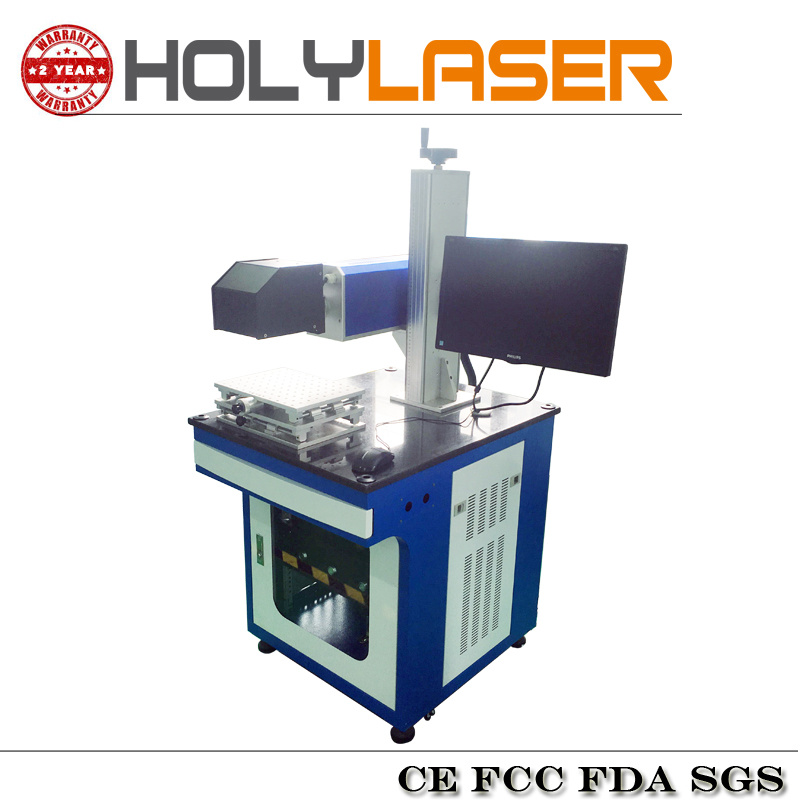

Description of the HS CO2-30W nonmetal marking machine
| marking scope (mm) |
70*70, 110*110, 175*175, 300*300 mm |
response time |
0.8ms |
Extender lens |
optional |
laser wavelength |
10.64MM |
output power |
30w |
min. line width |
0.2mm |
marking speed |
≤7000mm/s |
repeatability precision |
±0.0001mm |
marking depth |
≤6mm |
min. character |
0.8mm |
pulse frequency |
20khz |
highest resolution |
65525 |
weight |
80kg |
size for machine |
1080*550*1338 |
marking style |
plane / rotary |
Co2 nonmetal laser engraving marking machine is a gas laser machine whose frequency band
wave length of infrared light is 10.64 um. CO2 gas is filled in the discharge tube as the mediu
to produce laser, when high voltage is added to the electrode, it will produce glow discharge
in the discharge tube and then the gas molecule will discharge laser.After the energy of laser is
strengthened, it will form the laser beams to produce the materials. Computer-controlled resonance
mirror can chagne the path of the laser beams so that automatic marking can be accomplished.
Feature of HS CO2-30W Nonmetal Marking Machine
1 Adopted back focalization, laser power is controlled by the software and serially adjustable.
It is applicable to fine marking on nonmetal materials with low requirements.
2 Adopts RF metal laser tube, imported from USA, characterized by excellent performance and
long life time <20k hours>.
3 Adopting high-speed galvanometer system with high speed, high precision and stable performance.
4 Adopting imported optics lens, low loss, excellent focalization performance.
5 The marking software is mightiness ,under WINDOWS interface, compatible with CORELDRAW,
AUTOCAD, PHOTOSHOP etc. a variety of software output files. Support PLT, AI, DXF, BMP and other
documents, directly using SHX, TTF font. Support automated coding, serial number, batch number, date,
bar code and two-dimensional code marking.
6 Can quickly mark letter,figure,graphics or autocoding ,serial No., batch No.,barcode,2 D code, etc.
on metal or nonmetal surface(plastic,silicon or porcelain,etc.) which are precise, permanent.,non-polluting
and environment-friendly.
7 Be applicable to production line for flying marking.
8 Rotary worktable system is optional, thus, accomplish marking on cambered surface.
SAMPLES:
Applicable for nonmetal marking machine(HSCO2-30W)
- Applicable materials:Can be used in wood,paper,leather,cloth,plexiglass epoxy,acrylic,unsaturated polyester resinand other non-metal materials.
- Applicable industry:it can be widely used in leather ,food ,beverage,cloth,electronic,meter,communication instruments,package,etc.can be cooperate with production for online marking.
Trade terms:
Mini.order :1 unit
Price term:FOB price
Delivery crcle:in 7 days(customized model is negotiable)
After-sales services:
- Two years guarantee period for product quality. (man made damaged is negotiable).
- Lifelong maintenance and spare parts supply.
- Free design of fixtures as customers required.
- Free training for machines installation and operation of the staffs.
- Free samples marking of customer provided.

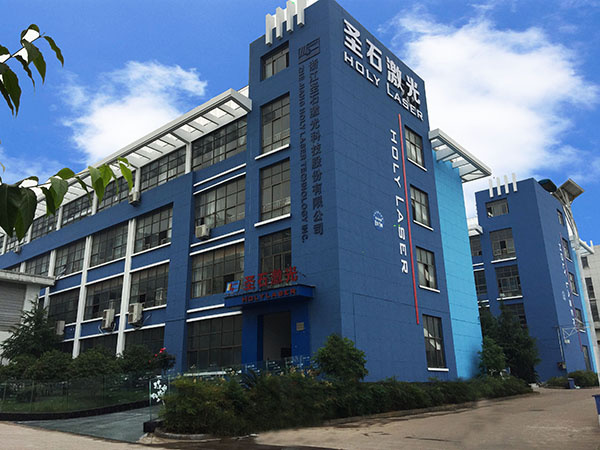

Factory profile:
if you want to get more details information,please contact me directly!!!
welcome warmly if you can visit our factory!!!
Zhejiang Holy Laser Technoloy Co., Ltd, is a factory Located in YiWu City, ZheJiang Province. We specialize in: 3D laser machine, Large size glass engraving machine, Laser marking machine, Laser cutting machine, etc.
We are here because we are qualified for serving you by the bellow advantages:
1, We can supply machine in 7-10days once you confrim the order.
2, We supply complete service: Machine, design, crystal and LED base factory info. Design for free, technology support for all liftime, training for free.
3, We have our own factory garden that more than 1600squre meter. Wihch suport by government in yiwu economic development zone.
4, All our productions with CE, FCC, FDA, SGS, TUV certification s. Cause suitable for all city in the world.
5, We also have our son desiner team which have more than 15 years experience. Can supply you 2D or 3D desing with your special photo or supply beautiful design in tock.
You are always welcome to visit our factory in any time, , you are here not just our customer, most important is we are friends.
