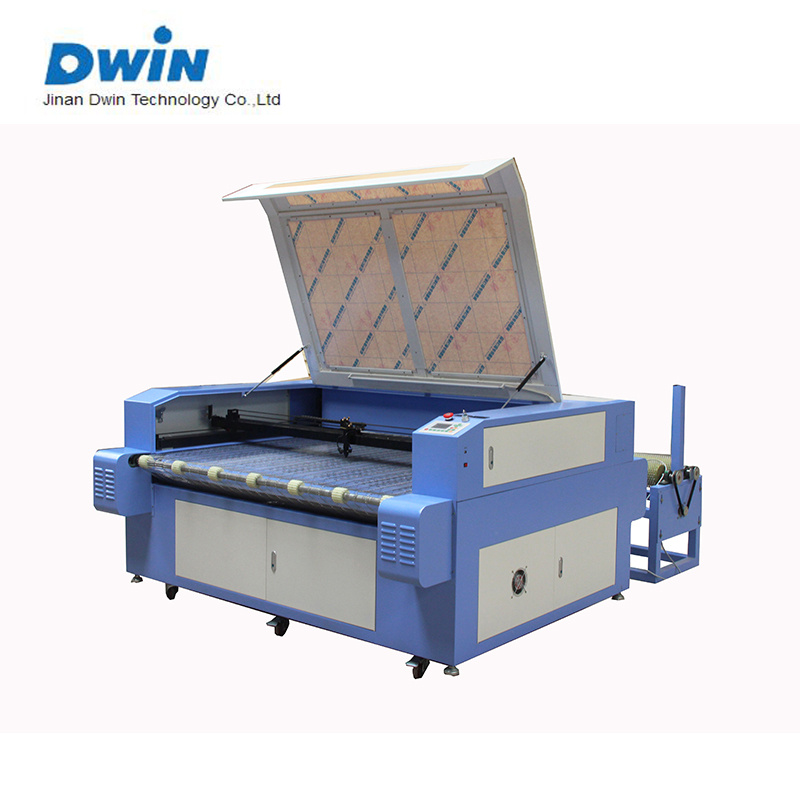

CO2 Laser Cutting and Engraving Machine with Auto-Feeding System

Name: CO2 Laser Cutting and Engraving Machine with Auto-Feeding System
Brand: all-electronics-online.com
SKU: 717061182
Availability: InStock
Rating: 5 (119 reviews)

Price:	US $ 5300/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DW1610A
Name:	Auto Feeding Laser Cutting Machine
Certification:	Ce, ISO, FDA
Laser Power:	80W, 100W, 150W, 260W
Cutting Thickness:	0-35mm
Cutting Area:	16001000mm/14001000mm or Customized
Resetting Positioning Accuracy:	0.01mm
Motor:	Servo or Stepper as Your Option
Control Configuration:	Redcam
Guide Rail:	Taiwin Hiwin Square Rail
Table:	Honey Nest or Blade Table

Product Description

CO2 Laser Cutting and Engraving Machine with Auto-Feeding System

Characteristics:

1.Fast curvilinear cutting function:It can cut via any curve fast continuous cutting, the laser heads moving in beautiful arc just evoke your imagination of top grade racing car.
2.To fully support design software, such as CAD, Coreldraw, Photoshop, friendly man-machine interface, live close to the industry needs.
3.Multi-document function:SC series equipment can store as many as 256 working documents, in the case of without the computer, the user can select files in the engraving machine, the mass production of 256 different products.

Machine Parameter

No.	Description	Machine parameter
1.	Machine model	DW1610
2.	Laser medium	Co2 gas
3.	Working area	1600*1000mm
4.	Working table	B type mesh belt
5.	Laser power	80W/100W/130W(optional)
6.	Power Supply	220V/50Hz/60Hz
7.	Min line width	≤0.15mm
8.	Positon accuracy	±0.05mm
9.	Repetition accuracy	0.02mm
10.	Cutting speed	700mm/s
11.	Guide rail	Hiwin from Taiwan
12.	Transmission method	Belt Transmisson
13.	Drive system	Leadshine driving system and stepper motor
14.	Cooling system	Water-cooling
15.	Control system	DSP
16.	Control software	Coreldraw, Photoshop, AutoCAD, etc
17.	Graphic format support	PLT, DXF, BMP, JPG ,AI ,ect
18.	Working environment	0-45ºC
19.	Operating Humidity	5-95%
20.	Machine warranty	2 years

Applicable materials

Genuine leather, artificial leather, soft leather, decorative leather, packaging leather.Etc all kinds of leather, leather materials, pure cotton, real silk, all kinds of chemical fiber, cowboy, and so on.All kinds of textile materials or non woven material.
Typical case:Clothing.Footwear, toy, luggage, wild camp, car seat cut, such as the car chair affixed cloth embroidery, special shaped trademarks, airbags, such as laser cutting, garment leather carve patterns or designs woodwork hollow cut.

Welcome to contact with Judy

Jinan Dwin Technology Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of laser machines, laser engraving and cutting machine, laser marking machine, CNC routers and relevant advertisement products. Dwin has gained CE, FDA and ISO certifications. Our company has successfully produced DW series of products which enjoy a good reputation. Excellent quality and fast service make our products spread over Europe, America, the Middle East and Southeast Asia.

Dwin mainly produces laser engraving machines, laser cutting machines, laser marking machines, Advertisement CNC routers, marble CNC routers and CNC woodworking machines.

Dwin machines are widely used in garment cutting, craftwork, rubber plate, package printing, leather cutting, sign marking, wood furniture, construction, decoration, stone engraving and mould making. Dwin CNC machines have greatly improved the efficiency of relevant industries and the quality of relevant products.

Dwin constantly pursues the philosophy of "technical innovation, cooperation and all win", together with you for a brilliant future. We are sincerely looking forward to continuous instruction and support from our clients.
