CO2 Laser Engraver 3-Axis Dynamic Focus System 1200X1200mm Working Area

Name: CO2 Laser Engraver 3-Axis Dynamic Focus System 1200X1200mm Working Area
Brand: all-electronics-online.com
SKU: 681177581
Availability: InStock
Rating: 4.8 (87 reviews)

Price:	US $ 5600/Set
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Set
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	113
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.:	CO2-100s
Certification:	SGS, Ce
Control:	Automatic
Condition:	New
Power:	10watt, 30watt, 50watt
Export Markets:	Global
Engraving Machine Type:	Laser Engraving Machine
Laser Type:	CO2 Laser
Current:	AC
Usage:	Wood, Leather,Bamboo,Textile

Product Description

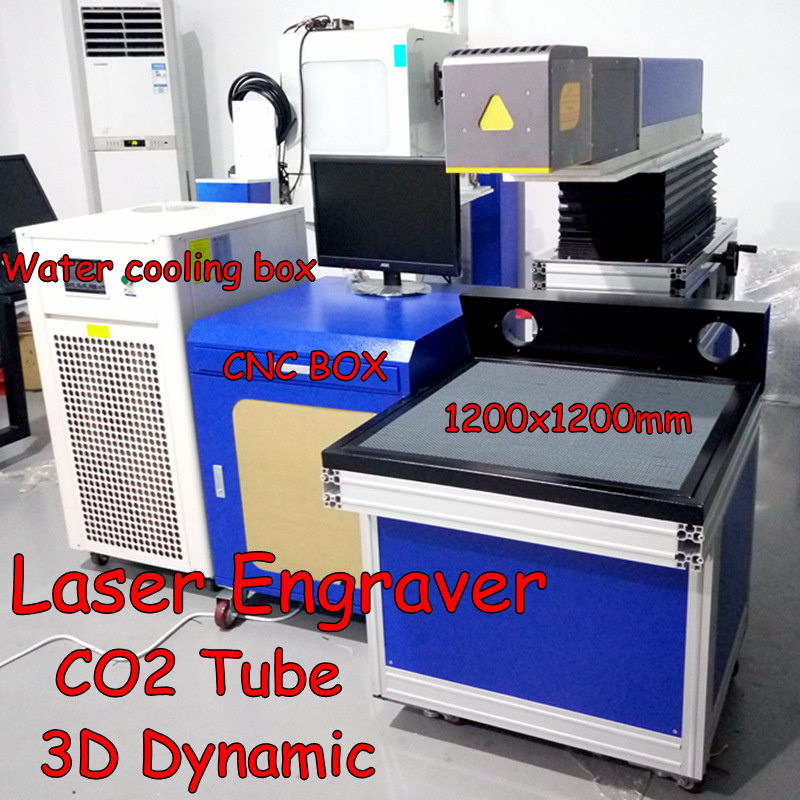

CO2 Laser engraver 3-Axis Dynamic Focus system
1200x1200mm working area

Model	CO2-100s
Laser Power:	100W
Wavelenth:	10.6μm
Beam Quality	M2:<1.6
Laser source lifetiem	≤100,000hrs
Q switch Pulse Width	1kHz-50kHz
Standard Marking Area:	600mm600mm-12001200mm
Marking Depth	≤5.0mm(Depend on material)
Minimum Line Width	0.05mm(depend on marking area)
Minimum letter	0.5mm(depend on marking area)
Resetting positioning accuracy	±0.002mm
Marking Speed:	≤7000mm/s
Electrical Requirements:	Ac220V±10%.50HZ.20Amp
Unit Power	≤3.0kw
Cooling mode	Water cooled
Operational Temp & Humidity Range	1-35˚C,5%-80%, Non-condensing

Supported materials
The vast majority of non marking of metal materials and metal materials, such as paper packaging, plastic products, labels, paper, leather, cloth, glass, ceramics, plastic resin, wood products, PCB boards.

How it works

1, used in medicine, such as paper packaging boxes, drug glass packaging, etc.
2, used in the cosmetics industry, such as paper boxes, glass boxes, plastic boxes, etc.
3, used in tobacco lines, such as each smoke to mark the area code, etc.
4, food and beverage packaging
5, the liquor packaging box
6, garment accessories
7, electronic components, such as capacitors marked on the certification mark, etc.
8, chemical products
9, building materials on the logo PVC pipes, etc.
10, the manufacturer's LOGO logo text information, etc.

Can it use for cutting?

Cutting paper sheet,thin leather

Who makes this happen?

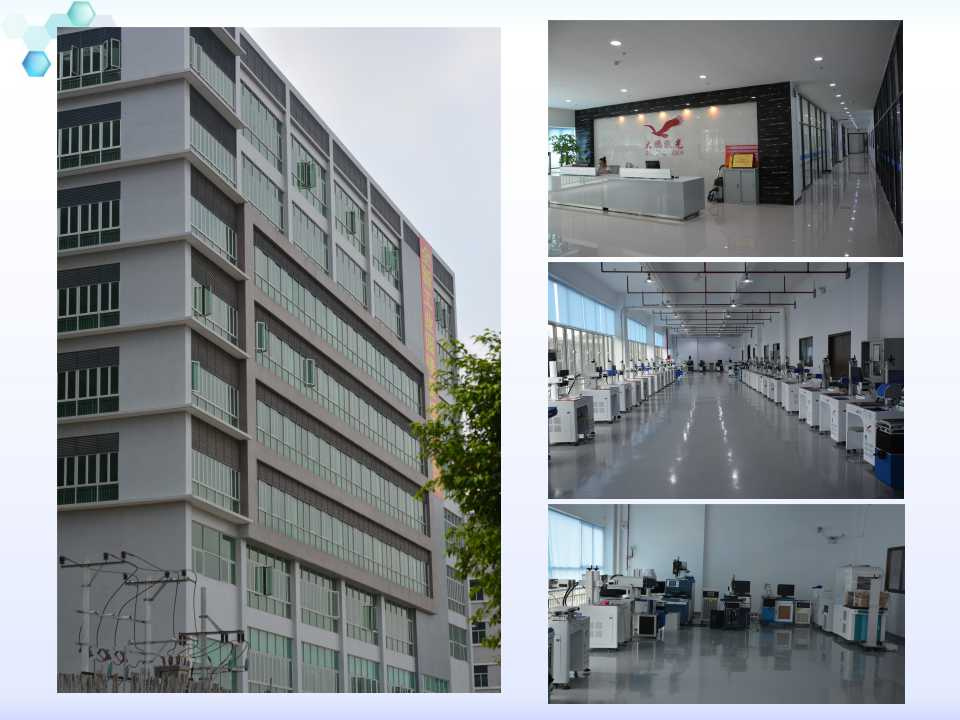

Founded in 2005, Shenzhen Dapeng Laser Technology Limited is the market leader in developing, manufacturing and servicing products and systems for laser marking, laser welding, laser cutting and engraving. The company provides equipment to a wide range of markets including medical industries, jewelry, automotive, aerospace, military, semiconductor and solar industries as well as the battery, electric vehicle, electronics and general industrial markets. With a decade of cumulative laser equipment design and manufacturing expertise, Dapeng Laser is able to offer standard and custom designs that solve challenging OEM applications. Dapeng Laser is CE and FDA certified. Our laser marker systems are highly precise, most reliable, and cost-effective. We have sold over thousands of systems worldwide for last 10 years. Our products can be found in Europe, America, Russia, India, Vietnam, Thailand, Indonesia, Egypt, Brazil, Colombia, and South Africa, among others.

Since our inception, customer support has been a top priority and that standard still remains today. We hope that we will have a chance to give you a great laser solution with Dapeng Laser products.

Our mission is to be a full service provider of industrial laser equipment that emphasize the quality, reliability, safety, cost effectiveness, and technical support.
