| Prod Model: |
102 |
| Mode: |
Dml-CO2-100W |
| Laser Wavelength: |
10640nm |
| Laser Power: |
100W/120W/150W |
| Marking Area: |
300*300mm |
| Marking Speed: |
7,000mm/S |
| Minimum Line Width: |
≤0.15mmt≤0.3mm |
| Minimum Character: |
0.4mmt0.4~0.6mm |
| Repeating Orientation Precision: |
+0.003mm |
| Cooling Mode: |
Air Cooledtair Cooledtwater Cooled |
| Warranty: |
1 Years |
Product Description

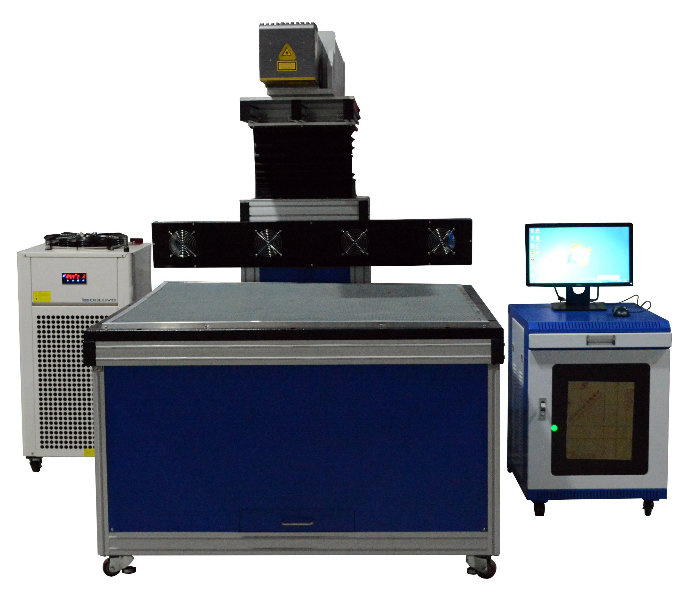

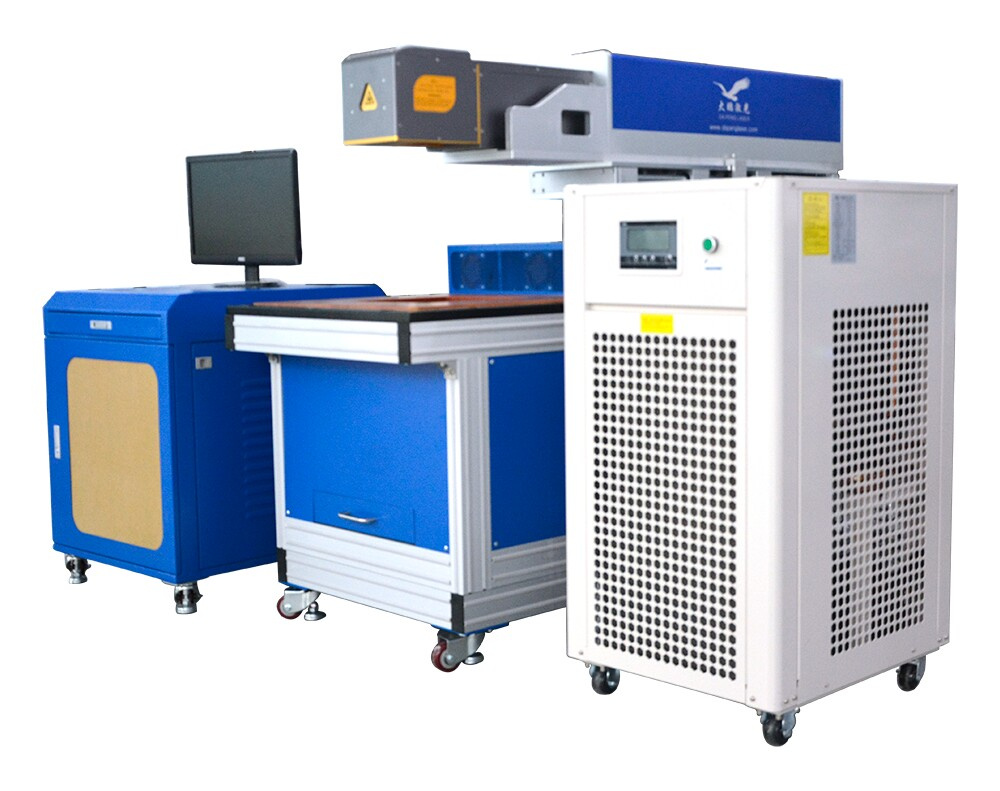

Leppard laser engraving desktop C02 marking machineEngravable materials:This CO2 laser marking machine is suitable for the majority of non-metal materials, for example leather, cloth, bamboo, wood, paper, ABS, PVC, epoxy resin, acrylic, glass, construction ceramics, organic materials, PMMA sheet, plastic, rubber and so on.
Technical Specification
Model | DML-CV100 | DML-CV120 | DML-CV150 |
| Laser wavelength | 10640nm |
| Laser power | 100W | 120W | 150W |
| | | 200mm×200mm 300×300mm (optional) |
| Marking speed | 7,000mm/s |
| Minimum line width | ≤0.15mm | ≤0.3mm line width varies in according to labeling scope |
| Minimum character | 0.4mm | 0.4~0.6mm |
| Repeating orientation precision | +0.003mm |
| Cooling mode | water cooling | water cooling | Water cooling |
CO2 laser marking machine features CO2 laser marking machine is the use of laser beam on the surfaces of different materials on permanent mark. Effect of marking is exposed through the deep material surface material evaporation, so as to cut the exquisite design, logo, date, LOGO or text, the CO2 laser marking machine is mainly used in some of the more sophisticated, high precision occasions. Used in food, medicine, wine, electronic components, integrated circuit (IC), electrical appliances, mobile phone communications, building materials, PVC pipe industry, CO2 laser marking machine is the main advantage is no consumables and permanent.Sample works but not limited:
Support and warrantyMANUALS AND INSTRUCTIONAL VIDEOS
An Operation Manual and instructional video that contains clear explanations of the Installation process and the usage of the software, the control panel and other features.
WARRANTY AND PROFESSIONAL SUPPORTTo make sure your machine never stops running, in the unlikely event that your equipment needs technical service, we have an extensive inventory of spares parts as well as technical support at any of our fully stocked facilities in China and the others oversea(India), DA PENG LASER, also offers a comprehensive warranty policy for manufacture deffects.
Shipping and trainingINSTALLATION, TRAINING, STOCK AND DELIVERYUp to 8 hours of training (2 days of 4 hours) in the Installation, Maintenance & Operation of the Laser Machine, as well as the included software is available Free of charge at our premises. Unlimited technical support is offered via telephone, e-mail and other means. Optional On-Site Installation and Training by our Tech Support Engineer is available for an additional charge at the customer's request. We have 1 fully stock facilities and other plants in the China and can deliver anywhere in the world.
