Coarse Peel Ply G10 Insulation Sheet

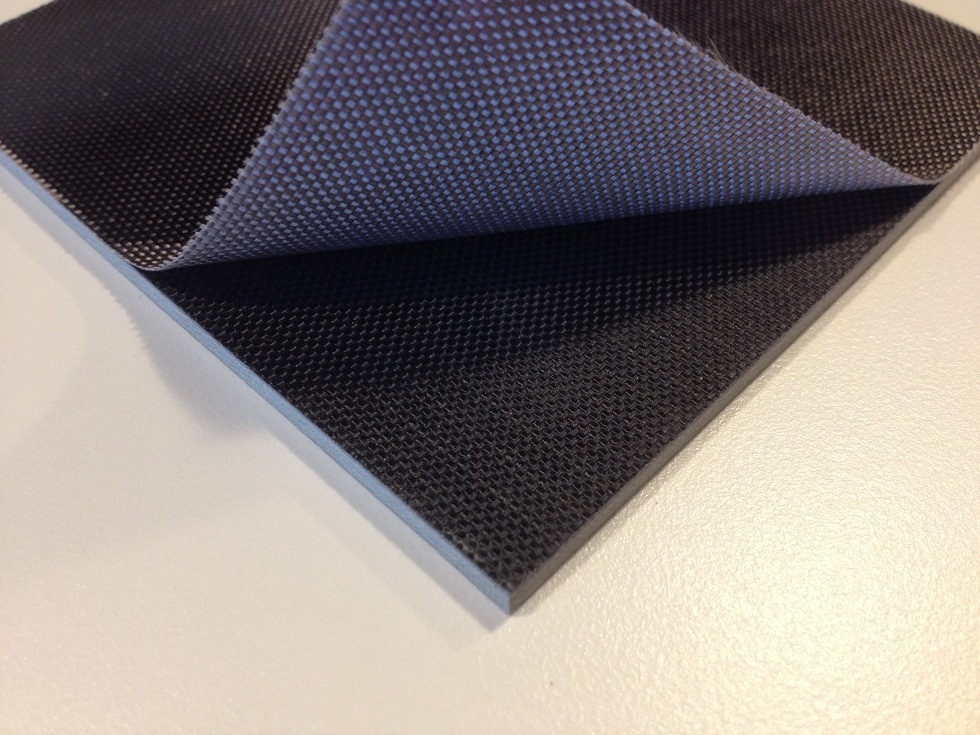

Name: Coarse Peel Ply G10 Insulation Sheet
Brand: all-electronics-online.com
SKU: 776919565
Availability: InStock
Rating: 4.3 (127 reviews)

Price:	US $ 9-10kiloggram
Trade Terms:	FOB,CFR,CIF
Min Order:	250Kilogram
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	G10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sheet Size:	1020*1220mm
Thickness Range:	0.5mm~50mm
Minimum Order Quantity:	500 Kgs in a Lot
Packaging Details:	500-1000kgs Per Pallet or as Required
Lead Time:	7-15 Days After Confirmed
Application:	Insulating Varnish
Type:	Insulation Sheet
Chemistry:	Hybrid Insulation
Material:	Fiberglass
Thermal Rating:	B 130
Maximum Voltage:	20KV~100KV
Certification:	RoHS
Color:	Colored G10
Brand:	Nova

Product Description

Applications:
We supply first-class Coarse & Fine G10 laminate, it has high flexural & impact strength, good machining quality, especially suitable for making Knife handle, and other sport appliances.

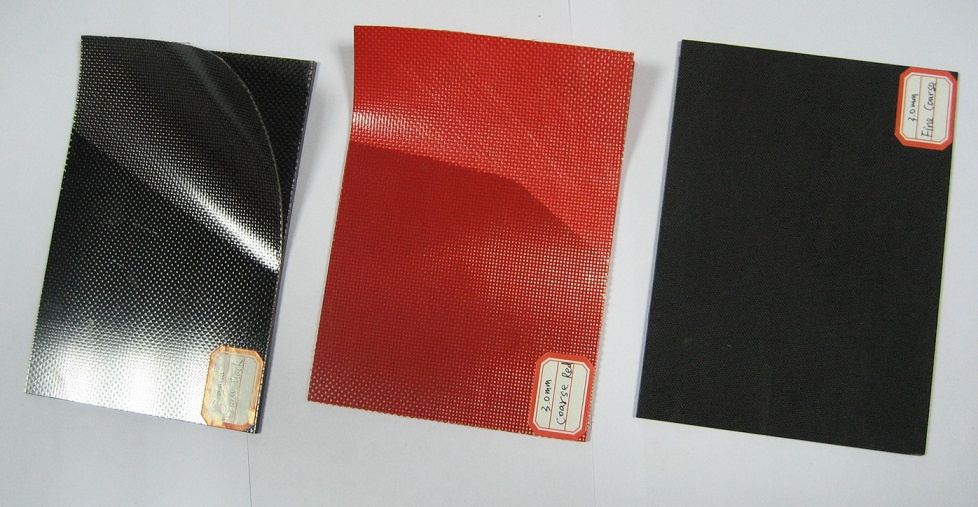

Nova supplys G10 in Solid colors or Multi-layered colors.

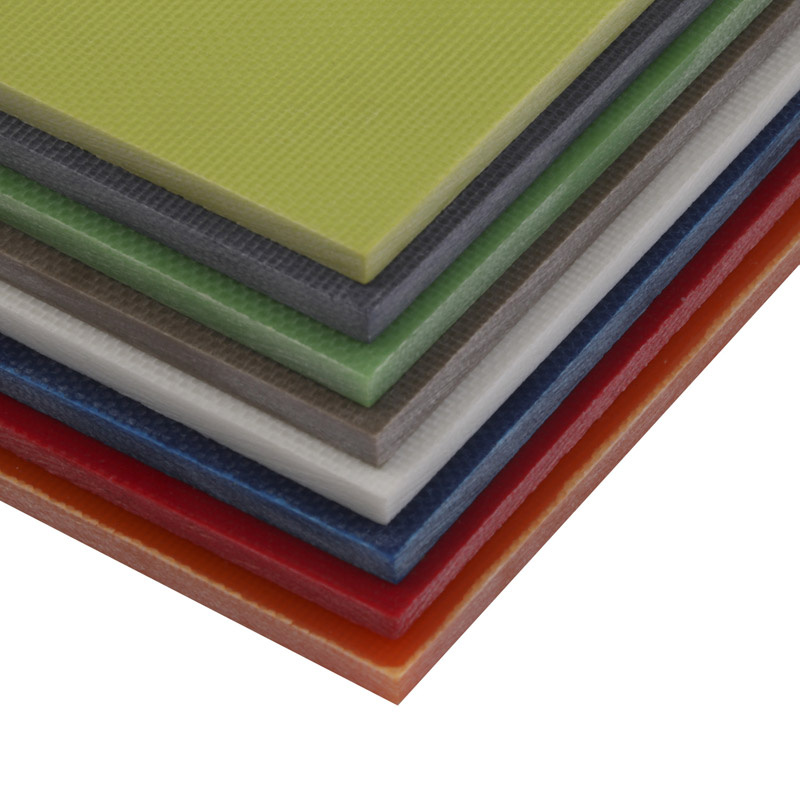

Usual colors available in: Black, White, Red, Yellow, Blue, Orange, Olive Green, Gray, Brown, and many different color combinations,such as Black+Red, Black+Orange+White, Black+Olive Green+Brown+Gray, etc. Color ratio can 2:2 or 3:3 or as required.

Advantages:
* very bright color, especially suitable for knife handle application.
* absolutely no foreign matter or defects of any kind.
* very closed thickness tolerance, flat and straight panel suitable for CNC machining.
* high flexural & impact strength.
* good structure with clear layer.
* customize color according to sample or color code.

Specifications:
1) Grade: G10
2) Color: Black,Red or any other customized color
3) Thickness Range: 0.5mm to 50mm
4) Sheet Size: 915*1220mm; 1020*1220mm
5) Min. Order Quantity: 250 kgs in a lot

Nova specializes in manufacturing & machining Electrical Insulation Laminates since 2001.

We offer high quality materials & machined parts to a variety of insulating applications, especially to Mechanical, Electrical, PCBs, Surfboard and Knifehand Industries.

Nova supplies the following products:

1) Epoxy Glass Fabric Laminated sheets (G10/G11/FR4/FR5)

2) Phenolic Paper Laminated sheets (X/XX/XP/XPC)

3) Phenolic Cotton Cloth Laminated sheets (C/CE/L/LE)

4) Others: Colored G10, Anti-static G10 ESD, Phenolic Rods/Tubes, Epoxy Rods/Tubes, G7 Glass Reinforced Silicone, and many others.

Custom machining, including cutting, sanding, routing, drilling, turning, slotting, and assembling, are welcome.

Just send us inquiries or drawings today, we appreciate an opportunity to service your insulating needs.
