Coating Wire Wound Resistor/High Power Resistor
| Price: |
US $ 0.1-49.9/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
RX26 |
| Environmental Certification: |
ISO14000 |
| Quality Certification: |
ISO9001: 2008 |
| Safety Certification: |
CQC 03003095~3097 |
| Other Certification: |
RoHS |
| Resistance: |
Fixed Resistor |
| Function For Resistance: |
Protective Resistor |
| Installation: |
DIP Resistor |
| Material: |
Wire-wound Resistor |
| Package Type: |
Surface Mount |
| Type: |
Fuse Resistor |
| Brand: |
Liwang |
Product Description
Product description
1. Professional resistor manufacturer.
2. Good overload resistor.
3. RoHS,ISO9001,ISO14000,TS16949
4. OEM.

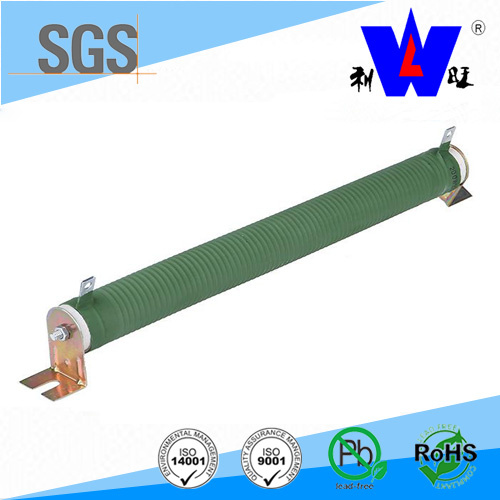

| Products | RX26 30w-3000w coating tubular wirewound resistor with TS16949 certificate |
Features
| 1. Good overload and heat durability capacity, the use life is longer than the others.
2. The resistors surface is coated in green.
3. Operating ambient temperature: -55° C ~ +275° C.
4. Resistance tolerance : ± 5%, ± 10%. |

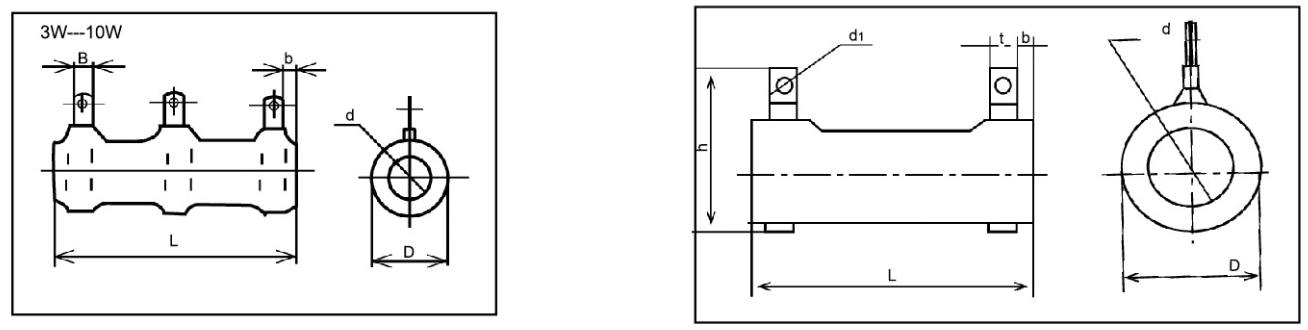

Part
NO. |
Power
|
L1± 2 |
L2± 3 |
L3± 3 |
L4± 3 |
H1± 1 |
H2± 2 |
S± 0.5 |
F± 0.5 |
W± 1 |
T± 0.5 |
Resistance
Range |
RX26-25 |
25W |
40 |
60 |
75 |
100 |
20 |
50 |
5.0 |
3.5 |
13.0 |
5.0 |
0R22~4K7 |
RX26-50 |
50W |
82 |
100 |
114 |
140 |
30 |
58 |
6.0 |
5.0 |
14.0 |
6.0 |
0R22~10K |
RX26-100 |
100W |
132 |
150 |
174 |
200 |
30 |
58 |
6.0 |
5.0 |
14.0 |
6.0 |
0R22~15K |
RX26-150 |
150W |
162 |
180 |
194 |
220 |
30 |
58 |
6.0 |
5.0 |
14.0 |
6.0 |
0R33~18K |
RX26-200 |
200W |
207 |
225 |
240 |
265 |
30 |
58 |
6.0 |
5.0 |
14.0 |
6.0 |
0R33~22K |
RX26-250 |
250W |
292 |
310 |
324 |
350 |
30 |
58 |
6.0 |
5.0 |
14.0 |
6.0 |
0R36~24K |
RX26-300 |
300W |
258 |
270 |
285 |
328 |
41 |
85 |
7.8 |
6.0 |
23.0 |
6.0 |
0R33~27K |
RX26-400 |
400W |
322 |
344 |
360 |
406 |
41 |
85 |
7.8 |
6.0 |
23.0 |
6.0 |
0R33~30K |
RX26-500 |
500W |
322 |
344 |
355 |
406 |
51 |
95 |
7.8 |
6.0 |
26.0 |
8.5 |
0R33~33K |
RX26-1000 |
1000W |
290 |
315 |
325 |
375 |
71 |
110 |
10.0 |
8.0 |
32.0 |
8.5 |
0R33~36K |
RX26-1500 |
1500W |
405 |
420 |
435 |
505 |
71 |
110 |
10.0 |
8.0 |
32.0 |
8.5 |
0R33~39K |
RX26-2000 |
2000W |
495 |
525 |
540 |
610 |
71 |
110 |
10.0 |
8.0 |
32.0 |
8.5 |
0R33~43K |
| Note: We can make the dimensions and specifications according to customer' s requirements, also can product multiple resistance value of one ceramic tube or cancel the support. |
| Test Item | Test Condition | Performance |
Temperature Coefficient
|
The resistance value at normal temperature and normal temperature added 100° C, calculate per ° C resistance value change rate.
|
± 350ppm/° C |
Short Time overload
| 10× rated voltage or Max. overload voltage(get the lower) for 5 seconds. |
R≤ ± (2%R0+0.05Ω ) |
Resistance to soldering Heat |
Immerge into the 350± 10° C tin stove for 2~3seconds. |
R≤ ± (1% R0+0.05Ω ) |
Load life in humidity
|
Overload rated voltage or Max. working voltage(get the lower) for 1000 hours(1.5hours on and 0.5 hours off) at the 40± 2° C and 90~95% relative humidity. |
R≤ ± (5% R0+0.05Ω ) |
Load life in heat
|
Overload rated voltage or Max. working voltage(get the lower) for 1000 hours(1.5hours on and 0.5 hours off) at the 70± 2° C. |
R≤ ± (5% R0+0.05Ω ) |
AII products of the size,electronical performance can be designed. If you have any questions or requirements, please contact us freely in any time.
Our product will the best choice for you.
Welcome to provide us your specifications. We will submit the best quotation shortly.
Don't hesitate to contact us, we will try our best to satisfy with you within our capability.

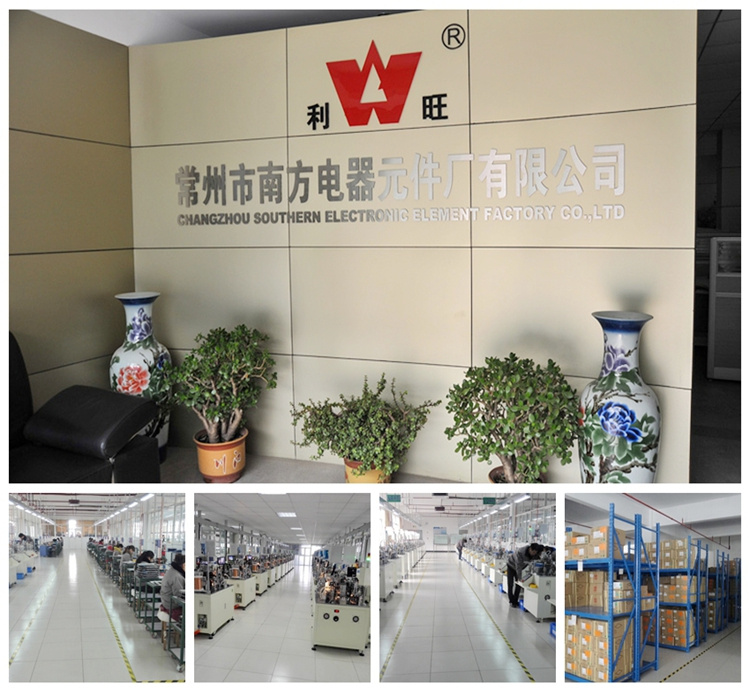

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.
Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.
Factory' S quality policy: "product quality, service in advance, customer satisfaction".
Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
