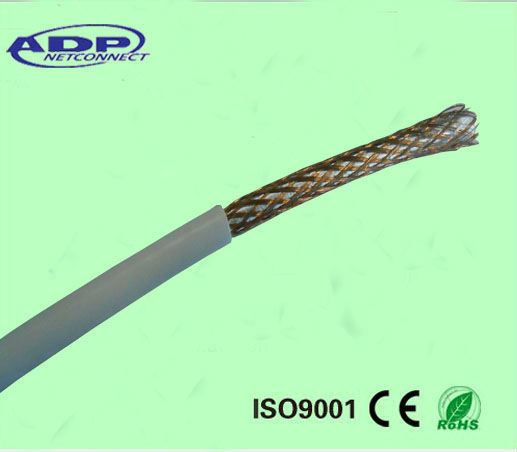

Coaxial 59 Cftv Cable CCS Al Braiding

Prod Model:	coaxial cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Conductor Diameter:	0.81mm
Braiding Wire:	Cu CCA Al Al-Mg
Braiding Number:	64/96/112/128/144
Braiding Wire Diameter:	0.1 /0.12 /0.16/0.18/ 0.2mm
Al-Foil:	Non-Bonded Al-Foil, Bonded Al-Foil, Double Bonded
Impedance:	75+/-3 Ohm
Color:	White&Black
Length:	100m/200m/305m/500m...Optional
Delivery Time:	30days After Receiving The Deposit
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS

Product Description

coaxial 59 CFTV cable CCS  Al braiding Application: Used in cable TV operations, Computer net-working etc. Construction: Solid annealed bare copper conductor polythelene insulated shielded with polyester backed aluminium tape and additional shielding with fine aluminium braid protected with polyester tape wrapping and sheathed with PVC. Specifications: 1)0.80mm Solid Bare Copper +3.55mm Foamed PE +Bonded AL Tape+60% AL Braid+ 6.20mm PVC 2) Customers' specifications are welcomed. Note: 1) Center conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available; 2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, And double non-bonded Al-foil are available; 3) Braiding wire: AL, Bare Copper and Tinned Copper available; 4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available; 5) Braiding net: 32, 48, 64, 72, 80, 96, 120, 128, 144 and more available; 6) Braiding coverage: Between 30- 97% available; 7) PVC jacket of Flame retardant, UV, or UL available. Characteristics: Impedance(phm): 75 Velocity Ration(%): 85 Capacitance(pF/mttr): 53 Return Loss(dB/100m): 30-300MHz >30 300-550MHz >24 Bending Radius, min(mm) 65 Attenuation: @25degree (dB/100meters) 55MHz: 6.73dB 83MHz: 8.04dB 187MHz: 11.81dB 211MHz: 12.47dB 250MHz: 13.45dB 300MHz: 14.60dB 350MHz: 15.71dB 400MHz: 16.73dB 450MHz: 17.72dB 500MHz: 18.70dB 550MHz: 19.52dB Packing: 1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request; 2) Inner packing: Wooden reel, plastic reel, and paper reel available. 3) Outer packing: Carton box, pull out box, pallet available. 4) Other packing available according to client's request. Supplied in 90 meters&305 meters project packaging.
