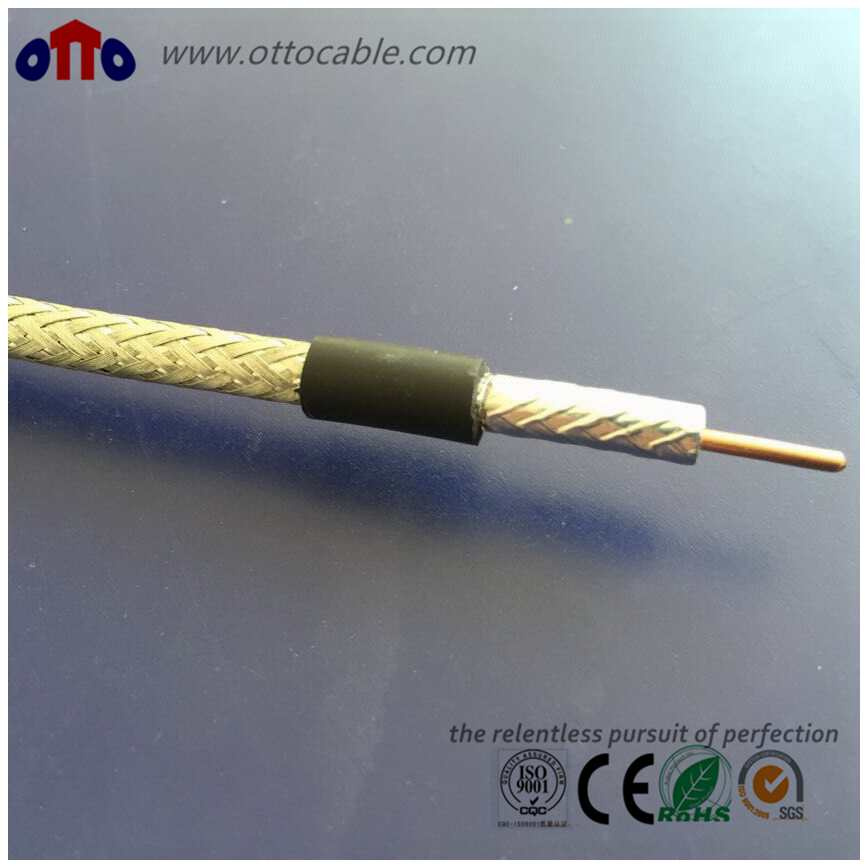

Coaxial Cable 4c-Fb with 3.8mm Foam PE

Name: Coaxial Cable 4c-Fb with 3.8mm Foam PE
Brand: all-electronics-online.com
SKU: 765604035
Availability: InStock
Rating: 4.5 (61 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	4C-FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ottocable:	4c-Fb
Inner Conductor:	0.81 CCS
Insulation:	3.8 Foam PE
Out Conductor:	0.12 Al Wire Braid
Jacket:	6.1 PVC
Application:	CATV,CCTV Systems
Cover Material:	PVC
Certification:	RoHS
Conductor Material:	0.12al
Type:	Coaxial
Wire Core Material:	Copper Clad Steel
Model:	4c-Fb
Brand:	Ottocable

Product Description

4C-FB

Construction

	Material	Diameter(mm)	Remarks
Inner Conductor Insulation Out conductor Jacket	CCS Foam PE AL wire Braid PVC	0.81 3.8 0.12 6.1	Per customer's requirements: Out conductor could be 48,64,80 or 96 BC wires braiding; Jacket could be PVC

Mainly be used in for CATV,CCTV systems and satellite systems or security systems

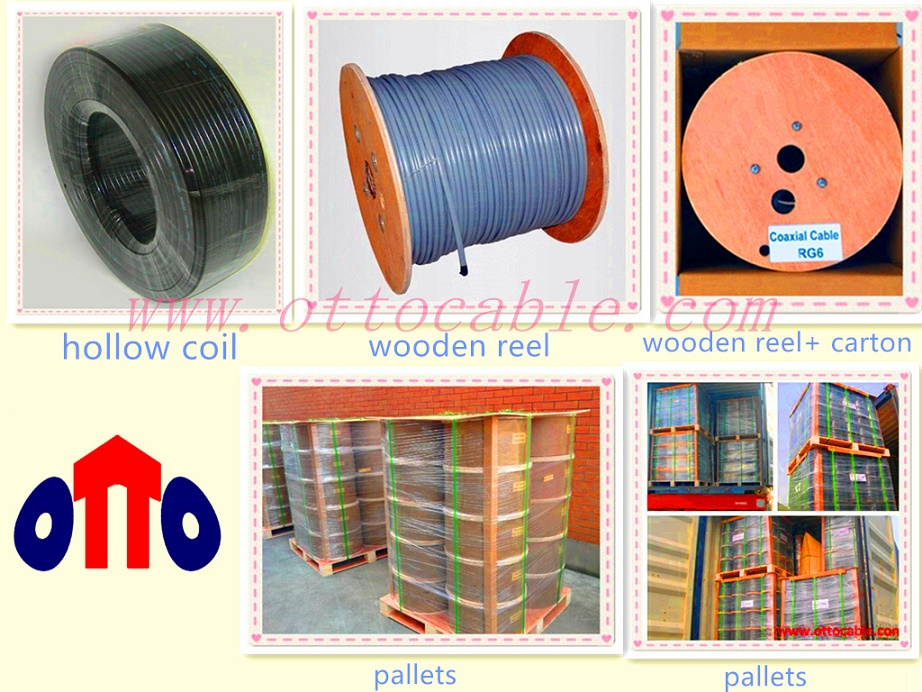

Packing:1000FT, 500FT/wooden reel, 1000FT, 500FT/Reel In Box,
300m/wooden reel, 250m/wooden reel, 100m/easy pull box,
Or according to customer's requirements

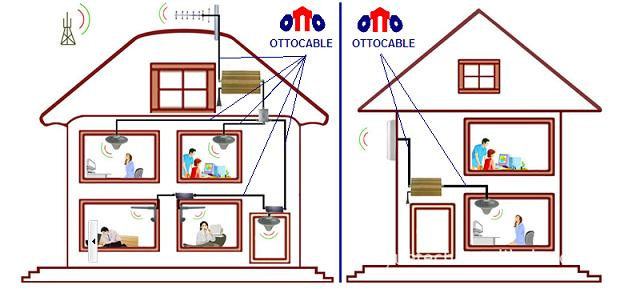

Our cables are widely used on TV antenna signal transmission, you can choose following cables terminated with different types' connector as per your equipments.

Company Link: http://ottoding.en.made-in-china.com/

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
