Coaxial Cable 50 Ohm D-Fb Series 8d-Fb/Computer Cable/ Data Cable/ Communication Cable/ Connector/ Audio Cable

Name: Coaxial Cable 50 Ohm D-Fb Series 8d-Fb/Computer Cable/ Data Cable/ Communication Cable/ Connector/ Audio Cable
Brand: all-electronics-online.com
SKU: 810609905
Availability: InStock
Rating: 4.5 (85 reviews)

Price:	US $ 18-30/Roll
Min Order:	200/Roll
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	coaxial cable 50 ohm D-FB Series 8D-FB
Application:	Coaxial Cable
Color:	Black
Type:	Coaxial
Connector:	RCA
Certification:	ISO9001
Species:	Coaxial
Brand:	Hanli

Product Description

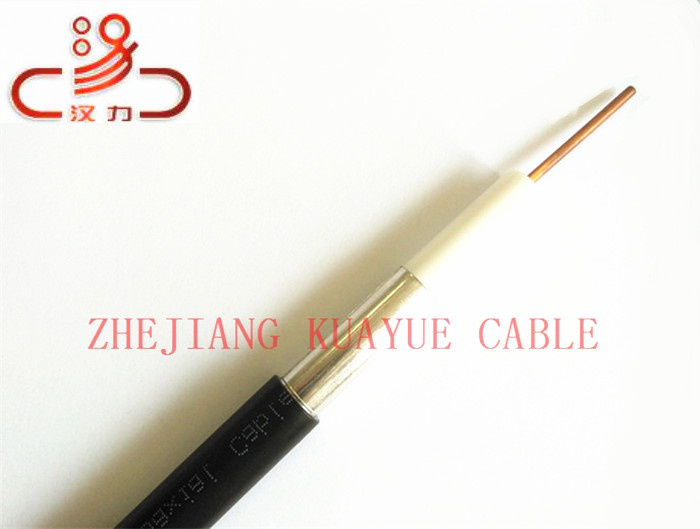

coaxial cable 50 ohm D-FB Series 8D-FB

Construction

Inner conductor	Plain copper	Φ2.8 ±0.025mm
Dielectric	F. PE	Φ7.8±0.10mm
Outer conductor	Tinned copper	112x0.13mm
Shield coverage		95%
Sheath	PVC o rLSZH	Φ10.4±0.10mm

Electrical & Mechanical Characteristics

Impedance	53±3 Ohm0
Nominal capacitance	94pF/m
Velocity of propagation	66%
Insulation resistance	>2000 Mohm.Km
Inner conductor resistance	35.0 Ohm/Km
Outer conductorresistance	16.5Ohm/Km
Test/Operatig Voltage(max)	5KV/2KV
Operating temperaturerange	-30°C-+70°C
Copper Weight	18.7Kg/Km
Cable weight(approx.)	39.9Kg/Km
Screening effectiveness	100-900MHz	>55dB

Attenuation

Frequency(MHz)	Attenuation(dB/100m)	Attenuation(dB/100ft)
50	9.1	2.77
100	13.1	3.99
200	19.4	5.91
400	28.4	8.66
500	32.2	9.82
600	35.7	10.88
860	44.8	13.66
1000	49.0	14.94

Return Loss

30-300MHz	>26dB
300-600MHz	>25dB
600-900MHz	>24dB

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
  Contact:
Name:  Carey zhu   Tel:+8657163808897 Mob:13958125576/18758199048
Website: http://en.hanlicable.com/main2.html     kuayuecable.en.made-in-china.com

Zhejiang Kuayue Cable Co., Ltd" is a leading Manufacturer of cables, Specialized in producing and selling communication Cables with more than 7 years of experience, our main popular products are LAN cable. Fiber optic cable, Coaxial cable and telephone cable, other telecommunication cables and accessories.

"Zhejiang Kuayue Cable Co., Ltd" is the subsidiary of Hanli Group. We have served many of biggest company allover world such as telecom. We have our own 3 factory with more than 300 workers and more than 20000 designs of cable,

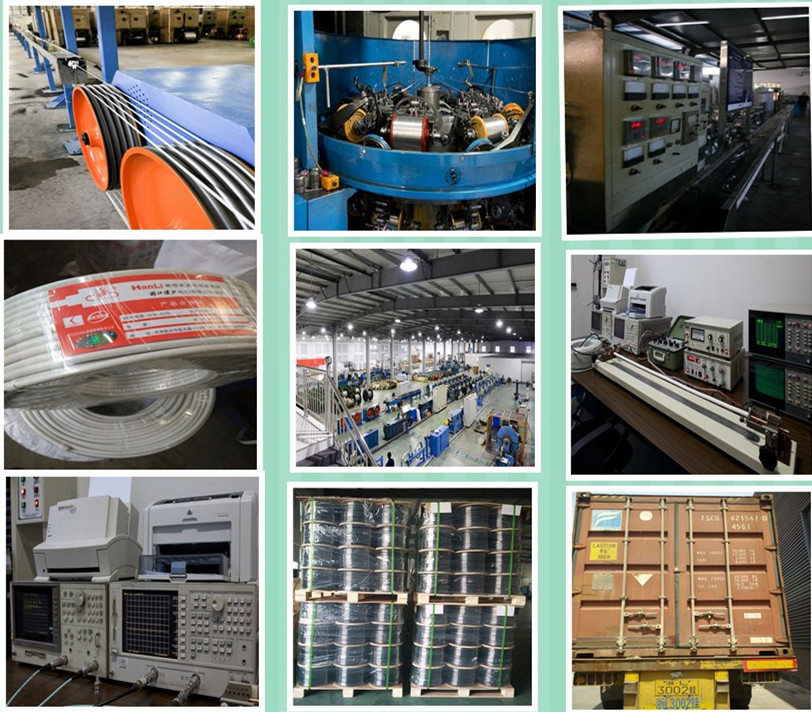

We have advanced production equipment to meet your high or special requirements. Our products have passed ISO9001, CE and RoHS certification. Our own brands "Hanli"have been widely recognized both by domestic and foreign country. We adhere to not only meet international standards but also take price in meeting customers requirement.

We can provide OEM or ODM services, and also efficient aftersales services. Please trust us can supply you with good quality products and competitive price. For more information,

Our principle: Service from Honesty, Impression from High quality!

Welcome visit our website and contact with us for any question or inquiries!
