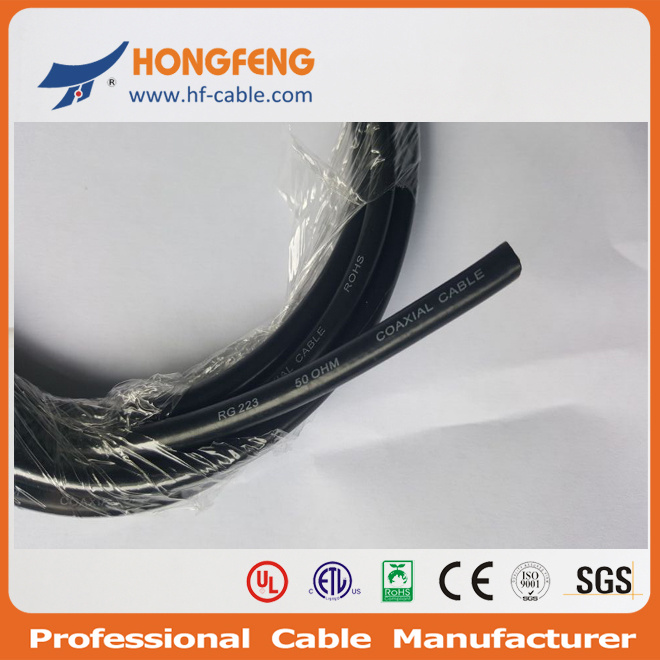

Coaxial Cable 50 Ohms Telecom CCTV Cable Rg223

Prod Model:	RG223 coaxial cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Zhejiang, China (Mainland)
H.S. Code:	854420
Inner Conductor:	Silver Plated Copper
Dielectric:	2.95mm PTFE Insulation
First Shield:	Silver Plated Copper Braiding
Outer Jacket:	5.3mm FEP
Packing Method:	100m, 250m, 305m, 500m, 1000m, etc.
Impedance:	50 Ohms
Application:	Long Distance Symmetric Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	ETL
Type:	Coaxial
Wire Core Material:	Silvered Copper
Model:	Coaxial

Product Description

RG 223/U Coaxial Cable, Communication Cable
Application: Utilized for wireless communication and similar technology electronic equipments.
Temperature rating: -40~70oC



Construction parameters, dimension and main electric properties:



Construction & Dimension:

Inner conductor: 1/0.90mm Silver Plated Copper
Insulation: 2.95mm PTFE
Outer conductor: 3.95mm SPC braiding
Jacket: 5.3mm FEP

Impedance: 50 ± 2.5 (Ω )
Velcocity: 66
Capacity: 101 (pF/m)


Attenuation: MHz dB/100m
100 0.131
400 0.269
1000 0.440
3000 0.814
5000 1.099



Mainly products:

1) RG series Coaxial Cable: Rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, etc;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc;
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: 412, 500, 540;
5) LMR SERIES: LMR200, LMR400, LMR600;
6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7;
7) Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable.





Attenuation
Frequence(MHZ)	Max value(dB/100m)
5	1.80
50	4.70
55	4.95
200	9.50
211	9.70
300	11.00
400	12.80
450	13.40
500	14.62
550	14.80
600	15.65
750	17.20
800	18.90
860	20.30
1000	21.80
1350	25.40
1750	29.00
2150	32.80

3.

Capacity		100±3.0 nf/km
Nominal Impedance		50±2.5 ohms
Velocity of Propagation		66%
Screening Attenuation	55MHz	≥60dB
	300MHz	≥70dB
	1000MHz	≥70dB
Return Loss (100% swept)	1~470MHz	≥22dB
	47~1000MHz	≥20dB
	1000~2200MHz	≥18dB
