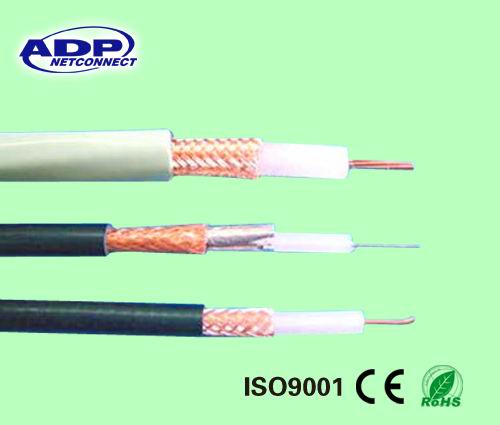

Coaxial Cable (C-07)

Name: Coaxial Cable (C-07)
Brand: all-electronics-online.com
SKU: 687431415
Availability: InStock
Rating: 4.8 (60 reviews)

Price:	Negotiable
Trade Terms:	by Shipping
Min Order:	30000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	C-07
Markets:	North America,South America,Eastern Europe,Mid East,Eastern Asia,Western Europe
Lenght:	as Client's Request
Conductor Material:	Copper
Application:	Coaxial Cable
Type:	Coaxila Cable

Product Description

RG6/U CABLE

1.02mm CCS BC+4.57mm Foam PE+16*4*0.16mm Al-Mg braiding(60%)+6.9mm PVC
Cable Construction Details:
Inner conductor 1.02mm
Material Copper Clad Steel
Dielectric 4.57mm
Thickness 1.78mm
Material Foam Polyethylene
Shield
Material Aluminum/Polyester/Aluminum with bonded
Coverage 100%
Braiding
Strand diameter 0.12mm
Carriers 16
Ends 4
Material Aluminum wire
Coverage 60%
O. D 4.75mm
Jacket
Thickness 0.78mm
Material PVC
Color White
O. D 6.91mm

Mechanical Characteristics:
Minimum bend radius 100mm
Cable Temp. Rating(° C) 70

Electrical Characteristics:
Impedance 75± 3 Ohms @ 210MHz
Velocity 83%
Return loss 5-1000MHz ≥ 26dB, 1001-2250MHz ≥ 20dB
2250-3000MHz ≥ 15dB
Typical Attenuation: (20° C)
Frequency(MHz) Max Atten (dB/100m)
55 5.25
250 10.83
500 15.29
870 20.04
1000 21.49
1450 26.23
2000 31.33

Shenzhen ADP Cables Co., Ltd. Was established in 2002 and is a professional manufacturer for Fiber Optic Cable, LAN cables, Coaxial cable, Security Alarm Cable.
Fiber Optic Cable indoor and outdoor, fiber pigtails, fiber patch cable; CAT3/CAT5E/CAT6/CAT6A/CAT7 cable, RJ11/RJ45 patch cord; 1pair -200pair Telelphone cable; Coaxail Cable RG6/RG58/RG59/RG11...SYV/SYWV serises...Fire Alarm Cable. And fiber patch cord, connector, accessories.

Our company is equipped with full sets coloring machines fiber ribbon forming machine, secondary coating lines, cabling lines, meshing machines, twisting machines, inspection equipment and instrument for all electrical, mechanical, temperature and environmental performance.

Our products strictly adhere to ISO 9001, CE and RoHS international standards, which also cover our design, development, services, and management. We have more than 100 employees, including 10 technical personnel. Our annual production value researches to USD200, 000, 000, giving us stable development and increased competitive power within the market.

We will continue being a people-oriented and faithful supplier offering technical support and good customer service. For more information, please visit our website or contact us directly with your questions or inquiries.
