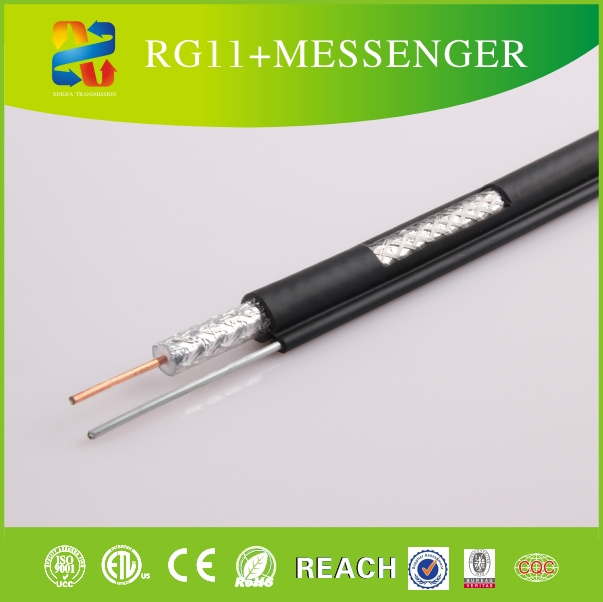

Coaxial Cable for VHF (RG11 Messenger)

Name: Coaxial Cable for VHF (RG11 Messenger)
Brand: all-electronics-online.com
SKU: 400116955
Availability: InStock
Rating: 4.4 (149 reviews)

Price:	US $ 0.163/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG11 Messenger
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Center Conductor:	Copper Clad Steel/Solid Bare Copper
Dielectric:	Foam PE or Solid PE
Shield:	Al Foil or Bonded Al Foil
Braiding Wire Material:	Al or Bc or Tinned Copper
Jacket:	PVC
Color:	Black or Per Customers' Special Requirement
Certificate:	ISO9001, CE, ETL, RoHS, Reach, BV
Jelly/Apd:	Per Customers' Special Requirement
Length:	100m,305m,500m,as Per Customer Requirements.
Delivery Time:	15days
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial Cable

Product Description

Coaxial Cable RG11/U Messenger for Aerial use. High performance follow Belden Standards.

1. Construction

Center Conductor:	1.63+0.01mm Solid Copper/Copper Clad Steel
Dielectric:	7.11+0.05mmFoam PE
Shield:	Bonded Al Foil
Braid Coverage:	60%-90% Al
Jacket:	10.03+0.10mmPVC
Messenger:	2.77/1.83+0.05mmCCS Steel
Jelly/APD	Per Customers' Special Requirement

2.Characteristics

Impedance:	75+3 Ohm
Capacitance:	54+3pF/m
Velocity of Propagation:	85%
Return Loss:	20dB min (5-2300MHz)

3.Attenuation

Attenuation	[@68oF. (20oC.)]
Frequency (MHz)	Maximum (dB/100 ft.)	Maximum (dB/100 m)
5	0.38	1.25
55	0.96	3.15
187	1.75	5.74
250	2.05	6.72
300	2.25	7.38
400	2.60	8.53
450	2.75	9.02
500	2.90	9.51
550	3.04	9.97
600	3.18	10.43
750	3.65	11.97
865	3.98	13.05
1000	4.35	14.27

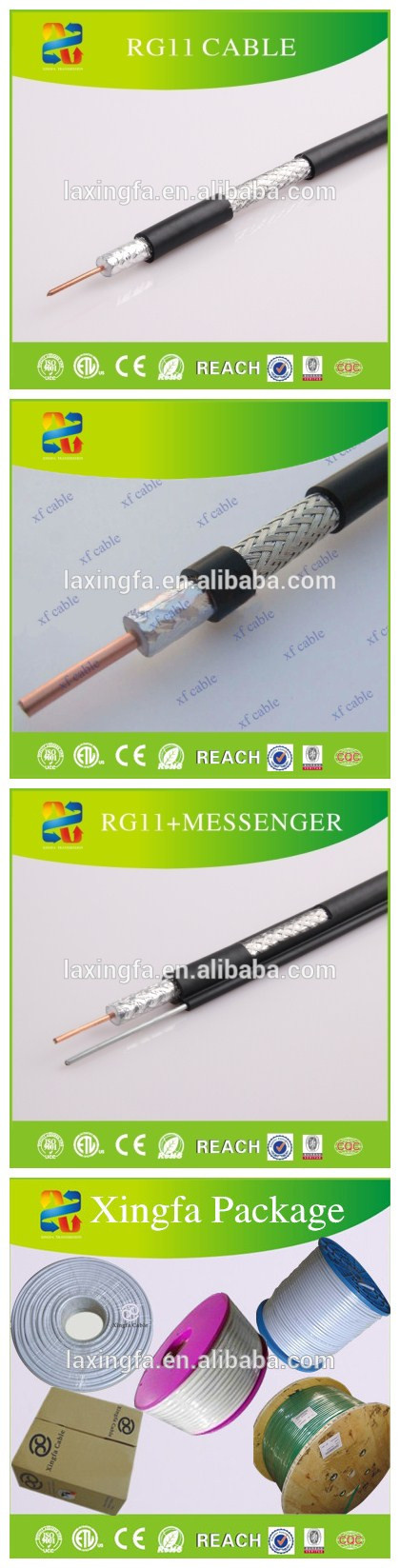

4.Product pictures

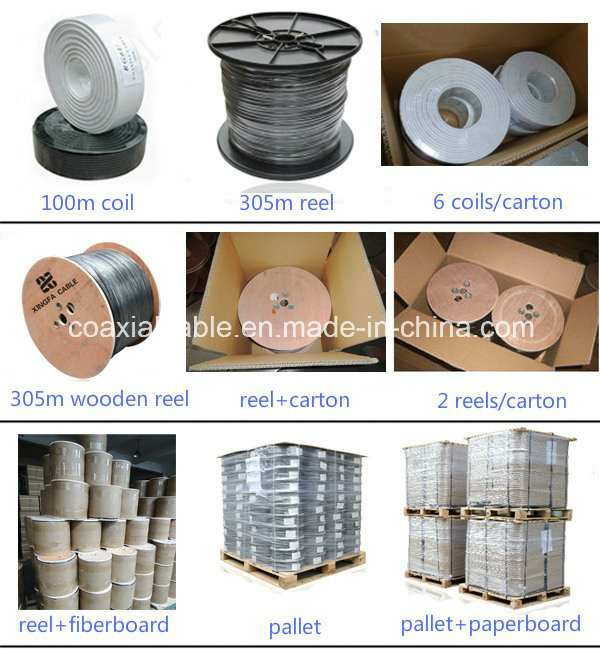

5.Packing:

1) Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll

2) Inner Packing: Wooden reel, plastic reel, and paper reel

3) Outer Packing: Carton box, pull out box, pallet available

4) Other packing available according to clients' request

6.About US
We HANGZHOU XINGFA TRANAMISSION EQUIPMENT CO., LTD. is TOP3 cable manufacturer in Linan, Hangzhou,China. We have more than 18 years experience in the communication cable industry in China. We mainly prouduce Coaxial Cables, Lan Cables, Alarm Cables, Speaker Cables, Telephone cables and so on.
This is our factory pictures below.

We Hangzhou Xingfa Technology Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.

Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.

Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.

We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.

Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.

"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
