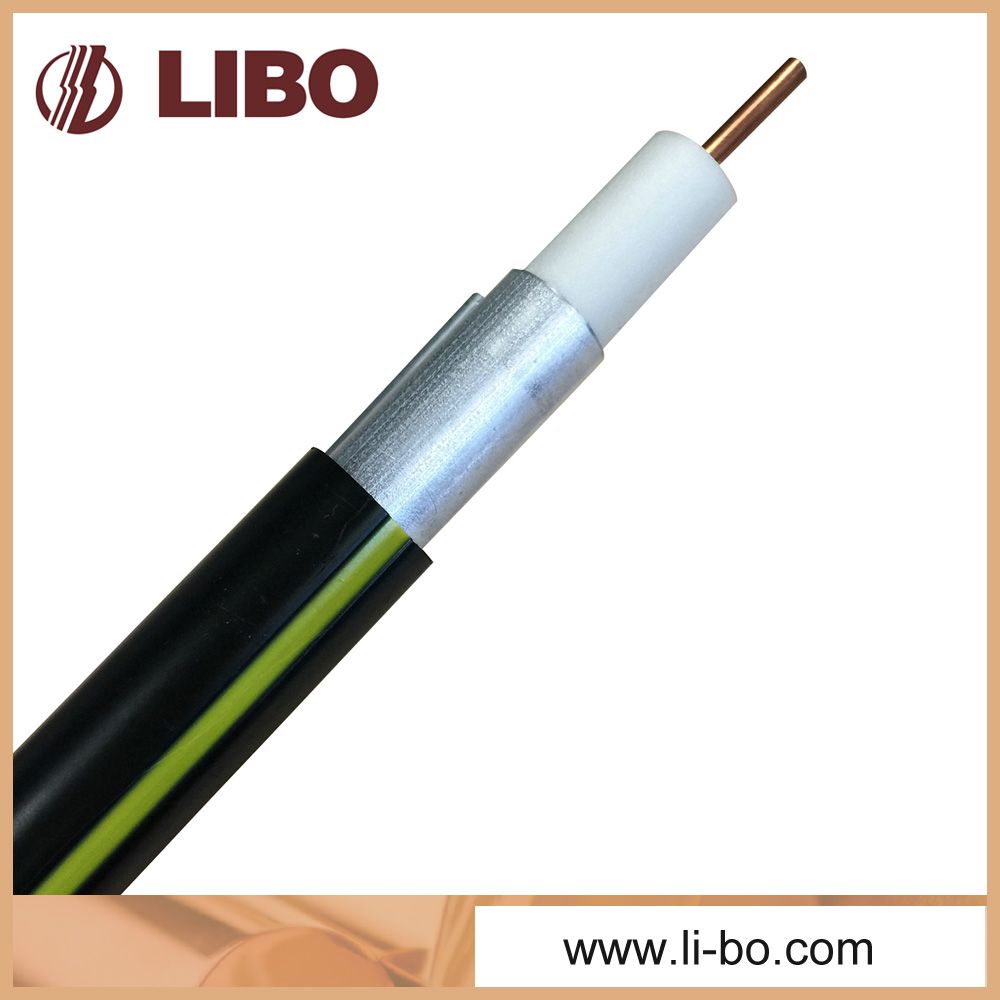

Coaxial Cable of Trunk Cable Piii. 500 with Tracing String

Name: Coaxial Cable of Trunk Cable Piii. 500 with Tracing String
Brand: all-electronics-online.com
SKU: 708135182
Availability: InStock
Rating: 4.8 (96 reviews)

Price:	US $ 0.5/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	trunk cable 500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PE
Certification:	UL
Type:	Coaxial Cable of 500 Trunk Cable
Model:	500 Trunk Cable
Brand:	Libo or OEM

Product Description

Low Capacitance 75 Foot CATV Coaxial Cable RG500 Distribution Feeder Cable

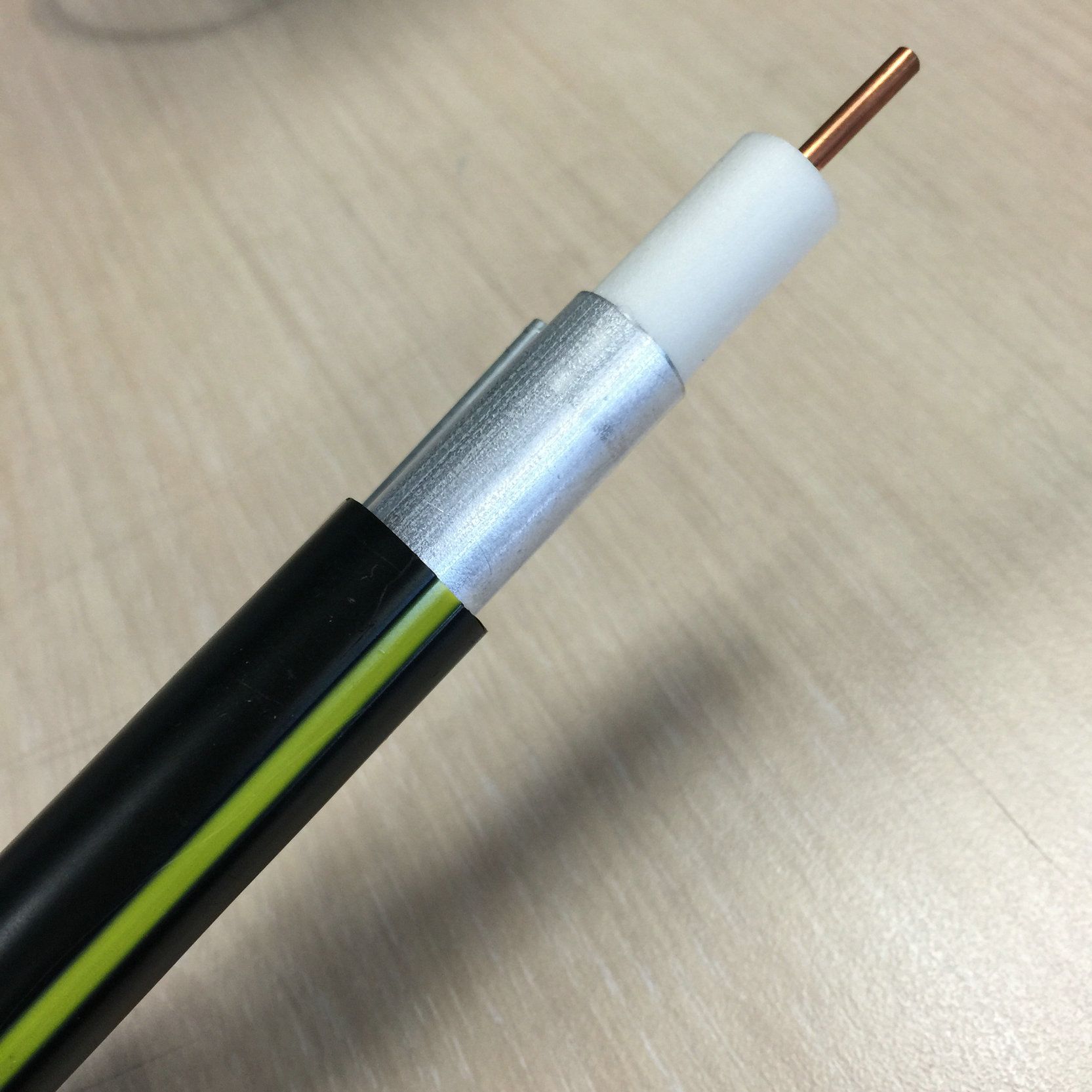

Inner conductor is bare solid copper. Dielectric core is insulating grade virgin polyethylene. The 1st shield is two aluminum foils laminated to a strength member and a bonding resin on one side, the second shield is 82% aluminum wire braid; PE for outer sheath.

Center conductor:
Bare copper
Nominal diameter: 2.77mm

Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 11.43mm

Shield:
1st shield: BAPA
2nd shield: aluminum wire braid, 0.16x 8ends x24 carry, pitch is 38mm, 82% coverage.

PE Jacket:
Nominal diameter over jacket: 14.43mm

Electrical properties:
Impedance : 75±3 ohms
Velocity of propagation: 86% nominal
V.S.W.R: 1.25
Attenuation@ 68OF(20oC):

@Frequency MHZ	dB/100 meters(MAX.)
10	0.90
50	1.90
150	1.86
250	3.39
350	4.38
450	5.20
750	5.82
864	7.29
1000	8.40

Applications:
CATV-community antenna television
CCTV-closed-circuit television
DBS-direct broadcasting satellite

Competitive Advantage:
Outstanding electrical performance sends all the right signals.
Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
Libo cable has a stable workforce and engineering team, we offer products with short lead-time and high quanlity.
Our production and testing procedures all strictly follow requirement of ISO9000, and ISO14000.
Over 18 years of experience on coaxial cable, we have been in business partnership with multi-national cable companies or dealers since 1994.

Shaoxing is a place propitious for giving birth to great men and a place endowed with the fine spirits of the universe. The towering Jishan Mountain and flowing Jianshui River nurture the prosperous civilization of this famous historic and cultural city.

About 2500 years ago, Pingshui at the foot of Kuaijishan Mountain had been the manufacturing base of bronze weapons for the ancient kingdom of Yue. Stories of Rizhu Mountain that got the name from the sword-casting in one day by Ou Yezi, as well as the Sanzao (Three Furnances) of Shangzao, Zhongzao and Xiazao, have been widely told by generations. Now, relying on the innovative technology and ideas and top-class quality, Libo Group of Shaoxing is leading the new trend of copper and aluminum processing.

Libo Group is a nationally recognized Hi-Tech Enterprise specializing in copper and aluminum processing, electronic wire and cable, machinery manufacturing, new energy materials and real estate development, including 12 subsidiaries and 2000 employees. It is one of the 500 largest private enterprises in China and has been awarded Advanced Labor and Social Security Enterprise and a Key and Major Enterprise in Shaoxing. "Libo" has been the Well-known Trademark of China.

Libo Cable is subsidiary of Libo Group, it is specialized in the manufacturing of physical-foamed RF coaxial cable, seamless aluminum tube trunk cable, leaky feeder cable, solar PV ribbon and cable. With the advanced physical high-foam production lines and continuous-extruding seamless aluminum tube production lines, it now possesses the yearly capacity of 60, 000 km of coaxial cables, with the world-class quality. Products have been certified by UL and CE and exported to European and American market. The solar PV ribbon and cable makes use of the oxygen-free copper strip as the blank and it possesses the excellent electric conductivity and favorable solder ability and flexibility, which has been favored by the majority of users.
