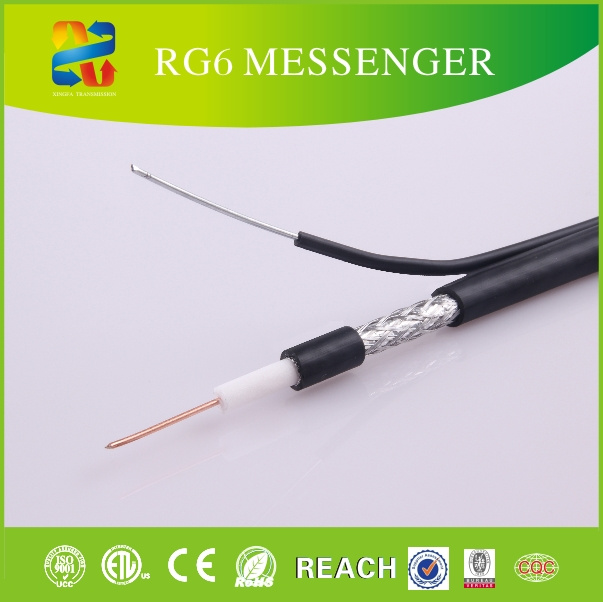

| Prod Model: |
RG-6 U With Message |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Center Conductor: |
1.02mm Solid Bare Copper/Copper Clad Steel |
| Dielectric: |
4.57mm Foam PE |
| Shield: |
Al Foil or Bonded Al Foil |
| Braiding Wire Material: |
40%-95% Al or Bc or Tinned Copper |
| Jacket: |
6.91mm PVC/PE |
| Color: |
Black White or Per Customers' Special Requirement |
| Messenger: |
1.16/1.3mm Steel |
| Inner Packing: |
Wooden Reel, Plastic Reel, Paper Reel |
| Outer Packing: |
Carton Box, Pull out Box, Pallet |
| Length: |
200m,305m,500m,1000m.. |
| Application: |
RF Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
UL |
| Type: |
Coaxial Cable |
| Model: |
RG6 with Messenger |
| Brand: |
Xingfa |
Product Description
HOT Sell Sample Free 75ohm Rg11 Coaxial Cable1 Construction
Center Conductor: | 1.63+0.01mm Solid Copper/Copper Clad Steel |
Dielectric: | 7.11+0.05mmFoam PE |
Shield: | Bonded Al Foil |
Braid Coverage: | 60%-90% Al |
Jacket: | 10.03+0.10mmPVC |
Messenger: | 2.77/1.83+0.05mmCCS Steel |
Jelly/APD | Per Customers' Special Requirement |
2 Characteristics
Impedance: | 75+3 Ohm |
Capacitance: | 54+3pF/m |
Velocity of Propagation: | 85% |
Return Loss: | 20dB min (5-2300MHz) |
3 Attenuation
Attenuation | [@68oF. (20oC.)] |
Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
5 | 0.38 | 1.25 |
55 | 0.96 | 3.15 |
187 | 1.75 | 5.74 |
250 | 2.05 | 6.72 |
300 | 2.25 | 7.38 |
400 | 2.60 | 8.53 |
450 | 2.75 | 9.02 |
500 | 2.90 | 9.51 |
550 | 3.04 | 9.97 |
600 | 3.18 | 10.43 |
750 | 3.65 | 11.97 |
865 | 3.98 | 13.05 |
1000 | 4.35 | 14.27 |

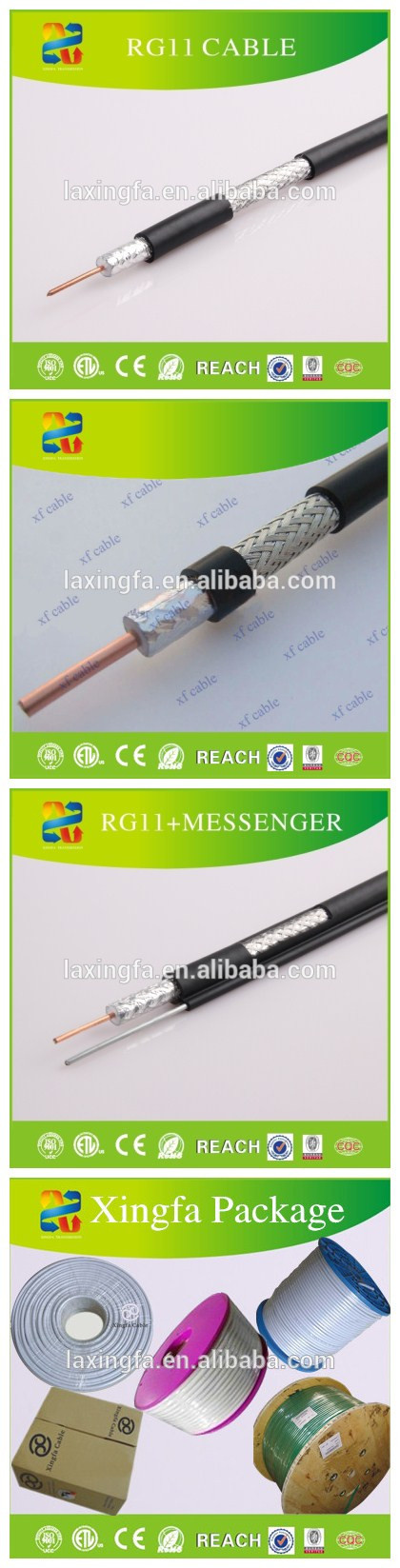

4 Product pictures
5 Packing details
1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients' request
6 Our company
FAQ
What kind of cable do you produce?
We specialize in producing coaxial cable, telephone cable, speaker cable and so on.
What is your MOQ?
Usually, the MOQ is 10km.
What is your delivery time?
Usually, our delivery time is 15 days after received deposit. It is base on the quantity of the order.
What is your payment term?
Usually, we accept T/T.Other payment, we can negotiate with customers.
What is your manner of packing?
Inner Packing:
100m/roll, 200m/roll,300m/roll,100yards/roll;200yards/roll;300yards/roll
305m (1,000ft) wooden reel, wooden drum, plastic drum
Outer Packing:
Wooden drum, carton box, pull out box
Or according to client's request.
Can you customize cables basing on customer's sample?
Yes, of course.
We Hangzhou Xingfa Technology Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.
Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.

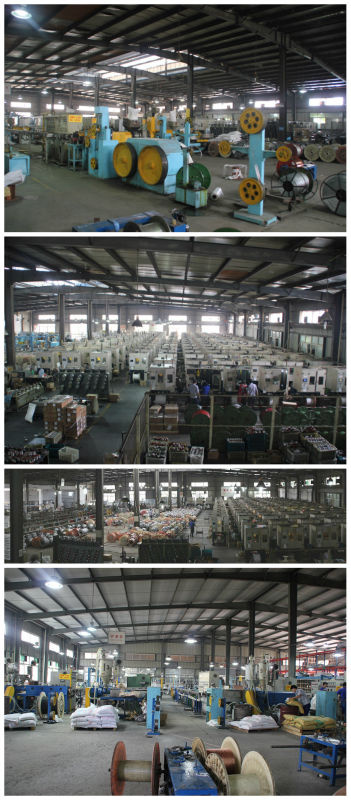

Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.
We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.
Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.
"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
