Coaxial Cable Rg11 for Satellite CATV Network

Name: Coaxial Cable Rg11 for Satellite CATV Network
Brand: all-electronics-online.com
SKU: 727180645
Availability: InStock
Rating: 4.4 (75 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	20km
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG11 Coaxial Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Center Conductor:	Copper
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL

Product Description

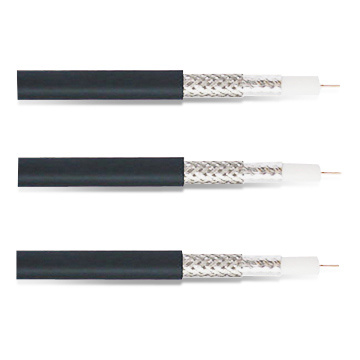

Coaxial Cable RG11 for Satellite CATV Network

Foam PE insulation, 75 ohm, low dB loss, easy installation

A. Specifications:
1) 1.63 Cu + 7.25 FPE + Al-foil (Bonded) + Al-Mg wire braiding + 10.1mm PVC with/with out 1.83mm steel wire messenger
2) Inner conductor: Cu, CCS, CCA
3) Bonded Al-foil: Al-foil, double bonded foil, double foil
4) Braiding wire: Cu, Al - Mg, TC
5) Coverage: 40%, 50%, 60%, 80%, 90%
6) Braiding wire diameter: 0.12mm, 0.15mm, 0.16mm
7) Wire net number: 64, 80, 96, 120, 144
8) Available steel messenger diameters: 1.83mm

B. Model list:
F1160BV/BVM, F1190BV/BVM, F1160BE/BEM, F1190BE/BEM, Flooded, Tri-shield, Quad-shield, With/without Messenger

C. Packing:
100m/roll or 1000ft/305m Wooden Spool Packing

E. Application:
CATV Satellite Network

Nominal Attenuation@ 68F(20C):
Frequency	dB/100 feet (Max)	dB/100 meters(Max)
5 MHz	0.58	1.90
55 MHz	1.60	5.25
83 MHz	1.95	6.40
187 MHz	2.85	9.35
211 MHz	3.05	10.01
250 MHz	3.30	10.82
300 MHz	3.55	11.64
350 MHz	3.85	12.63
400 MHz	4.15	13.61
450 MHz	4.40	14.44
500 MHz	4.66	15.29
550 MHz	4.90	16.08
600 MHz	5.10	16.73
750 MHz	5.65	18.54
865 MHz	6.10	20.01
1000 MHz	6.55	21.49
1200 MHz	7.17	23.52
1450 MHz	7.87	25.82
1800 MHz	8.77	28.77
2200 MHz	9.68	31.75
2400 MHz	10.10	33.14
2800 MHz	10.90	35.76
3000 MHz	11.28	37.01

Wanma is a professional cable manufacture located in Lin'an, Zhejiang Province, an ancient Chinese city.Since its establishment in 1989, Wanma has devoted over 20 years in constantly research, investigation, and improvement in not only our products, but also management philosophies and technical abilities.Thus allowing us to achieve rapid progress in the field of cable manufacturing industry, and also becoming a trusted OEM and ODM supplier to a number of well-known Fortunes 500 enterprises and many famous CATV, satellite system operators across the world.

Our major products include RG series cable, HDMI, USB2.0&3.0, A/V and Fiber Optic cables.Our annual output includes 700, 000 km of coaxial cables and 20 million pieces of related cable assemblies.Along with the development of cable products, we've also paid great attention to vertical integration of the supply chain;We set up our own individual plant for PVC and Aluminum foil.

Utmost quality is our constantly seeking and demand, we have accurate testing device for high frequency electrical performance, and a full set of testing equipments complying with UL's strict requirements.We passed through ISO 9002 quality system acceptance in 1999, acceptance to UL's safety specification as well as CSA nominated products in 2002.We became HDMI adopter and passed HDMI Compliance Test in 2010.In addition, we have passed GE and Thomson's quality management audit.

We are determined to assume the responsibility for the protection of our environment and society.We passed the SGS ethics acceptance in 2005, ISO 14000 acceptance in 2006, Wal-Mart EHS audit in 2012.Our products completely conform to the requirements of RoHS guidance.

We are always ready for your professional inquiry.
