Coaxial Cable Rg11 Message

Name: Coaxial Cable Rg11 Message
Brand: all-electronics-online.com
SKU: 810516725
Availability: InStock
Rating: 4.7 (92 reviews)

Price:	US $ 40-60/Roll
Min Order:	50/Roll
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG11 message
Application:	Microphone
Color:	Black
Type:	Coaxial
Connector:	RCA
Certification:	ISO9001
Brand:	Hanli

Product Description

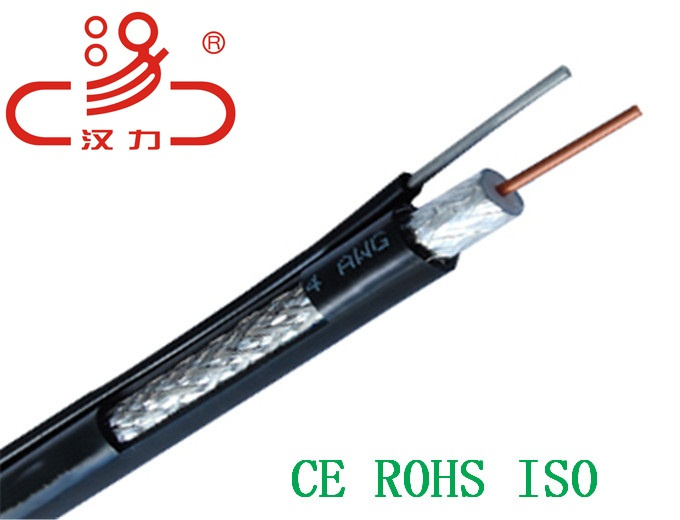

RG11 Coaxial cable
Construction

Inner conductor	Copper cladsteel(CCS)	1.63mm
Dielectric	Lowdensity PE	Φ7.2±0.2mm
Tape shield	Aluminum foil	100%
Outer conductor(shield)	Aluminum wire	96x0.12mm
Shield coverage		60%
Sheath	PVC or LSZH	Φ10.3±0.18mm
Messenger(optional)	Galvanized steel	1.83mm/2.77mm

Electrical & Mechanical Characteristics

Impedance	75±5Ohm
Nominal capacitance	53pF/m
Velocity of propagation	66%
Insulation resistance	>2000Mohm.Km
Inner conductor resistance	13.5Ohm/Km
Outer conductor resistance	24.1Ohm/Km
Operating temperature range	-30°C-+70°C
Cable weight(approx.)	116.4-140.4Kg/Km

Attenuation

Frequency(MHz)	Attenuation(dB/100m)	Attenuation(dB/100ft)
50	3.1	0.95
100	4.2	1.28
250	6.8	2.07
300	7.5	2.29
350	7.9	2.41
400	8.5	2.59
450	9.1	2.77
500	9.5	2.9
550	10.1	3.08
600	10.5	3.2
750	12.1	3.69
860	13.2	4.02
1000	14.3	4.36
1450	18.6	5.67
2050	23	7.01

Welcome to visit our factory and  get our samples.
  Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.

Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
Name:  Carey zhu   Tel:+8657163808897 Mob:13958125576/18758199048
Website: http://en.hanlicable.com/main2.html     http://kuayuecable.en.made-in-china.com

Zhejiang Kuayue Cable Co., Ltd" is a leading Manufacturer of cables, Specialized in producing and selling communication Cables with more than 7 years of experience, our main popular products are LAN cable. Fiber optic cable, Coaxial cable and telephone cable, other telecommunication cables and accessories.

"Zhejiang Kuayue Cable Co., Ltd" is the subsidiary of Hanli Group. We have served many of biggest company allover world such as telecom. We have our own 3 factory with more than 300 workers and more than 20000 designs of cable,

We have advanced production equipment to meet your high or special requirements. Our products have passed ISO9001, CE and RoHS certification. Our own brands "Hanli"have been widely recognized both by domestic and foreign country. We adhere to not only meet international standards but also take price in meeting customers requirement.

We can provide OEM or ODM services, and also efficient aftersales services. Please trust us can supply you with good quality products and competitive price. For more information,

Our principle: Service from Honesty, Impression from High quality!

Welcome visit our website and contact with us for any question or inquiries!
