Coaxial Cable Rg11 Specifications

Name: Coaxial Cable Rg11 Specifications
Brand: all-electronics-online.com
SKU: 731805125
Availability: InStock
Rating: 4.3 (139 reviews)

Price:	US $ 0.1-0.7/Meter
Trade Terms:	FOB
Min Order:	10Kilometer
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG11
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe
Inner Conductor:	1.63mmccs/Bc
Dielectric:	7.11mmfpe
Frist Shield:	Al Foil
Second Shield:	Bc/Al Wire
Jacket:	10.03mmpvc
Jacket Color:	Black
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial Cable

Product Description

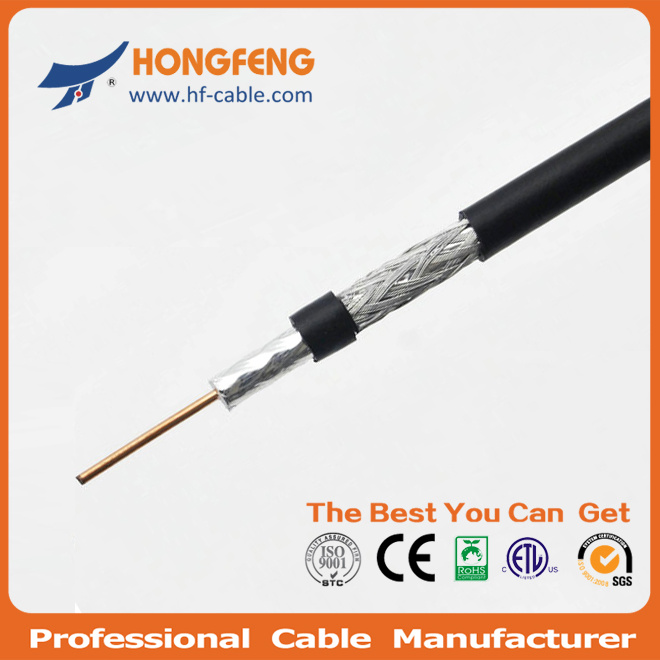

COAXIAL CABLE RG11
PHYSIC CONSTRUCTION

ConductorMaterialBC
Nom. Dia. 1.63mm
DielectricMaterialFoam PE
Nom. Dia. 7.11mm
ShieldMaterialAl bonded foil+Al braiding
Coverage40%-95%
JacketMaterialPVC/PE
Nom. Thick. 1.07mm
Nom. Dia. 10.03mm

ELECTRIC CHARACTERISTICS

Nominal Impedance(ohm)75± 3
Nominal Velocity of Propagation(%)85
Nominal Capacitance(pF/m)50
Sparker Test(VAC)4000
SRL(dB)2020
Attenuation(68° F(20° C)) Frequency(MHz) Maximum(dB/100ft) Maximum(dB/100m)
5 0.38 1.25
55 0.96 3.15
250 2.05 6.72
300 2.25 7.38
450 2.75 9.02
600 3.18 10.43
750 3.65 11.97
865 3.98 13.05
1000 4.35 14.27
Package
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

#Coaxial Cables:
1) RG series Coaxial Cable: Rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, etc.
2) JIS series Coaxial Cable: 3C-2V,
3) LMR series: LMR400, LMR600
4) Network Cables: Cable CAT5e
5) Combined Cable: Siamese Cables: RG59+2C RG6+2C

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
