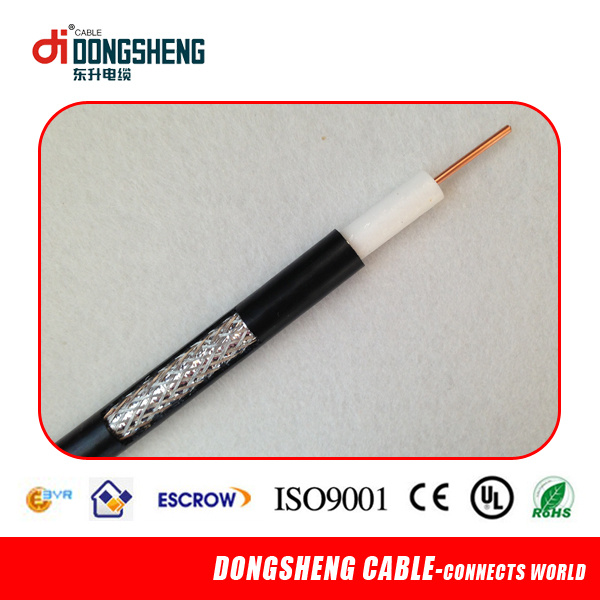

Coaxial Cable Rg11 Specifications

Name: Coaxial Cable Rg11 Specifications
Brand: all-electronics-online.com
SKU: 764004185
Availability: InStock
Rating: 4.3 (141 reviews)

Price:	US $ 0.1/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	30000/Meter
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Coaxial Cable Rg11 Specifications
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket Color:	White, Gray, Black, Yellow, Brown, Red
Application:	Coaxial Cable
Certification:	UL
Conductor Material:	Bc/CCS/CCA/Cu/CCAM
Cover Material:	PVC/PE/Lszh
Type:	Coaxial Cable Rg11
Conductor Type:	Bc/CCS/CCA/Cu/CCAM
Wire Core Material:	Bc/CCS/CCA/Cu/CCAM

Product Description

RG Series RG59, RG6, RG7, RG11

Note: Other specification can be made upon customer requirements.

Component	RG59			RG6			RG7			RG11
	Standard-shield,	Tri-shield, mm	Quad-shield,	Standard-shield,	Tri-shield, mm	Quad-shield, mm	Standard-shield,	Tri-shield, mm	Quad-shield, mm	Standard-shield,	Tri-shield,mm	Quad-shield,
	mm	Tri-shield, mm	mm	mm	Tri-shield, mm	Quad-shield, mm	mm	Tri-shield, mm	Quad-shield, mm	mm	Tri-shield,mm	mm
Nominal center conductor diameter	0.81	0.81	0.81	1.02	1.02	1.02	1.02	1.3	1.3	1.63	1.63	1.63
Nominal diameter over dielectric	3.66	3.66	3.66	4.57	4.57	4.57	5.72	5.72	5.72	7.11	7.11	7.11
Nominal diameter over first shield(tape)	3.84	3.84	3.84	4.75	4.75	4.75	5.89	5.89	5.89	7.29	7.29	7.29
Nominal diameter over jacket	6.1	6.1	6.73	6.91	7.06	7.62	8.08	8.2	8.59	10.03	10.03	10.29
Nominal jacket wall thickness	0.81	0.76	0.86	0.76	0.76	0.86	0.76	0.81	0.86	1.07	0.99	0.94
	1.3	1.3	1.3	1.3	1.3	1.3	1.83	1.83	1.83	1.83	1.83	1.83
Nominal diameter	(single)	(single)	(single)	(single)	(single)	(single)	(single)	(single)	(single)	(single)	(single)	(single)
of steel messenger	1.83	1.83	1.83	1.83	1.83	1.83	2.77	2.77	2.77	2.77	2.77	2.77
	(dual)	(dual)	(dual)	(dual)	(dual)	(dual)	(dual)	(dual)	(dual)	(dual)	(dual)	(dual)

DSC Located at the city of Lin'an, Hangzhou, Hangzhou Lin'an Dongsheng Cable Co., Ltd. is 28km away from Hangzhou City, covering an area of 30000 square meters, with beautiful landscape and convenient communication facilities.

Since 1991, 24 year cable experience, our rapid development helps us to be the industry leader. Our company has passed ISO9001 quality system certification & UL certification, and had foreign trade license. Our company is on the top with comprehensive strength.

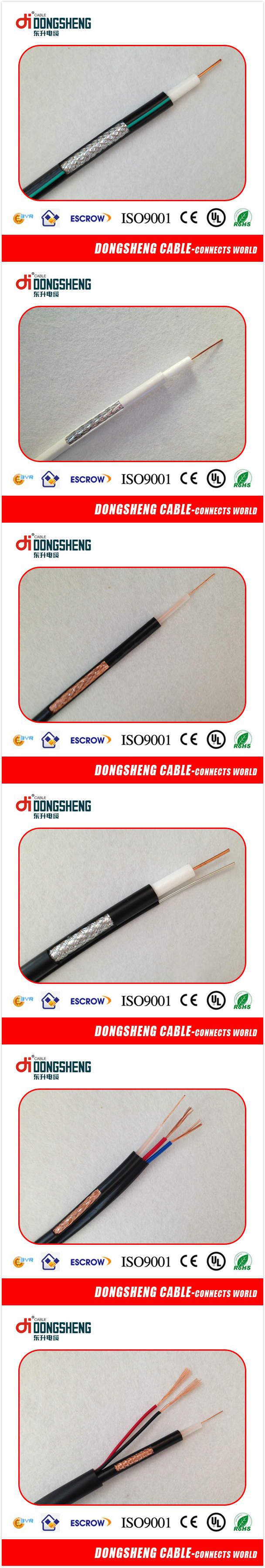

Main products in our company cover LAN Network Cables Cat5e CAT6 Cat3, Coaxial CCTV/CATV Cable RG6 RG59 RG11 RG59-2C QR500 RG58 RG213 LMR400 KX6 19VATC CT100 SAT703 ect. Telephone Cable, Alarm Cable and Cable Accessories

Our motto is "Keeping pace with the time, and going up like the sun", just as our company's name, Dongsheng, suggests. We are looking forward to establishing long term & mutually beneficial business relationship with you.
