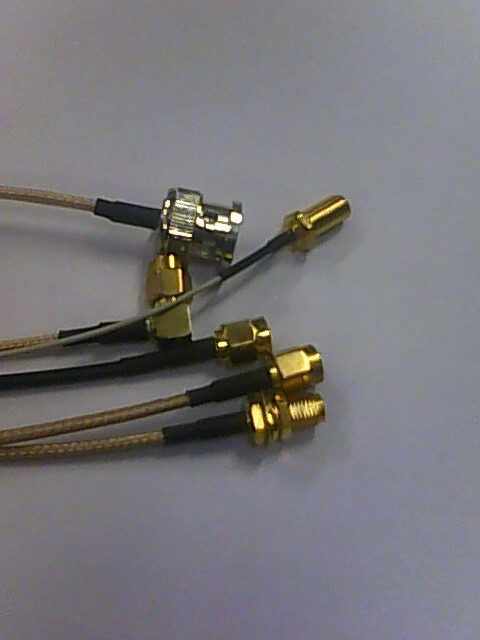

Coaxial Cable Rg179-2

Name: Coaxial Cable Rg179-2
Brand: all-electronics-online.com
SKU: 712302775
Availability: InStock
Rating: 5 (31 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	RoHS
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG

Product Description

Product Description:
RG6 Tri Shield with Messenger, CCS, Al/PET/Al/PET Tape,
60% Braiding, Al/PET/Al/PET Tape, Flood Compound, PVC Jacket.
Center Conductor:
18AWG Copper Clad Steel
Diameter: 1.02mm+/-0.01mm (0.04")
Dielectric:
Gas Injected Foam Polyethylene
Diameter over Dielectric: 4.52mm+/-0.13mm (0.178")
Shield:
1st shield: Aluminum Laminated Tape Bonded to the Dielectric 2nd shield: Aluminum Alloy Wire, 4*16*0.12mm, 50% Coverage
3rd shield: Aluminum Laminated Tape Bonded to the PVC Jacket
Jacket:
Material: PVC
Diameter Over Jacket: 7.0mm+/-0.10mm (0.276") Color: Black or White
Messenger:
Galvanized Steel
Nominal Diameter: 1.20mm (0.047")
Messenger Jacket O.D.:2.667+/-0.127mm (0.105")
Electrical Properties:
Impedance: 75Ohm+/-3Ohm
Nominal Velocity of Propagation: 82%
Nominal Structure Return Loss: 5MHz~1000MHz≥20dB

Baoying Best-Dragon Electronic Co., Ltd. is a professional manufacturer which produces audio and video cables, coaxial cables, HDMI cables, speaker cables, telephone cables LAN cables, RCA cable and various connectors. Our products are mainly exported to India, America, German, Sweden, Israel and other European countries. We have a strong technical team, advanced production techniques and equipment as well as state-of-the-art testing instruments. We are able to improve existing product lines and create new series. Thus we are well equipped to complete OEM orders, designing and manufacturing products according to clients' specific requirements. Moreover, we can control the quality better and give our buyers the best price and the best service.

Welcome to visit our company in Changzhou City - two hours way from Shanghai. We are looking forward to cooperating with all the customers in the world.
