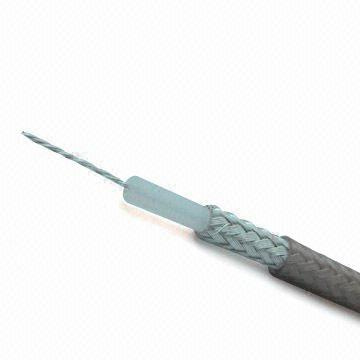

Coaxial Cable - RG187

Coaxial Cable - RG187
Price: Negotiable
Trade Terms: By Sea
Min Order: 1
Pay Type: L/C,T/T

Product Description

Physical properties:
Inner conductor: 7/0.10mm stranded silver plated copper-clad steel
Insulation: 1.60mm solid PTFE
Outer conductor: 2.06mm silver plated copper braid
Jacket: 2.62mm PTFE

Electrical properties:
Capacitance (pF/m) : 64.0
Impedance (Ω): 75.0
Velocity of Propagation (%) : 69.5
Conductor DCR (Ohm/km): 800.5
Outer Shield DCR (Ohm/km): 27.9
Max Operating Frequency (MHz): 1000.0
Max Operating Voltage (RMS) : 1200.0
Operating Temp Range (º C): -55 to 200
Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.

Our Mission

We are dedicated to providing our customers competitive price and excellent service.
