Coaxial Cable - RG402

Coaxial Cable - RG402
Price: Negotiable
Trade Terms: T/T, L/C
Min Order: 2KM
Pay Type: L/C,T/T

Product Description

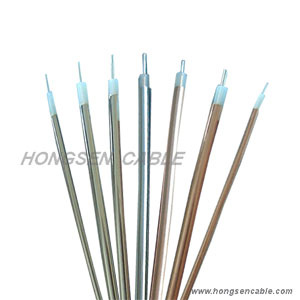

Coaxial Cable RG402

SPECIFICATION:

Inner conductor: 0.91mm silver plated copper
Insulation: 2.98mm PTFE
Outer conductor: 3.58mm Copper Tube or Silver Plated Copper Tube

Electrical properties:

Capacitance (pF/m): 95.1
Impedance (Ω ): 50.0
Velocity of Propagation (%): 70.0
Max Operating Frequency (GHz): 34
Max Operating Voltage (RMS): 1900
Operating Temp Range (º C): -55 to +125

Application: Radio Frequency, Telecommunication
Hangzhou Hongsen Cable Co., Ltd. was established in 2002, a manufacturer specializes in RF & Microwave Coaxial Cables. mainly serving the defense, telecommunications, satellite, test and measurement markets.

Our products cover wireless RF Transmission cable, Mini Coax cable, Semi-Rigid, Semi-Flexible Microwave cable, RG MIL-C-17 Spec Cables, CCTV, CATV/MATV cable, satellite cable, video cable. Besides the standard cable, customer required cables are also available in our company.

Quality Control

Hongsen has developed a comprehensive quality assurance program and quality system. This program and system establishes controls throughout the entire manufacturing cycle -- from raw material purchasing and product manufacturing to end-item delivery. It also assures meeting quality objectives and minimizes the possibility of compromises which could affect product quality and reliability. The quality assurance program is complete and responsive to all requirements of ISO9001: 2000.

Our Mission

We are dedicated to providing our customers competitive price and excellent service.
