Coaxial Cable Rg500 Briading Feeder Cable

Name: Coaxial Cable Rg500 Briading Feeder Cable
Brand: all-electronics-online.com
SKU: 708946192
Availability: InStock
Rating: 4.9 (115 reviews)

Price:	US $ 0.01/Meter
Trade Terms:	FOB
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG500 braiding cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Braiding:	82% or According to The Clients' Request
Jacket:	PE
Messenger:	Avalable
Application:	Long Distance Symmetric Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PE
Certification:	ETL
Type:	Coaxial Cable of 500 Braiding Feeder Cable
Conductor Type:	CCA Inner Conductor
Wire Core Material:	Bare Copper,Aluninum Wire,PE Jacket
Model:	Rg500
Brand:	Libo or OEM

Product Description

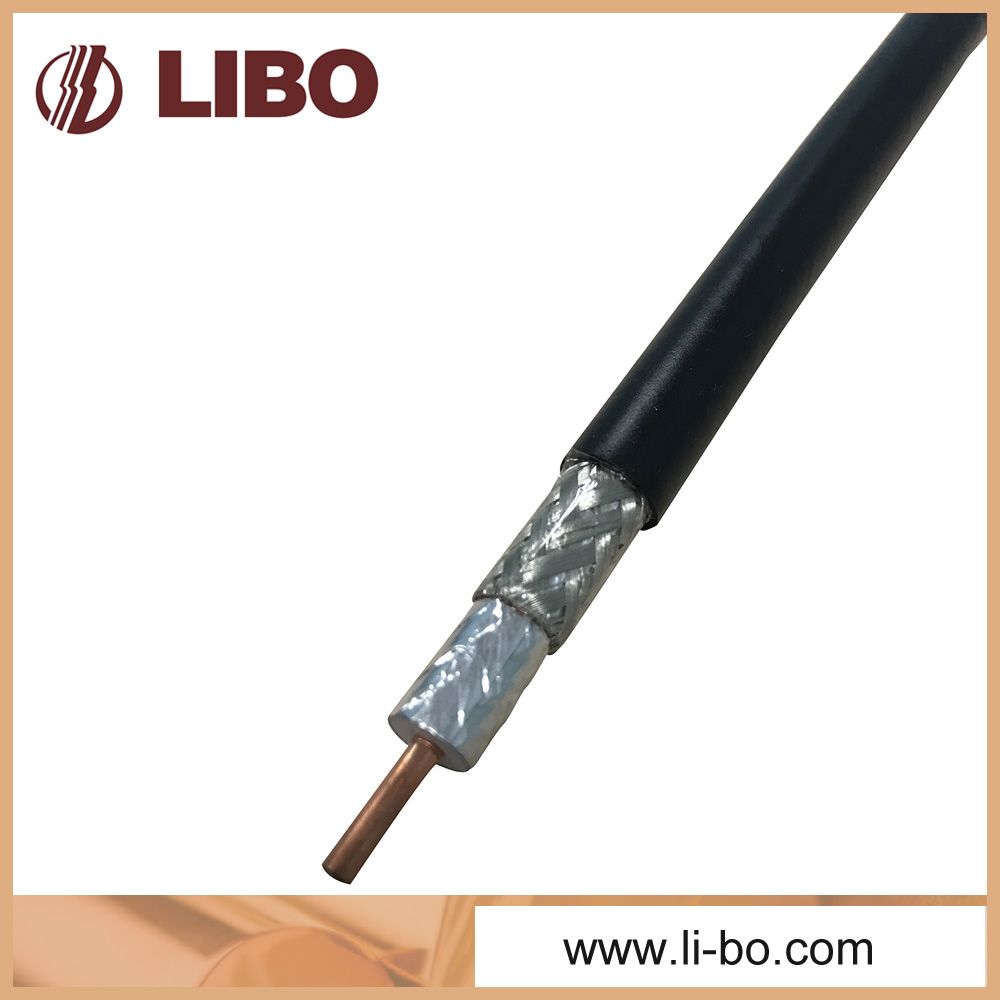

Inner conductor is bare solid copper. Dielectric core is insulating grade virgin polyethylene. The 1^st shield is two aluminum foils laminated to a strength member and a bonding resin on one side, the second shield is 82% aluminum wire braid; PE for outer sheath.

Center conductor:

Bare copper

Nominal diameter: 2.77mm

Dielectric:

Gas expanded polyethylene

Nominal diameter over dielectric: 11.43mm

Shield:

1^st shield: BAPA

2nd shield: aluminum wire braid, 0.16x 8ends x24 carry, pitch is 38mm, 82% coverage.

PE Jacket:

Nominal diameter over jacket: 14.43mm

Electrical properties:

Impedance : 75±3 ohms

Velocity of propagation: 86% nominal

V.S.W.R: 1.25

Attenuation@ 68^OF(20^oC):

@Frequency MHZ	dB/100 meters(MAX.)
10	0.90
50	1.90
150	1.86
250	3.39
350	4.38
450	5.20
750	5.82
864	7.29
1000	8.40

Applications:

CATV-community antenna television
CCTV-closed-circuit television
DBS-direct broadcasting satellite

Competitive Advantage:

Outstanding electrical performance sends all the right signals.

Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
Libo cable has a stable workforce and engineering team, we offer products with short lead-time and high quanlity.
Our production and testing procedures all strictly follow requirement of ISO9000, and ISO14000.
Over 18 years of experience on coaxial cable, we have been in business partnership with multi-national cable companies or dealers since 1994.

Shaoxing is a place propitious for giving birth to great men and a place endowed with the fine spirits of the universe. The towering Jishan Mountain and flowing Jianshui River nurture the prosperous civilization of this famous historic and cultural city.

About 2500 years ago, Pingshui at the foot of Kuaijishan Mountain had been the manufacturing base of bronze weapons for the ancient kingdom of Yue. Stories of Rizhu Mountain that got the name from the sword-casting in one day by Ou Yezi, as well as the Sanzao (Three Furnances) of Shangzao, Zhongzao and Xiazao, have been widely told by generations. Now, relying on the innovative technology and ideas and top-class quality, Libo Group of Shaoxing is leading the new trend of copper and aluminum processing.

Libo Group is a nationally recognized Hi-Tech Enterprise specializing in copper and aluminum processing, electronic wire and cable, machinery manufacturing, new energy materials and real estate development, including 12 subsidiaries and 2000 employees. It is one of the 500 largest private enterprises in China and has been awarded Advanced Labor and Social Security Enterprise and a Key and Major Enterprise in Shaoxing. "Libo" has been the Well-known Trademark of China.

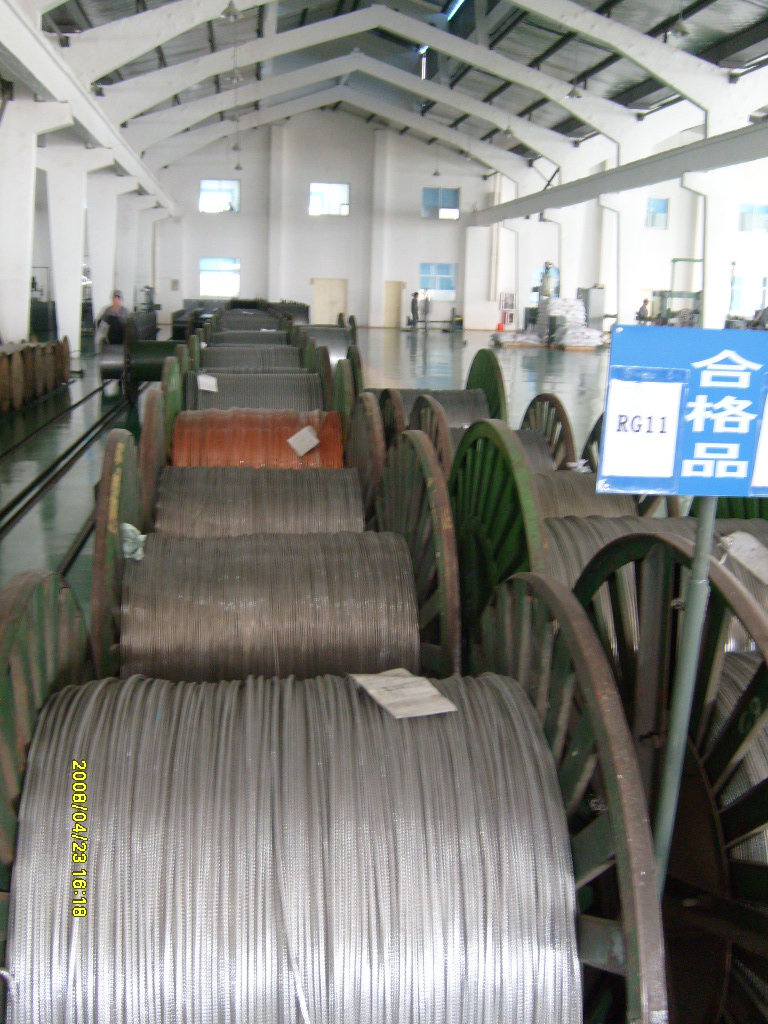

Libo Cable is subsidiary of Libo Group, it is specialized in the manufacturing of physical-foamed RF coaxial cable, seamless aluminum tube trunk cable, leaky feeder cable, solar PV ribbon and cable. With the advanced physical high-foam production lines and continuous-extruding seamless aluminum tube production lines, it now possesses the yearly capacity of 60, 000 km of coaxial cables, with the world-class quality. Products have been certified by UL and CE and exported to European and American market. The solar PV ribbon and cable makes use of the oxygen-free copper strip as the blank and it possesses the excellent electric conductivity and favorable solder ability and flexibility, which has been favored by the majority of users.
