| Prod Model: |
412 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Seamless Tube: |
Yes |
| Application: |
Coaxial Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PE |
| Certification: |
ETL |
| Type: |
CATV Coaxial Cable |
| Model: |
Rg412 |
| Brand: |
Libo |
Product Description
Detailed Product Description

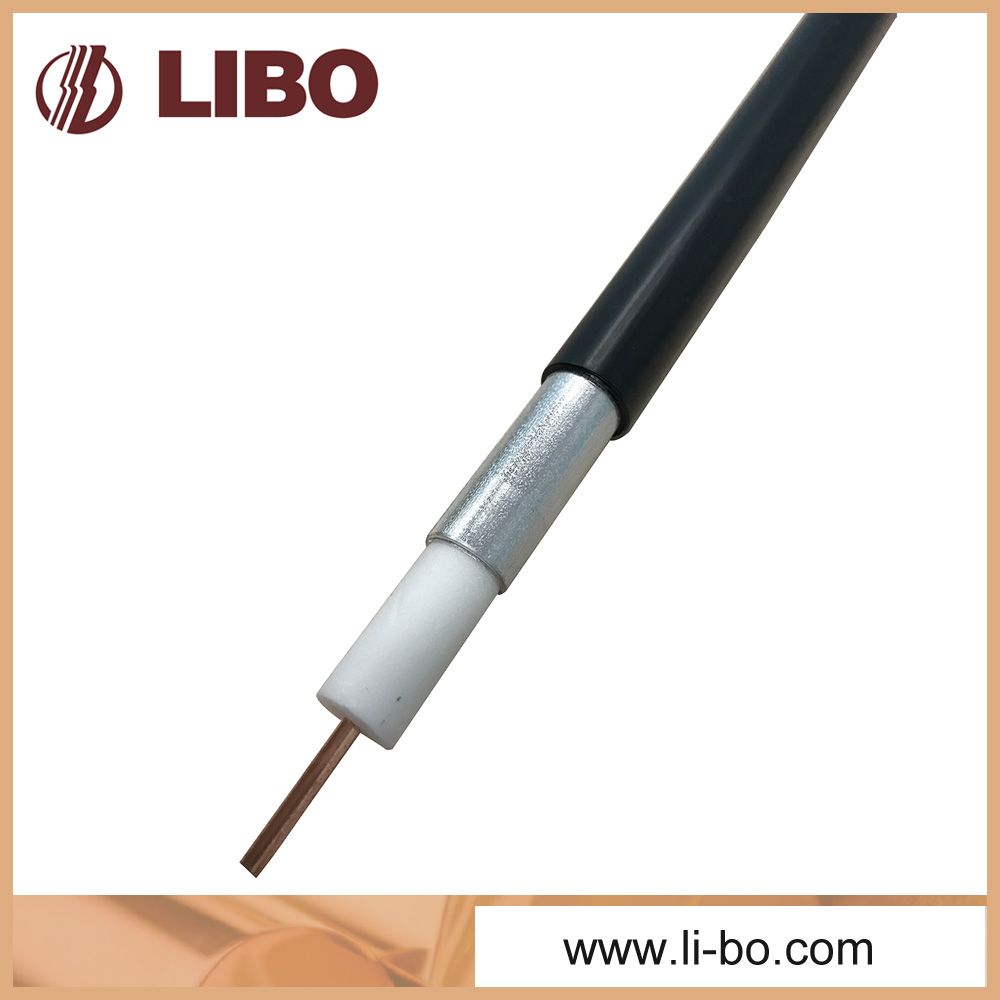

Seamless Aluminum Tube Trunk Cable 412JCA Distribution Cable For CATV Networks
Quick Details:
- Aluminum Tube Trunk Cable 412JCA
- Seamless aluminum tube as outer conductor
- Patented technology
- Over 20 years of experience
- High quality PE outer jacket
- Asphalt or flooding compound is available
Applications:
P3 412JCA trunk cable is used as main cable and distribution cable for CATV network, such as base station and equipment cabinets. It is applicable in transmission of single and duplex analog signals and as well as duplex digital signals. The trunk cable is also widely used in HFC duplex transmission network.
Product description:
This is hig quality aluminum tube trunk cable with outstanding bending radius. The inner conductor is high quality copper clad aluminum (CCA), dielectric core is produced by insulating grade virgin polyethylene, it is tightly covered by solid aluminum tube. Medium density PE is used as jacket material.
Physical dimensions |
component | inches | mm |
Inner conductor | 0.089 | 2.26 |
Diameter over dielectric | 0.362 | 9.19 |
Diameter over outer conductor | 0.411 | 10.46 |
Outer conductor thickness | 0.024 | 0.61 |
Diameter over jacket | 0.475 | 12.07 |
Jacket wall thickness | 0.0315 | 0.80 |

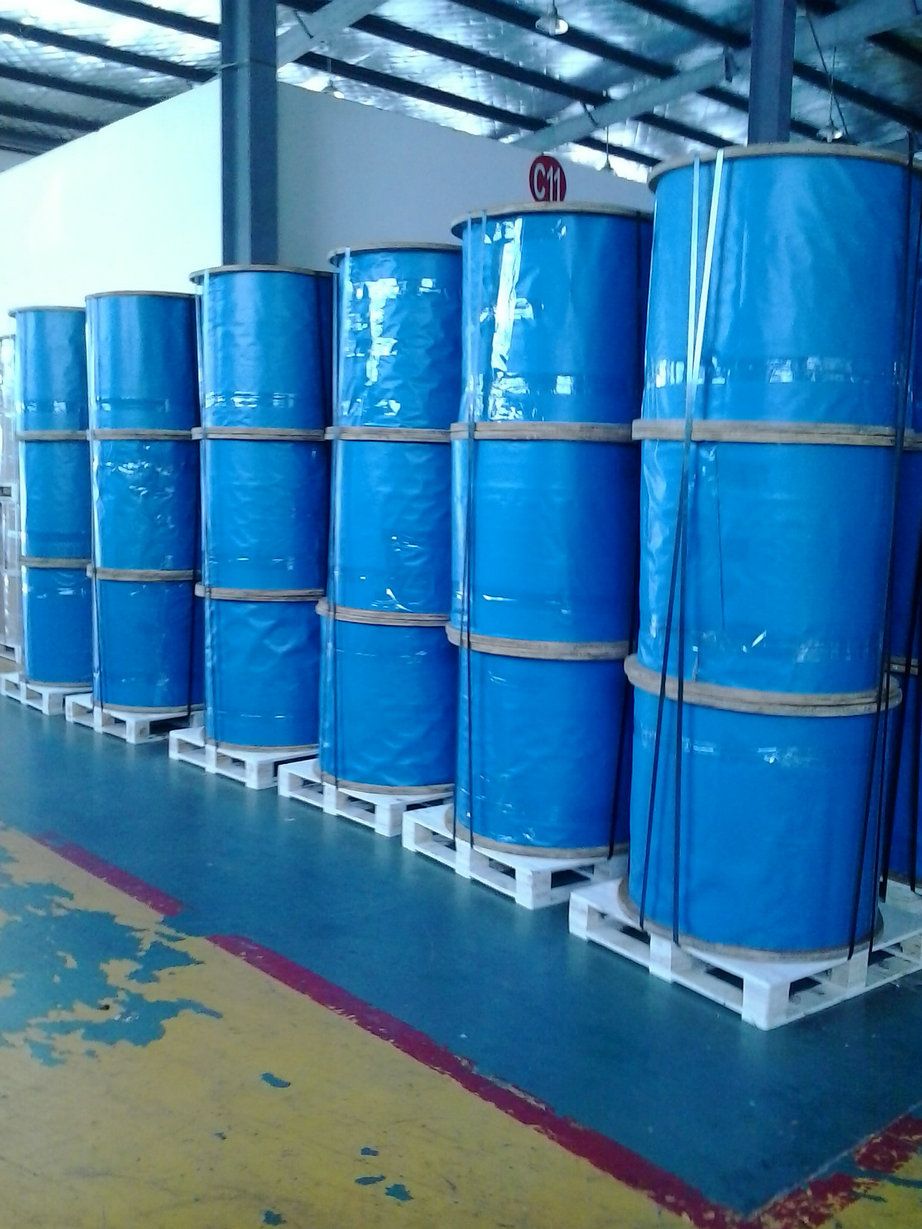

Packing:
Buyer's labels and cartons OEM/ODM desgin service is available.
Mechanical performance:
Minimum bending radius: 6.0 inches/15.2cm
Maximum pulling tension: 150lbs /68kgf
Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 87% nominal
Nominal DC loop resistance@68OF: 2.57 ohms/1000ft (8.43 ohms/km)
Attenuation@ 68OF(20oC):
@Frequency MHZ | dB/100ft. (MAX.) | dB/100 meters(MAX.) |
5MHZ | 0.20 | 0.65 |
55MHZ | 0.69 | 2.26 |
83MHZ | 0.86 | 2.82 |
211MHZ | 1.41 | 4.62 |
250MHZ | 1.54 | 5.05 |
300MHZ | 1.70 | 5.57 |
350MHZ | 1.87 | 6.13 |
400MHZ | 1.97 | 6.46 |
450MHZ | 2.11 | 6.92 |
500MHZ | 2.24 | 7.34 |
550MHZ | 2.35 | 7.71 |
600MHZ | 2.47 | 8.10 |
750MHZ | 2.78 | 9.12 |
865MHZ | 3.01 | 9.87 |
1000MHZ | 3.27 | 10.73 |
Packing:
Buyer's labels and cartons OEM/ODM desgin service is available.
Competitive Advantage:
- The trunk cable has excellent electrical performance and outstanding transmission reliabilities. Frequency is from 5MHz to 1000MHz, it provides reliable transmission and anti-interference effectiveness for duplex transmission network.
- To withstand rigors of environmental elements, jacketed burial cable or jacketed flooded cable isavailable; asphalt is added between outer conductor and jacket to prevent damages from moisture and flood.
- Libo cable was established in 1994,it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
- Libo cable developed the world's first conforming seamless aluminum tube trunk cable.
- Libo cable has a stable workforce and engineering team, the trunk cable is with short lead-time and stable high quality.
- Libo cable is equipped with a Provincial-level Research and Development Center.
