Coaxial Cable With F Connector

Prod Model:	coaxial F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Transparent, Red/Black...
Size:	for You
Connector:	F Male
Packing:	Coil
Cooling System:	Radiator
Function:	TV Cable
Materials:	CCA/ Copper
Type:	Coxial

Product Description

Hot sell F connectors coaxial cable for electronic

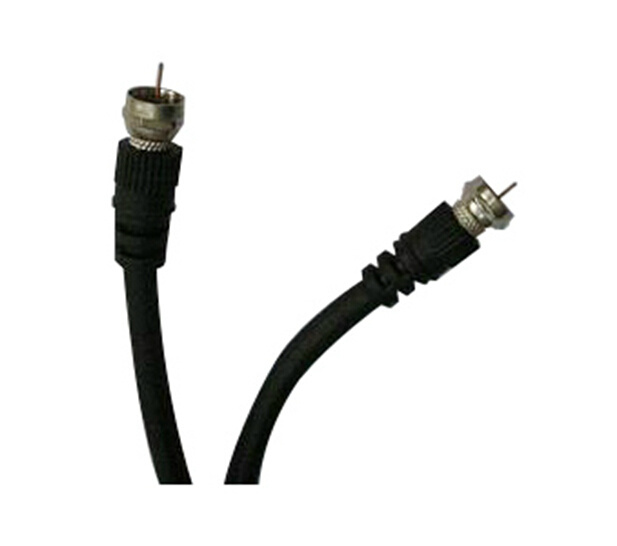

Coaxial cable with F type crimp connector F male to F male
F connectors series are economically priced connectors specially designed for use with NTSC TV ANTENNA and other similar applications. F type joining devices use for 75 Ω Cable assign system, especially CATV, broadcast television network, It can already be used for having impedance to mate the occasion required and can be used in not mating the occasion too. It is joined, inserts helping jointly that its characteristic is whorl, the price is suitable.

RG6: 1.02+-0.01mm Cu/ 5*16*0.1MM CU/ 6.8+-0.2mm PVC
RG6: 1.12+0.01mm Cu/5*16*0.1MM CU/ 6.8+-0.2mm PVC
RG11: 1.67+-0.01 mm CCA/6*16*0.12/ 10.3+-0.2mm PE
RG11: 1.68+-0.01 mm CCA/7*16*0.16/ 10.3+-0.2mm PE
RG12: 2.17+-0.01 mm CU/ 12.3+-0.2mm PE
QR500: 2.78+0.01 mm Cu/15.10+-0.2mm PE
QR540: 3.38+0.01 mm CCA/15.78+-0.2mm PE


Cable Type	Inner conductor	Insulation	Shielding	Braiding	Jacket
1.9CFB	7*0.127mm BC	1.9mm FPE	Aluminum Foil	112*0.08mm TC	3.8mm PVC
4CFB	0.8mm BC	3.7mm FPE	Aluminum Foil	64*0.16 AL	6.0mm PVC
5CFB	1.05mm BC	5.0mm FPE	Aluminum Foil	96*0.14 TC	7.5mm PVC
RG6	1.02mm BC	4.7mm FPE	Aluminum Foil	64*0.16 AL	6.9mm PVC

Packing:
100, 200, 305m/roll, 100, 200, 300 yards/roll
Other length is available according to clients' request
Inner: Wooden, plastic and paper reels are available
Outer: Carton box, pull out box, pallet are available
Other packing available according to clients' request
