Coaxial Cable

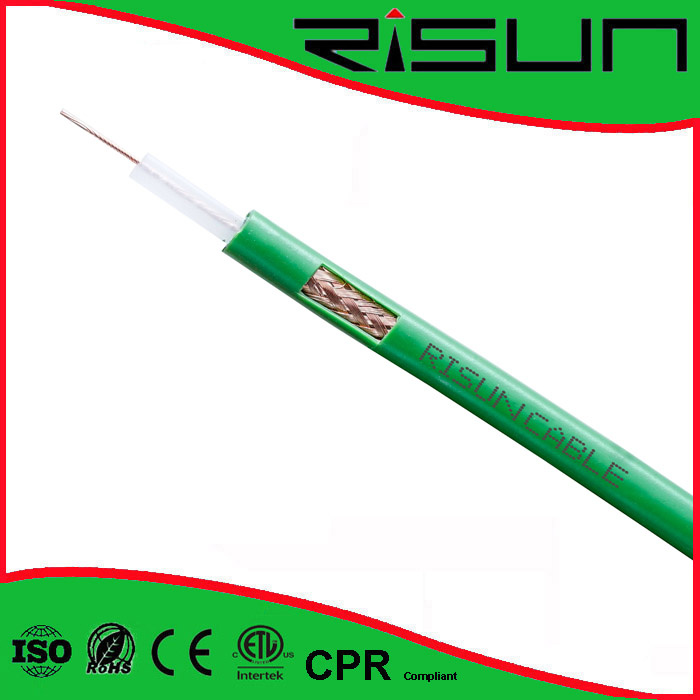

Name: Coaxial Cable
Brand: all-electronics-online.com
SKU: 731231142
Availability: InStock
Rating: 4.3 (20 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	KX6
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	ETL, CPR
Brand:	Risun

Product Description

Hangzhou Risun Cable., Ltd Linan Nanhua International Co.,Ltd 118 Datang Road, Lin'an, Hangzhou,China. Tel : +86-571-6396 0333 Http://www.risuncable.com					Coaxial cable 75 ohm KX6
CodePrepare		Prepare	Review		Approve			Effective date
								03/2016
Used as a distribution cable for indoor CATV, CCTV system and as a connection cable for satellite system where lower attenuation required

Material data					Dimension (mm)
1° -	Inner Conductor		Stranded bare copper	BC	Ø	7*0,20	±0,005
2° -	Dielectric		Solid polyethylene	SPE	Ø	3,70	±0,10
3° -	Shield		CCA braid 80%	CCA	Ø	4,18	±0,05
4° -	Sheath		PVC Color : Green	PVC	Ø	6,0	±0,10
*Electrical Specifications*
Nominal Impedance				ohm	75	+/-3		Attenuation	dB/100m
Capacitance approx				pF/m	67	+/-3		5 Mhz	1,9
Velocity ratio				%	82	+/-4		55 Mhz	5,3
								211 Mhz	10,0
								250 Mhz	10,8
Packing								270 Mhz	11,0
100 m / coil								330 Mhz	12,3
100 m / plastic reel								450 Mhz	14,4
500 m / wooden drum								550 Mhz	16,2
								870 Mhz	20,0
								1000 Mhz	21,5
								2150 Mhz	33,5

Cable environmental characteristics
Working temperature			-30ºC + 60ºC					Issued by RISUN CABLE
Storage temperature			-30ºC + 70ºC

Hangzhou Risun Cable Co., Ltd. Specializes in manufacturing high quality Network-Cable, Telephone wire, and coaxial cable from China. Our company is located at west suburb of Hangzhou, providing convenient access to Shanghai.

Our main products are UTP/FTP Cat5e, CAT6, Telephone Cable, Coaxial Cable, Alarm cable, Patch cord etc. We implement a mature quality control system, ensure that all of our products are certified CE, which certifies that a product has met European Union health, safety, and environmental requirements, and RoHS, ISO9001. In addition, we also supply OEM service to our international clients.

We welcome your visiting to our company. And hope we can be your faithful cable supplier in China and cooperate with you in a long term. If you are interested in our products, please contact us through E-mail, fax or telephone. We will certainly pay close attention to your inquiry and reply you in time.
