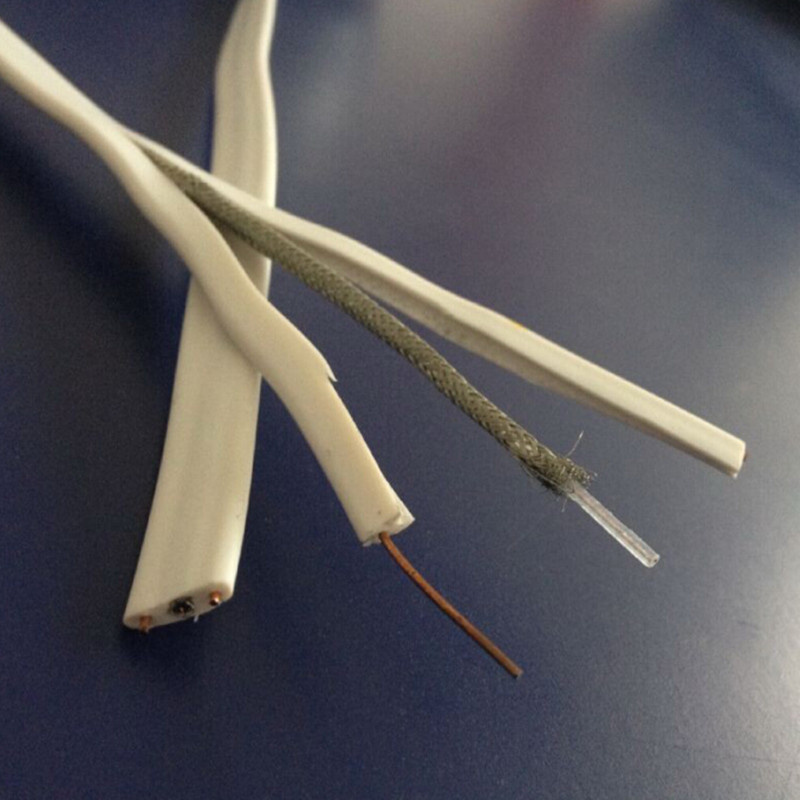

Coaxial Flat Cable for Window / Wall

Name: Coaxial Flat Cable for Window / Wall
Brand: all-electronics-online.com
SKU: 752032845
Availability: InStock
Rating: 4.4 (145 reviews)

Price:	US $ 0.01-2/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Flat Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Bc
Insulation:	Solid PE
Shield:	Double Shield
Jacket:	PVC
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial

Product Description

75 Ohm CCTV/ CATV Coax Cable Flat Cable1.5C mainly designed for door, windown, wall pass.

This 75 Ohm flat coaxial cable can be fixed with kinds of connectors,such as F,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to existing and next generation TV network and security monitoring and control systems. All of our products are RoHS compliant.
1). Flat coaxial jumper cable for easy and safe door/window/wall feedthrough.

2).3GHz low loss design supports HDTV, CATV & Satellite applications.

3).Truly coax cable inside, Return Loss:20dB. Impedance:75Ohm

4). Cable thickness:3mm.

5).Cable Length:1m,3m, 5m... can be made as per customer's requirements.

6). Water proof F type connector fixed on both ends of cable.
7).Cable jacket color can be made as per customers' requirements
8).Lead time: Within 2 weeks.

Flat Cable 1.5C
Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper		0.25
Dielectric	Solid PE		1.50
First Shield	Bonded Aluminum Foil		1.65
Second Shield	Tinned Copper Wire Braid		2.00
Inner Jacket	PE		2.60
Support	Steel Wire		0.8*2
Outer Jacket	White PVC		10*.29

Electrical Characteristics		Attenuation @20ºC (dB/M)
Impedance(Ω)	75	@500MHz	0.65
Velocity of Propagation(%)	66	@600MHz	0.72
Return Loss(dB)	≥20	@800MHz	0.85
VSWR(dB)	≤1.22	-----	-----
Shielding Effectiveness(dB)	≥75	-----	-----
Operating Temperature(ºC)	-25 to +70	-----	------

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

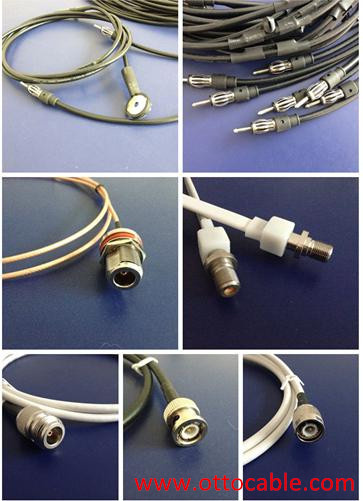

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
