Name: Coaxial Teflon Cable Electirc Cable
Brand: all-electronics-online.com
SKU: 696890885
Availability: InStock
Rating: 4.6 (60 reviews)

Price:	US $ 0.2-2/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	SFF SFB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Coaxial Cable
Conductor Material:	Copper
Type:	Cat 2
Certification:	RoHS
Cover Material:	Teflon
Model:	Sff Sfb
Brand:	Werle

Product Description

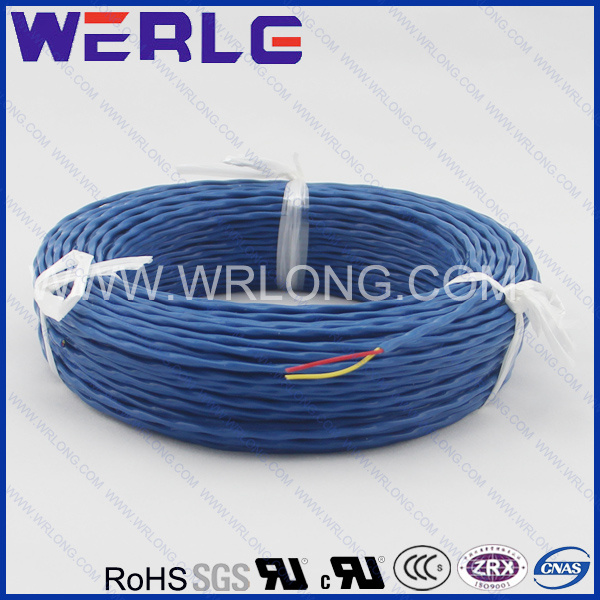

Coaxial Teflon Cable Electirc Cable
Use Range:
It is used as the coaxial cable in radio wave transmission of radio communication, broadcast

Use Temperature:
Type SFF: -50 Degree to +200 Degree
Type SFB: -50 Degree to +250 Degree

Detailed specification, please refer to the attached picture.

Conductor		Over Diamter mm	Packing mt/coils
Nominal section mm2	Conductor Construction No./mm	Over Diamter mm	Packing mt/coils
0.12	7/0.15	0.79	500
0.20	7/0.20	0.97	500
0.30	7/0.23	1.10	500
0.35	19/0.15	1.15	500
0.50	19/0.18	1.32	500
0.75	19/0.23	1.59	200
1.00	19/0.26	1.78	200
1.20	19/0.28	1.88	200
1.35	19/0.30	2.00	200
1.50	19/0.32	2.08	200
2.00	19/0.37	2.34	200
2.50	19/0.41	2.55	200
3.00	19/0.45	2.81	100
4.00	37/0.37	3.13	100
6.00	37/0.45	3.72	100
10.00	84/0.39	5.80	100
16.00	126/0.39	7.00	100
20.00	126/0.40	8.00	100
25.00	196/0.40	8.80	100

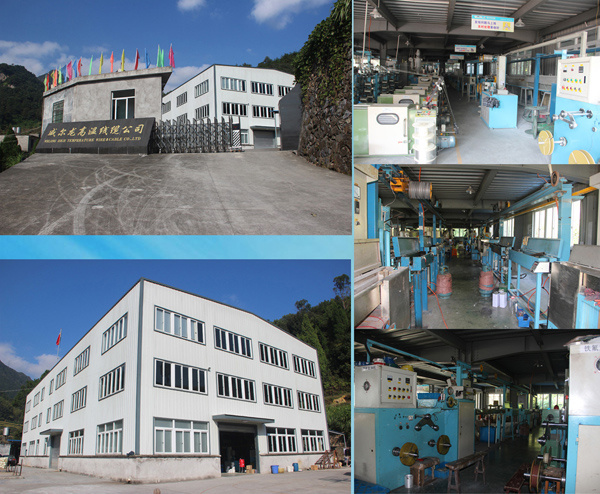

ZHEJIANG WRLONG HIGH TEMPERATURE WIRE & CABLE Co., Ltd is a modernized enterprise which has specialized in high-temperature wire and cable for many years. It locates in the biggest production base of low-voltage appliance in China_YUEQING CITY, ZHEJIANG PROVINCE and it is next to OUJIANG rivers whose throughput is beyond thousands of ton every day as well. It is obvious that its transportation or traffic is very convenient and expeditious.

Our company owns the most advanced production equipment in China at present and we have imported the direct inverter microcomputer-controlled production line device from England. It has all sorts of detection device, abundant funds and trained professionally technicians as well.

Our leading products contain the teflon wire and cable which is used in Aerospace and Astronautics and high - temperature wire and cable which contains the fluoropolymers. Its types have AF46-200, AFK-250, AFPF-200, KFFR-250 and so on. Our company also produce high-temperature precise compensating conductor and its types are KX, KC, BC, SC, EX, IX, TX, NX, NC, EX and so on.

Our products have passed the certification of ISO9001-200, CCC, RoHS, UL and other test reports for the products from relevant organizations or institutions with the persistent efforts of all of the staff in WERLE and the products can find a ready market all over the world.

Our company sticks to regard the technology as guide, quality in pursuit of development as management ideas, quality create famous brands as tenet and thinks highly of quality management of the products in order to realize the integration of production, detection, selling and service and internationalization of the markets.

Society developping and make progresses gradually, WERLE strives with pressure, explore with urgence, struggle with blueprint and contend with smile for better future with the new and old clients together!
