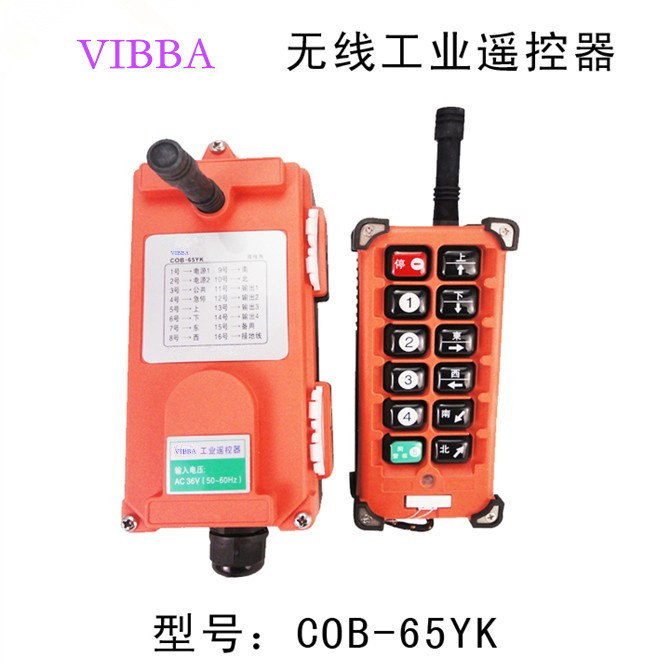

COB Series Wireless Industrial Remote Control, COB-65yk

Name: COB Series Wireless Industrial Remote Control, COB-65yk
Brand: all-electronics-online.com
SKU: 692811912
Availability: InStock
Rating: 4.6 (124 reviews)

Price:	US $ 99.2-108.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	COB-65YK
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	16.47.54.6 Cm
Weight:	320 G
Material:	Plastic
Transmission Distance:	50-100m
Battery Type:	AA Battery
Certification:	ISO9001
Universal:	Universal
Signal Transmission:	RF Remote Control
Application:	Industrial Machinery
Type:	Button
Voltage:	3V

Product Description

Basic Info.

Model No.: COB-65YK
Trademark:VIBBA /OEM
Quality: Superior quality
Application: Industrial Machinery
Remote control distance: Up to 100 meters
Operating Temperature: -35ºC---+80ºC
Source Voltage: 380V/220V/36V
Warranty time: One year

Product Description

Features

1. Advance program design, quick & good performance on movements.
2. IP65 water/shock/dust proof.
3. Low-power design: 1.5 volt battery*2 PCS
4. The shell adopts durable glass fiber stucture.
5. Super wide range of operating tempretures:-35ºC--+80ºC
6. Self inspection and don't repeat the 32-bit indentification No.
7. Operating distance ranges up to 100-150 meters.
8. With 12 action button,a stop button,11 single speed button
9. It can be widely used in various industrial equipment.

Transmitter
Technical date:
Operation distance: 100 meters
Temperature: -35ºC--+80ºC
Power supply: 1.5V(AA)*2 PCS
Enclosure: IP65
Consumption: <17mA(stand by: <20mA)
Address code: 4.2billions sets
Size:16.4*7.5*4.6 cm
Weight: 320g

Receiver
Technical data:
Antenna: Internal type
Temperature: -35ºC--+80ºC
Source Voltage: 380V/220V/36V
Enclosure: IP65
Consumption: <12W
Security Code: 4.2 billions sets
Size:18.5*8.5*8.5 cm
Weight: 550g

Power-On steps:
1. Power-on receiver
2. Switch the power switch to ON, and turn on the mushroom.
3. Press any button and release, now is ready to operate(now receiver powder LED light is green)

Power-Off steps:
1. Push down the mushroom.
2. Switch off transmitter power to cut off the power.

Installation Notes:

1. Ensure the original wired control of crane works.
2. Shut down crane main power source before installation.
3. Mount in a firmed side where the receiver can be seen easily by operator.
4. Keep away the mounted side from motors relays, cables, high voltage wiring and devices, or the protrusion of building where crane moves, select firmed side without metal shield.
5. Do not install the other same channel remote controller within 50M.
6. Ensure the wiring layout correctly and safely
7. Test each function to be sure each out put has the same function as wired control
8. Put the wired pendant in safe position.
