| Prod Model: |
OBD II GPS Tracker GPS306A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Weight: |
50 |
| Shock Sensor: |
Yes |
| Warranty Time: |
12 Months |
| Arm Alarms: |
Acc, Shock Sensor |
| Packaging: |
50 Unit /Carton in Standard Color Box |
| Delivery Time: |
2-3 Business Days |
| Request For OBD Data By SMS: |
Fuel Monitor, Mileage, Engine Status Diagnostic Tr |
| Backup Battery: |
Chargeable 3.7V 200mAh Li-Battery |
| Easy To Install,Wireless: |
Internal GPS&GSM Antenna |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Screen Size: |
No Screen |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
306 |
| Brand: |
Coban GPS Tracker |
| Chip: |
No |
| Certification: |
ISO9001 |
Product Description

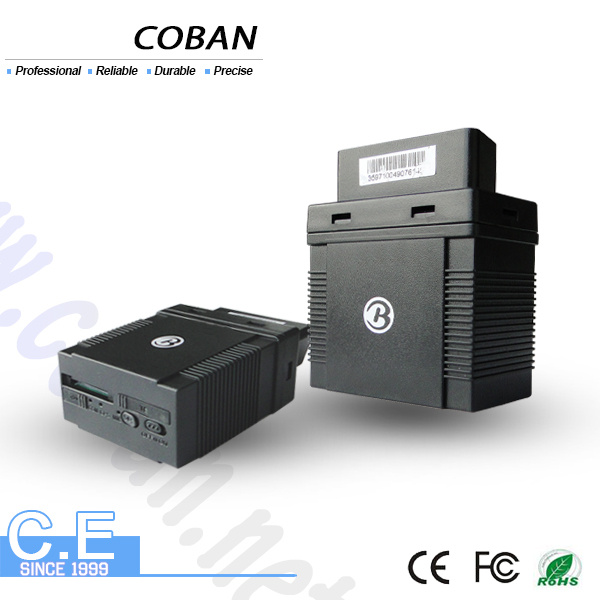

Coban Car OBD II GPS Tracker with Mileage report and Diagnostic
Contact details
Attn:Winni Zhou
Shenzhen Coban Electronics co., Ltd
website:www.coban.net
Tel: +86-755-26509579. Mobile:0086 180 2691 1931( )
*Track by SMS with latitude and longitude
*Real track by SMS on PDA Cell phone with the maps link.
*Android IOS app tracking, you can find Android IOS app QR code in web platform www.gpstrackerxy.com

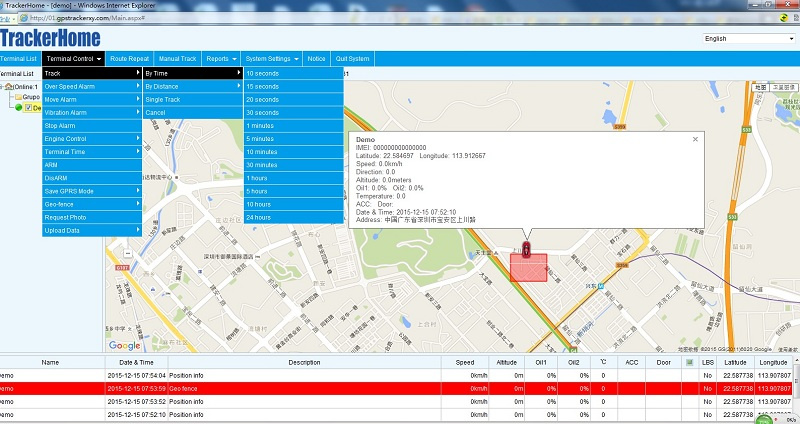

*Web based online tracking on PC at our server www.gpstrackerxy.com.( ID demo , password 8888)
Basic functions: 1.Vehicle OBD II tracker (9-40V)
2.Location based service(LBS) + GPS double real time tracking solution Monitor
3.SOS panic button
4.Geofence,movement,overspeed alarms.low battery, ext.power off alarm.
5.Alarms under ARM :Shock/ACC alarms.
6.
Request for OBD data by SMS: Fuel measurement
fuel consumption
mileage
speed
engine status
Diagnostic Trouble Codes,etc
Vehicle maintenance notification 7.Notification of Vehicle fault nd maintenance notification
8.multi power-saving mode :
Sleep by time / shock sensor
deep sleep
awake at specific time
9.Save GPRS traffic mode
10.Built-in memory for 16,000 positions
11.Built-in 200 mA polymer battery
12.SMS tracking on cell phone with google map link
13.Absolute street address by SMS
14.Web server, Mobile phone APP

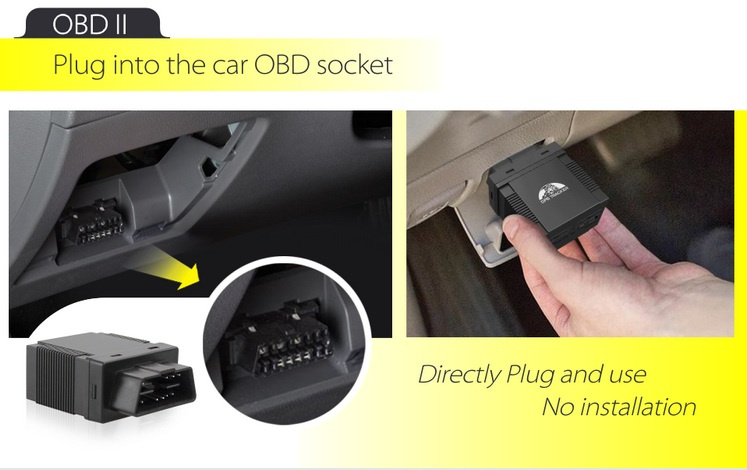

TK306 installation
Specifications
Content |
Specification |
DIM |
64.5*50*27mm |
Weight |
60g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS Sensitivity |
-165dBm |
GPS Accuracy |
5m |
GPS Start Time |
Cold status 30s
Warm status 11s
Hot status 1s |
Backup Battery |
Chargeable changeable 3.7V 200mAh Polymer Li-Battery |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +70°C |
Humidity |
5%--95% non-condensing |
Warranty
1. All products have been strictly Quality Checked in house before packing.
2. All products have been well packed before shipping.
3. One year warranty is provided for all models. We will bear maintenance cost during warranty.
Delivery
1. Sample and small order will be delivered within 2-3 working days after the receipt of payment.
2. For order over 500pcs or customized order, lead time will be 5-7 days after the receipt of payment. Please contact our sales to make sure the current inventory .
FAQ
Q:What is the MOQ?
A:500pcs for your own available designs
Q:Can i mix different designs
A:NO
Q:Can i get a lower price if I order large quantities?
A:YES,cheaper prices with more bigger size orders
Q:Can i get the pre-production sample ?
A:yes ,for OEM order,it is ok to send samples for confirmation before mass
production
Q:When you ship my order ?
A:Normally 3-5days after receiving deposit,but it can be negotiated based on order
qty and production schedule

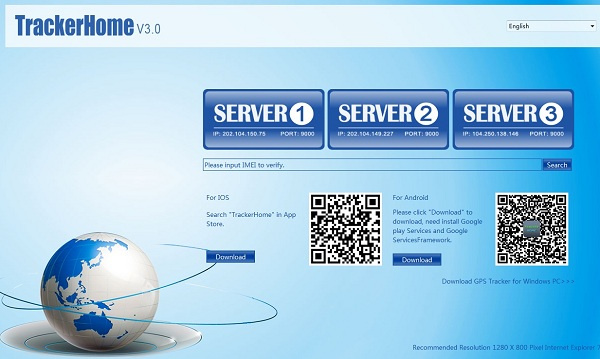

Android IOS App tracking
Shenzhen Coban Electronics Co., Ltd is a private export-oriented enterprise founded in 1999, 90% of the products are exported, and we have many years of research and development, production and management experience in automotive electronics, security products, wireless communications terminal equipment, and other fields.
As a high-tech enterprises, we have a strict management system, and have obtained the authentication of CCC, CE, FCC and UL ISO9001, etc. So far, our products have been well marketed in 107 countries and regions in the world. Our company has set up research and development centers, including GPS R & D department, GSM R & D department and system integration Department. All the products are developed independtly and obtained a number of national patents. So the professional R D team, efficient production team provide good foundation with high-quality products. Quality has always been part of the company's most stressed. Before all the products entering the market, they have been tested rigorously such as high and low temperature aging test, vibration test, the noise tests, audio and video indicators decomposition tests.
Our company specialized in GPS tracker, car anti-theft alarm system.
Except the advantage of abundant in human resources, since we count on long standing business relationships, we deserves wide range of cooperation with the well-known Chinese and foreign high-tech companies and service in the long term. In order to meet the developing of the markt, our aim is to transform the latest and the best research fruit into productive quickly, develope science and technology, serve the society.
