| Prod Model: |
gps tracker tk103b |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Network: |
GSM/GPRS |
| GSM Network Frequency: |
850/900/1800/1900 |
| Accuracy: |
5 Meters |
| Power: |
12-24V |
| Tracking Solution: |
SMS, GPRS Web Platform, Android Ios APP Tracking |
| GPS Accuracy: |
5m |
| GPS Sensitivity: |
-159dBm |
| Free Tracking Software: |
Www.Gpstrackerxy.COM for One Year Free |
| Main Functions: |
Real Time Tracking, Engine Shut, Arm/Disarm etc |
| Map: |
Real Time Google Map |
Product Description

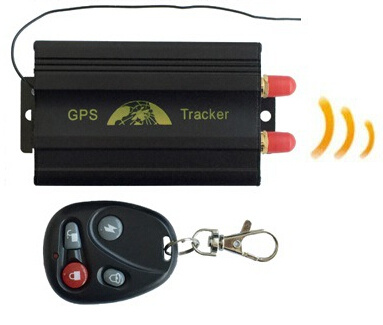

Coban GPS car tracking device with mobile app tracking(tk103B)
Model: GPS103A/B
GPS Tracker,which set multiple functions of accurately positioning,security, monitoring surveillance, emergency alarms and tracking in its entirety,special for vehicle.
The product fully supports the functions of SMS / GPRS / Internet data transmission,to make it more widely used in large-scale monitoring, emergency scheduling, location-based services, traffic safety and many other areas of management.
Detailed description
It is based on GSM/GPRS(850/900/1800/1900MHZ)wireless telecommunication internet and GPS satillite global position system,track by multi tracking ways:
No1 .Basic functions:
1. GPS + Location based service(LBS)
2, Real time tracking via SMS or GPRS (TCP/UDP)
3, Track on demand by calling or sms comamnd
4, Show location directly on mobile phone with HTTP google map link
5, Track by time and distance interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, Low battery alarm
10, Power off alarm
11, SOS button for emergency
12, Geo fencing control
13, Overspeed Alarm
14, Engine -cut and restore alarm by SMS GPRS
15, Door, ACC alarm get by SMS
16, Movement alert sensor
17. 3-axis accelaration sensor
18. With direction and heading value
19. Optional shock/impact sensor
20. Abosolute street function
21. Smart track upon time and distance interval
22. Automatic update positions of vehicle turns
23. GPS drift suppression
24. Data logging
25. Forward third parties message to authorized phone number
26. charge inquiry
27. Multi area management
28. Accident alarm(Option)
29. ACC working alarm
30. Configure parameters by USB
31. Less GPRS traffic
32. GPS blind spot alarm
33. Fuel sensor(option)
34 Sleep mode fuction
35. Decide how many alarm message to be sent
NO2. Applying directions:
Vehicle fleet/logistics/Vehicle rental (12-24V)
No3.Specifications
Content |
specifications |
DIM. |
83*54*26mm |
Weight |
120g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS Sensitivity |
-159dBm |
GPS Accuracy |
5m |
GPS Start time |
Cold status 45s
Warm status 35s
Hot status 1s |
Voltage of car power system |
12 V -24V
|
Backup battery |
Chargeable 3.7V 800mAh Li-ion battery |
Storage Temp. |
-40°C to +85°C |
Operation Temp. |
-20°C to +65°C |
Humidity |
5%--95% non-condensing
|
NO4.
FAQ - Frequently Asked Questions
How do I make sense of the longitude and latitude data this unit provides?
Both Google Maps and Google Earth can easily translate the data into usable visual information.
The unit does not pick up a GSM signal and the SMS functions aren't working,
What's wrong? A number of things could cause this to happen:
1) Make sure the SIM card is compatible (only 2G, 2.5G, 2.75G SIM cards work
2) Make sure there is money left on the SIM card and that it has not expired
3) Make sure there is no PIN code associated with the SIM card
4) Make sure roaming is enabled on your SIM account if you are in a different country
Can I install the software on multiple computers?
No. Each tracker's IMEI number is unique and can only be used to setup the software on one computer once and ONLY ONCE, which means you can only use the software on that computer exclusively after successfully set it up. This is due to the security requirements of the software and the product.
